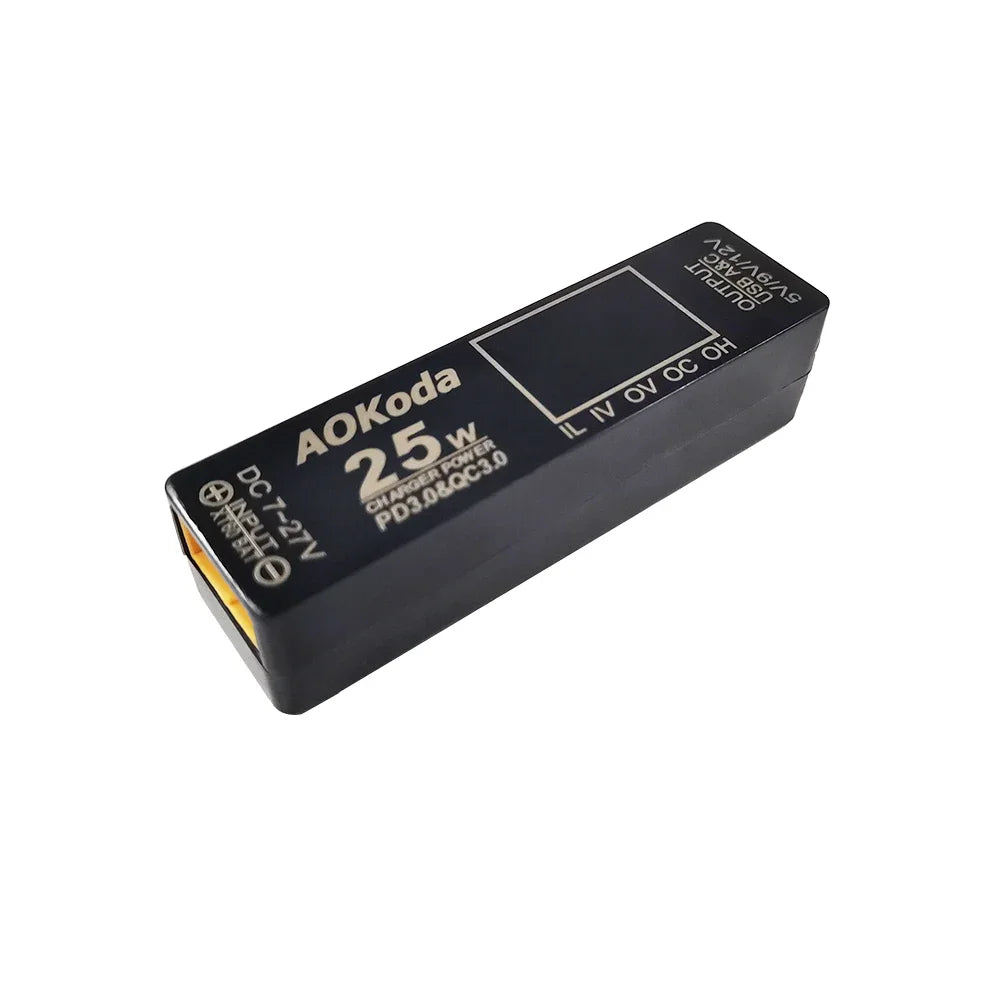

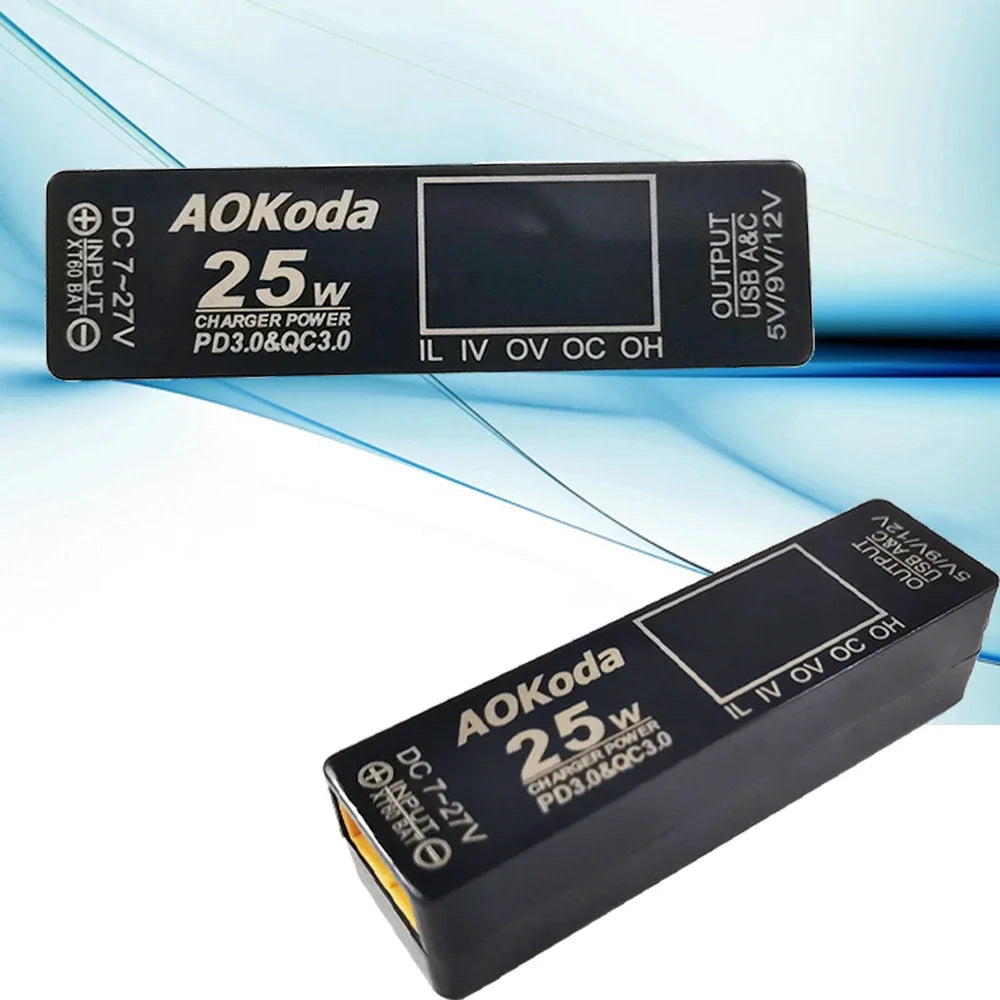

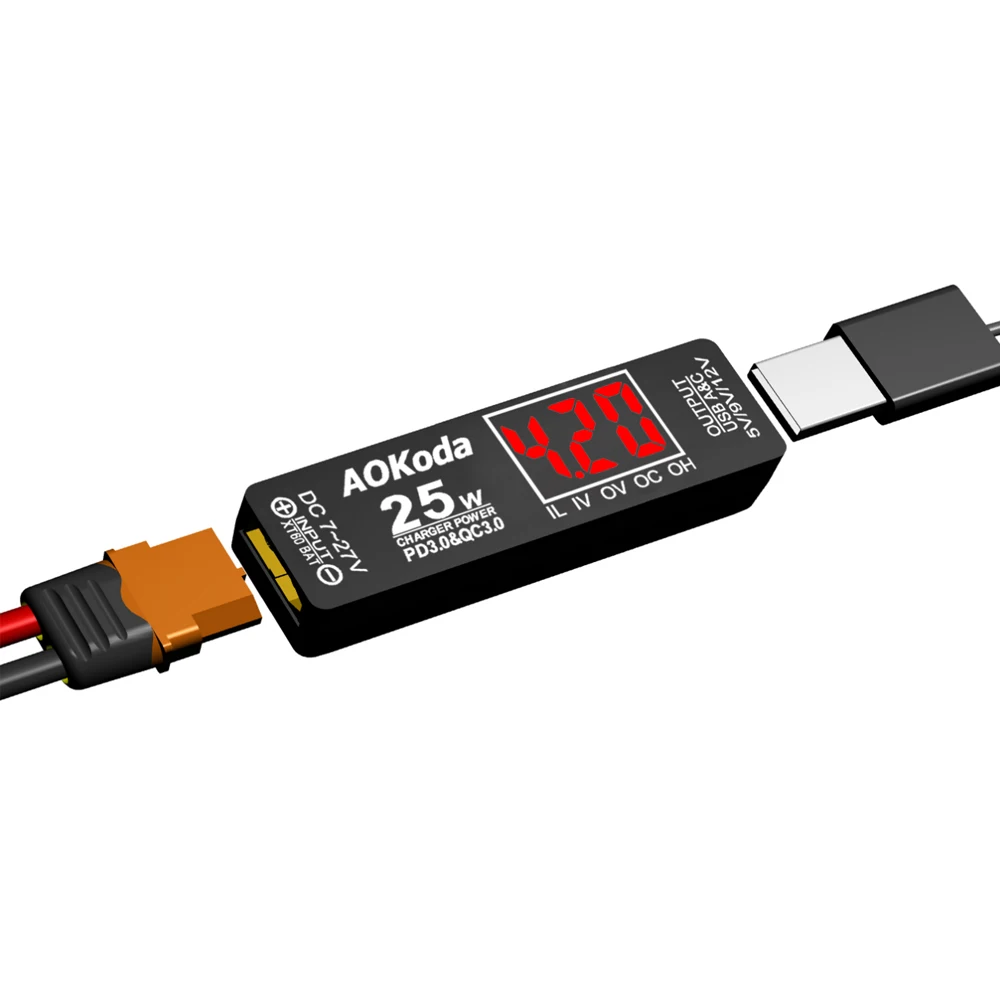

AOKoda PD3.0&QC3.0 xt60 Quick Power Converter Lipo Battery To USB Adapter

USB-A+USB-C :Power Max 25W , Current Max 3.1A.

3. Support multi-protocol fast charging adaptation for Apple/Android devices such as PD3.0/PD2.0/QC3.0/QC2.0/FCP/AFC.0.36 inch red digital tube display,display input battery voltage,USB output voltage,USB output current.

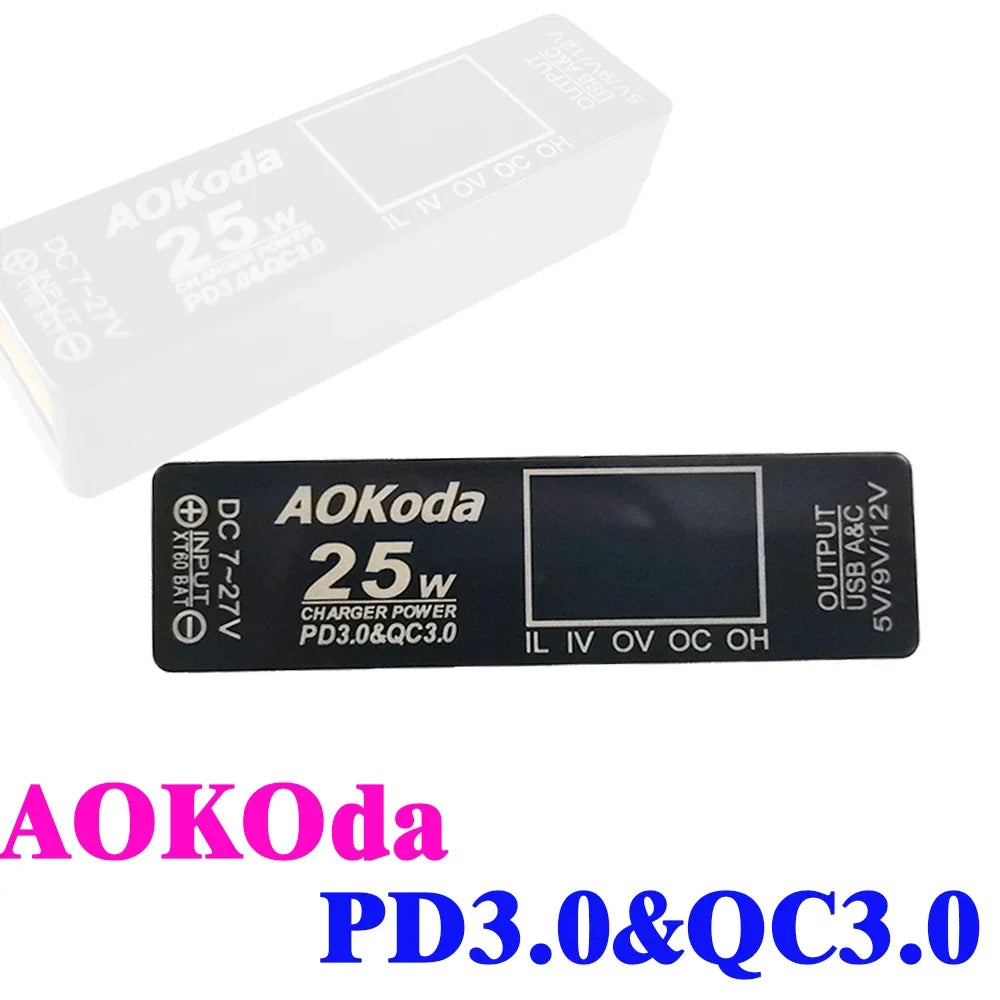

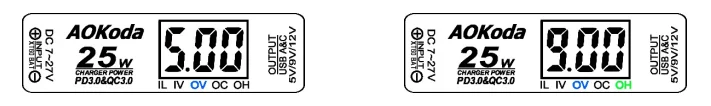

4. 5pcs LED indicate IL (Input Low Voltage),IV (Input Voltage),OV (Output Voltage),OC (Output Current), OH (Output High Voltage Quick Charge ).

5. Intelligent judgment of the number of input lithium battery cell strings, and intelligent setting of over discharge protection voltage value.

6. Support users to set lithium battery power supply mode or other battery power supply modes (DC). The low-voltage protection value of lithium battery mode automatically identifies the number of battery strings and low-voltage protection value (customizable by users). Other battery power supply modes can manually set low-voltage protection values.Quick Charge port provides higher power charging to all Quick Charge compatible devices,Smart port identifies devices'(iPhone/iPad/Android) charging protocols to deliver fastest charging speed.

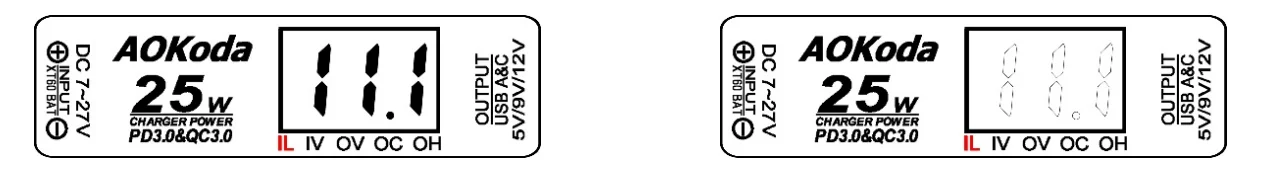

7. The real-time round robin display screen shows the number of battery strings, input voltage, output voltage, and output current; The fast charging high voltage output has an independent green LED indicating the status; When the battery is input for low voltage protection, a red indicator light flashes and the display screen flashes to display the triggered low voltage protection value.

8. USB charging port precise current limiting output, overload protection, short circuit protection, overvoltage protection, and over temperature protection.

9. Apple fast charging: PD3.0, supporting the entire range of iPhone 8~15/SE/Plus/Pro/ProMax; The full range of iPads.

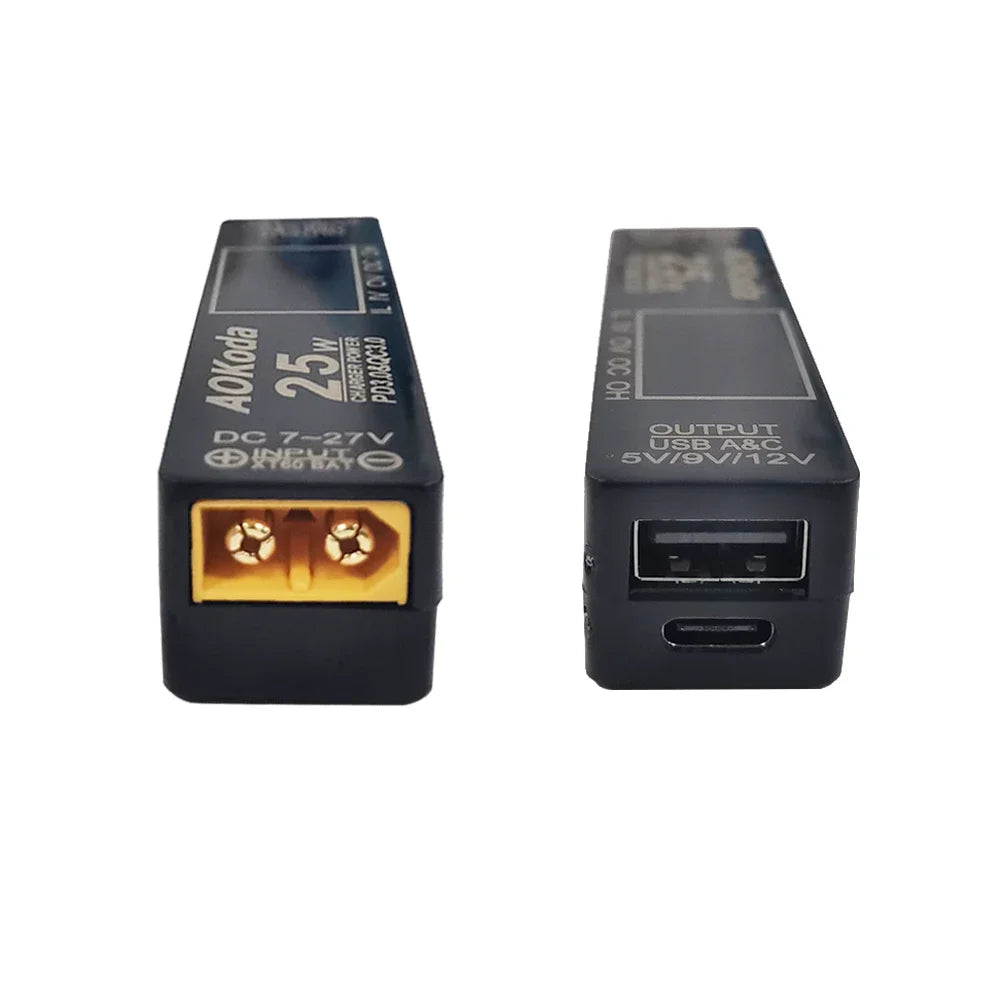

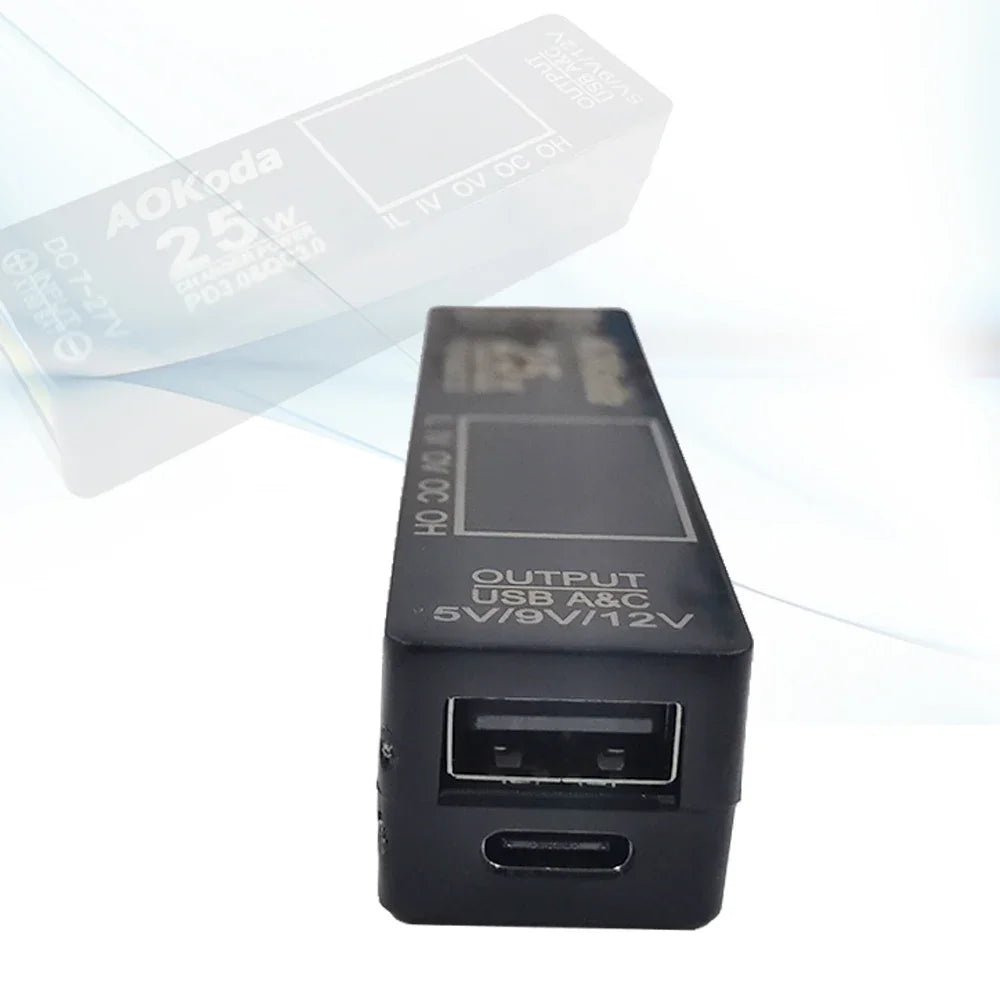

10. Supports USB Type-A and Type-C dual port working modes, with fast charging for independent operation. At the same time, the fast charging is automatically turned off and switched to 5V/3.1A output mode during operation.

11. When the USB Type-A port is connected to the Apple charging cable but not connected to the Apple phone, the Type-C port still has fast charging (PD3.0+QC3.0 dual fast charging protocol).

12. USB Type-A Supports:QC2.0/3.0/QC3.0+ class A,AFC, FCP and LVSCP/HVSCP,BC 1.2 DCP,Apple 5V 2.4A,PE 1.1+.

13. USB Type-C Supports:PD3.0,QC2.0/3.0/QC3.0+ class A,AFC, FCP and LVSCP/HVSCP,BC 1.2 DCP,Apple 5V 2.4A,PE 1.1+.

14. Support voltage compensation function for USB cable impedance and USB connector impedance, which can detect the charging current value in real-time to adjust the cable compensation value. The maximum dynamic compensation

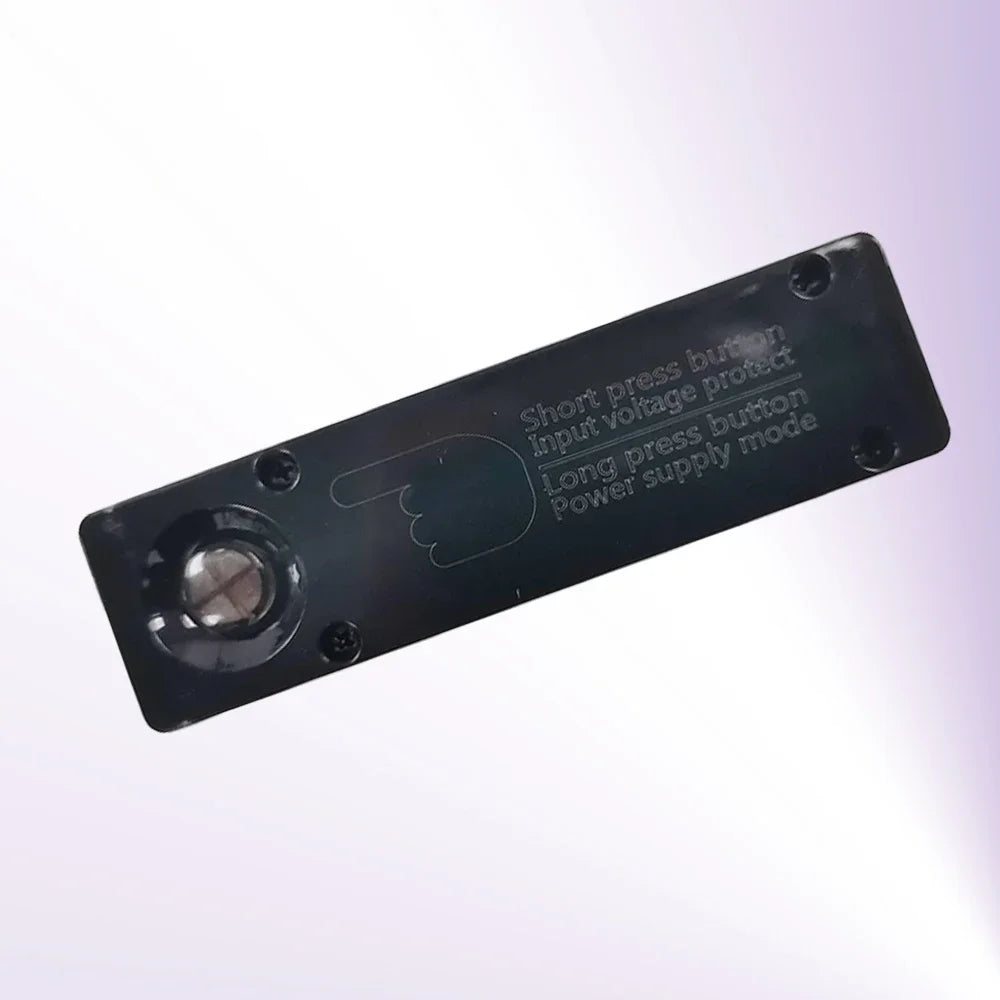

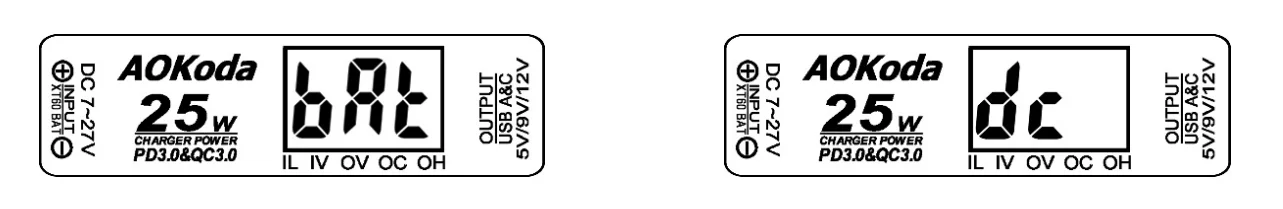

1. Power input mode setting Long press the settings button at the bottom, the digital tube will flash to display BAT or DC,press the settings button at the bottom, you can switch between two modes of BAT and DC,press the settings button at the bottom to confirm saving the power mode

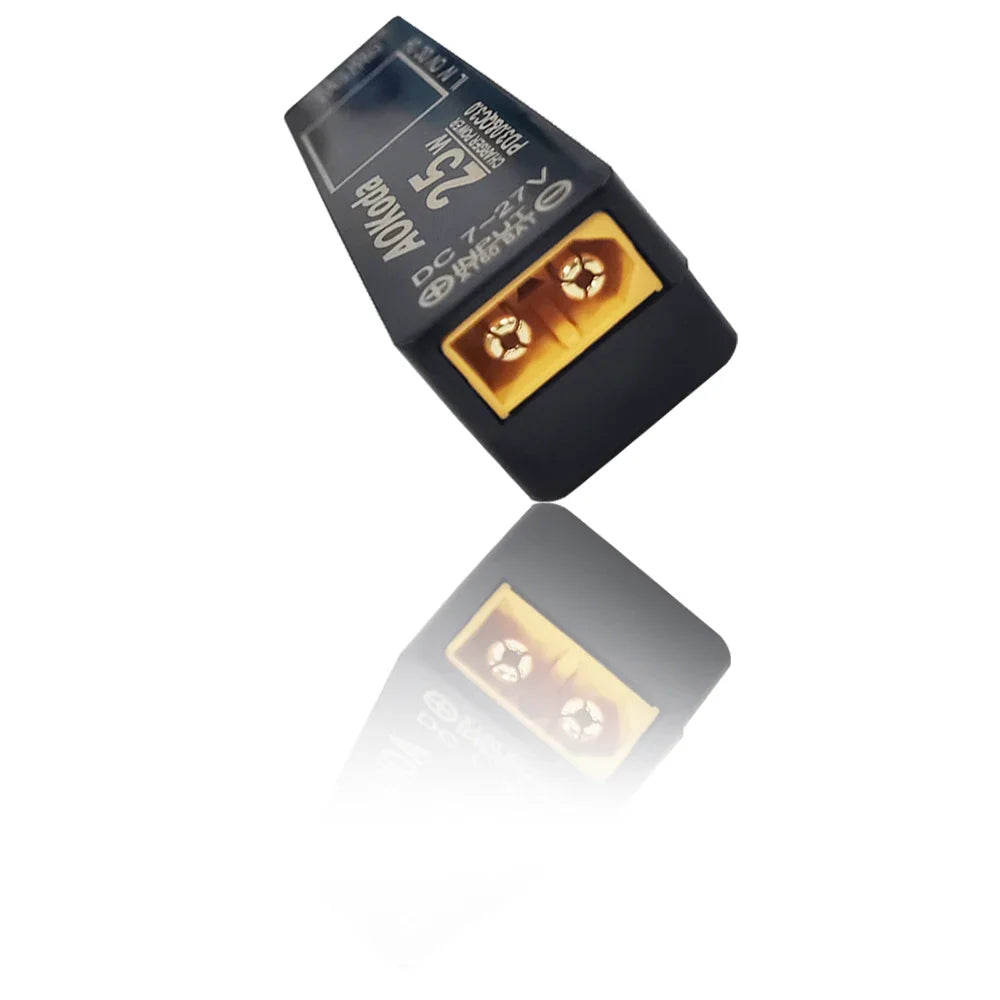

BAT:battery mode,the XT60 interface connects the battery, In this power mode,the charger will intelligently identify the number of batteries, intelligent setting low voltage protection value, prevent battery over discharge of XT60 interface, the low voltage protection value can also be manually adjusted under this mode.

DC:dc power supply or other types of battery power supply need to set low voltage protection mode manually, the XT60 interface is connected to an

adapter or other type of battery(Non lithium battery types, such as Pb,NiCd,NiMH),this mode allows low voltage protection to be set manually.( When the car cigarette lighter is powered,the low voltage protection function prevents the automobile battery from discharging).

Press the settings button at the bottom,the digital tube flashes to indicate the current low voltage protection value, press the settings button at the bottom again,adjustable low voltage protection value,after completion of adjustment, the screen flashes 3 times low voltage protection value, automatically save the current flashing low voltage protection value, and quit Setup Mode to return to work mode





3. "OC / 2.0A" indicates the usb charger output real-time current value of



1. In order to charge the device more quickly, the USB output voltage will compensate for the line voltage drop based on the current real-time charging current, with a maximum voltage compensation value of 0.6V; The voltage value displayed on the display screen is the voltage value inside the charger after compensation, not the actual voltage value received by the charging device. Therefore, a high voltage value displayed on the display screen is a normal phenomenon and can be used with confidence.
2. The charger adopts a synchronous buck working mode, and the input voltage must be greater than the output voltage (Vin Vout>2V) to stabilize the output voltage; When using fast charging modes such as PD3.0 or QC3.0 for charging, only when the input voltage is greater than 11V can a stable 9V fast charging voltage be output; If the charged device supports a voltage of 12V, the input voltage of the charger is greater than 14V in order to output a stable fast charging voltage of 12V
