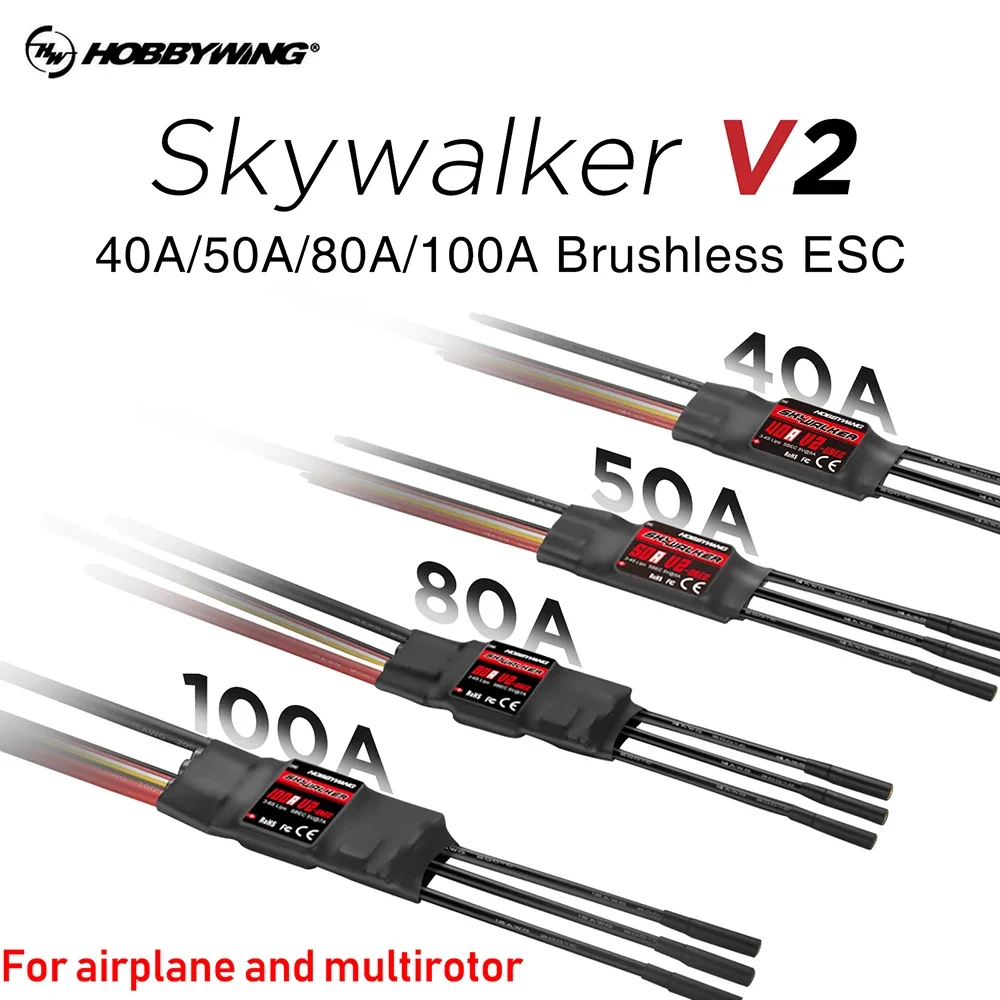

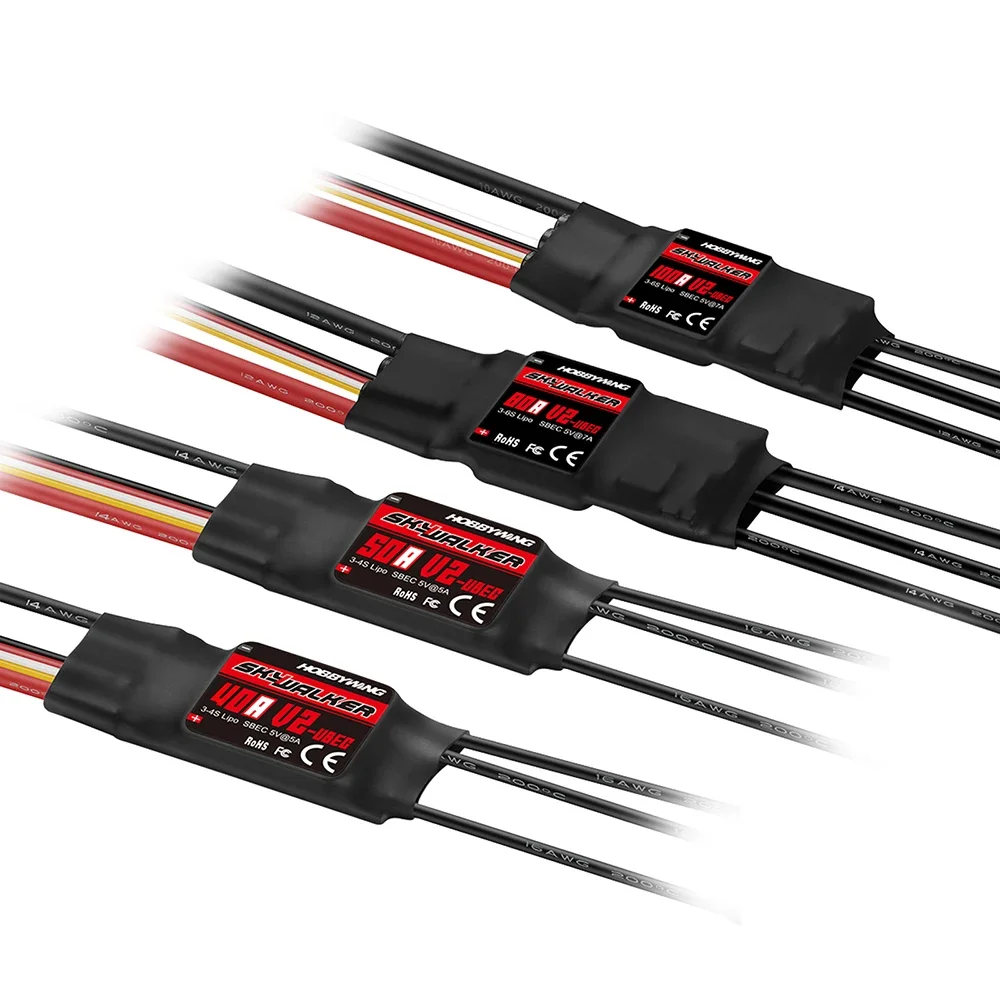

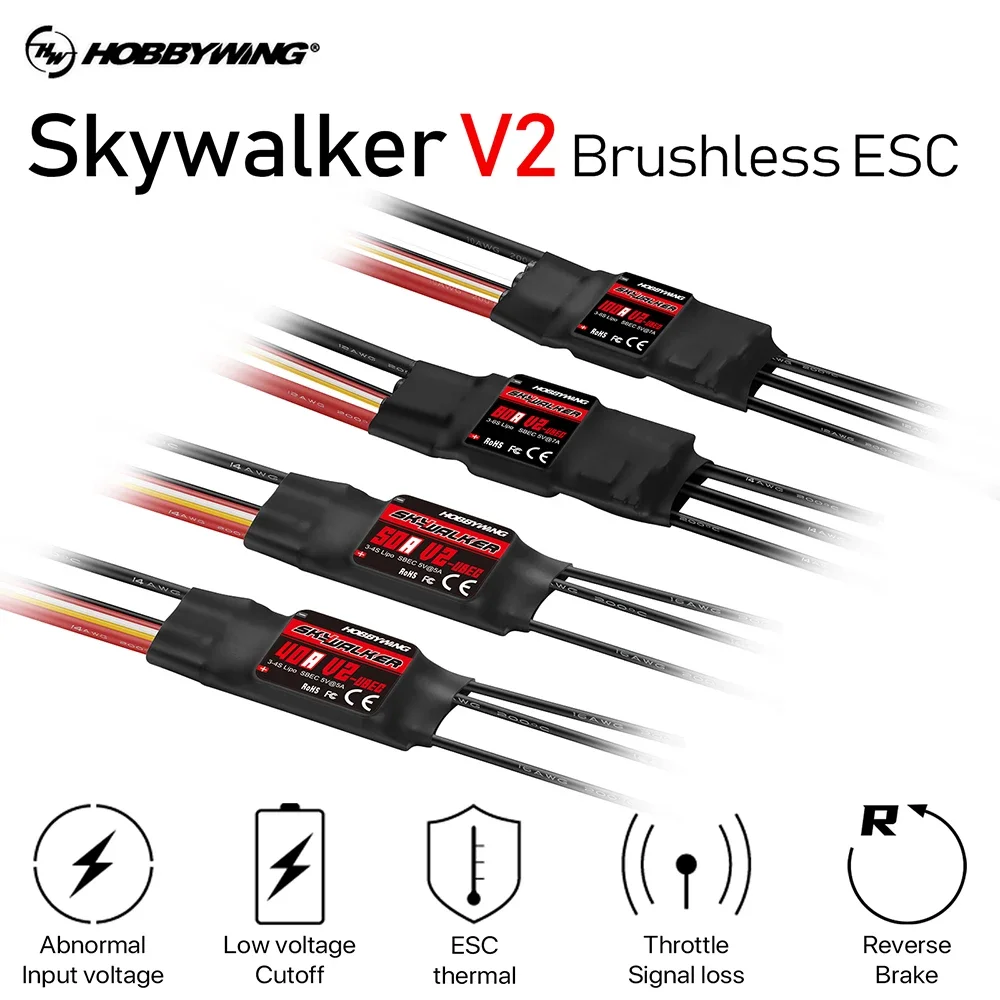

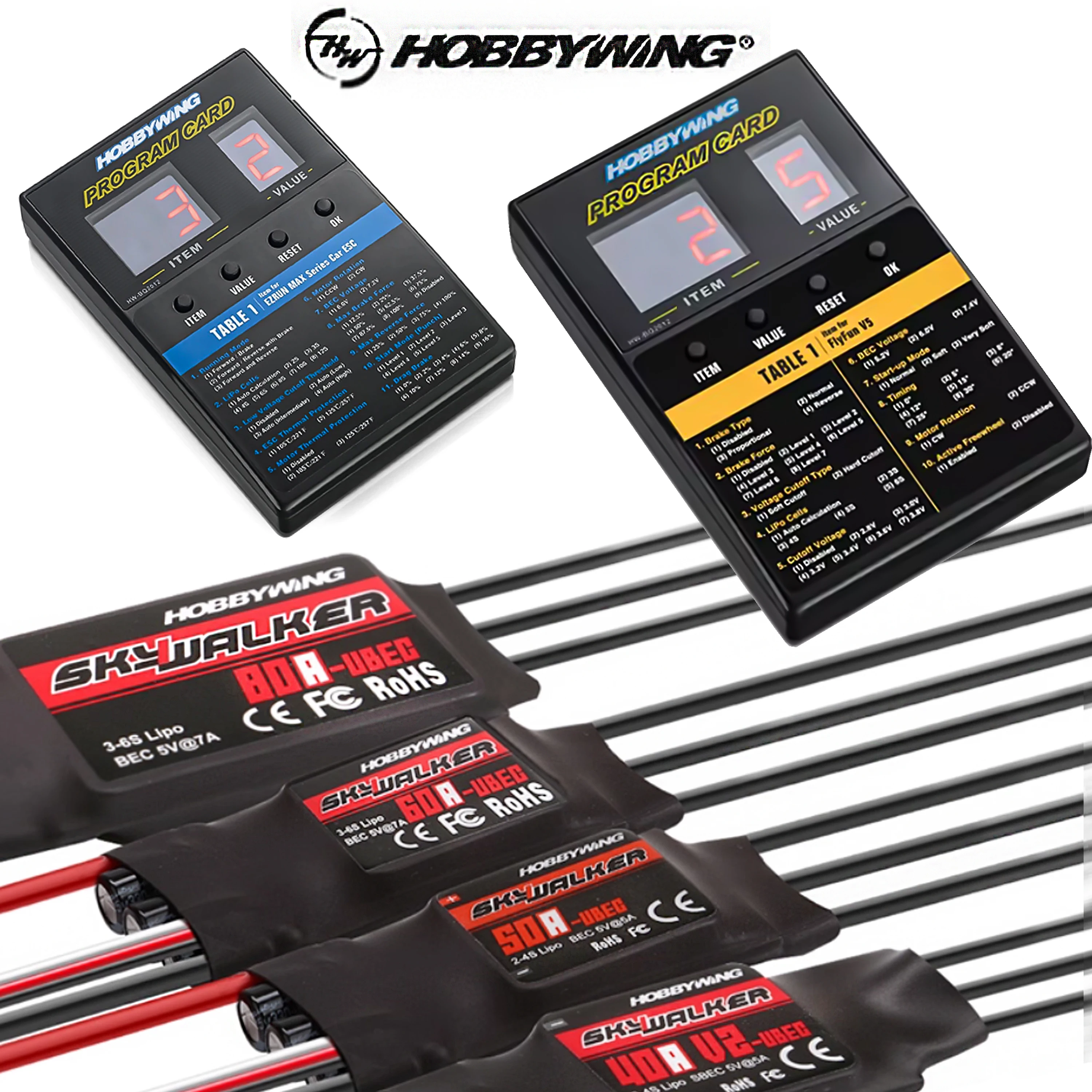

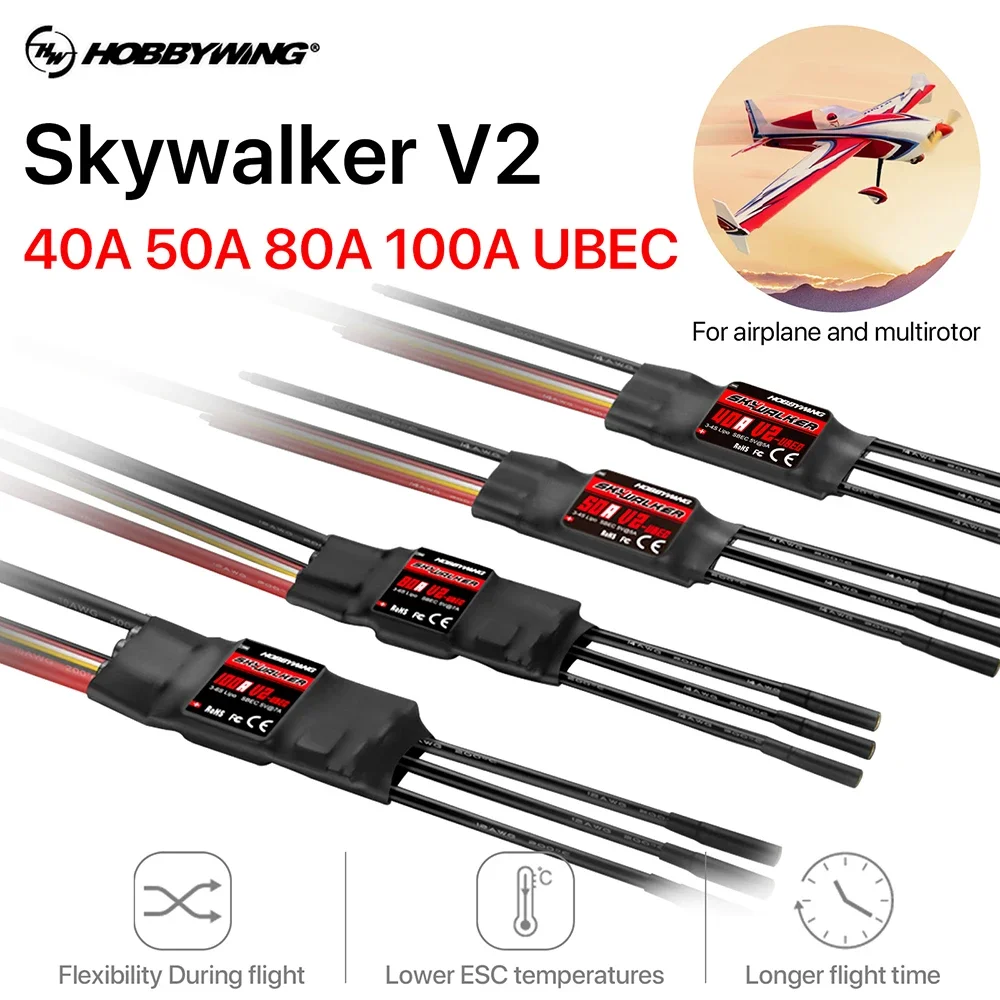

Hobbywing Skywalker 40A 50A 60A 80A 15A 20A 30A 100A 120A V2 ESC Speed Controller With UBEC For RC Airplanes Helicopter

Skywalker 20A 30A 40A 50A V2: with 3.5mm banana plug

Skywalker 60A 80A 100A: with 4.0mm banana plug

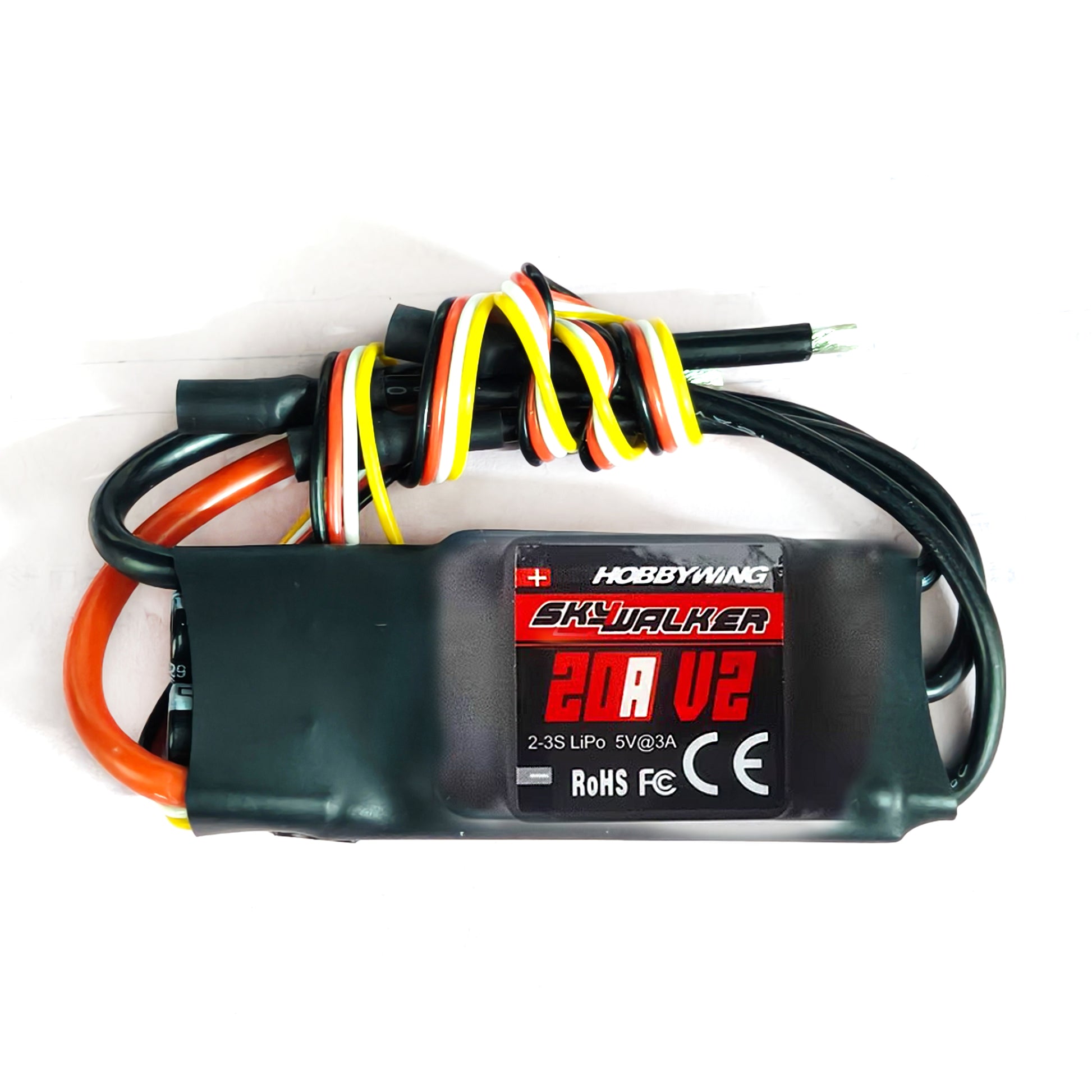

20A:

Model: Skywalker-20A

Continuous Current: 20A

Burst Current (>10s): 25A

BEC Mode: Linear

BEC Output: 5V2A

BEC Output Capability: 5 Servos (2S Lipo) / 4 Servos (3S Lipo)

Battery Cell: 2-3S (Lipo) / 5-9 cells (NiMH)

Net Weight: 19g

Dimension (L x W x H): 42 x 25 x 8mm

Cable length: 25cm

Package size: 12.5 * 11 * 2.5cm

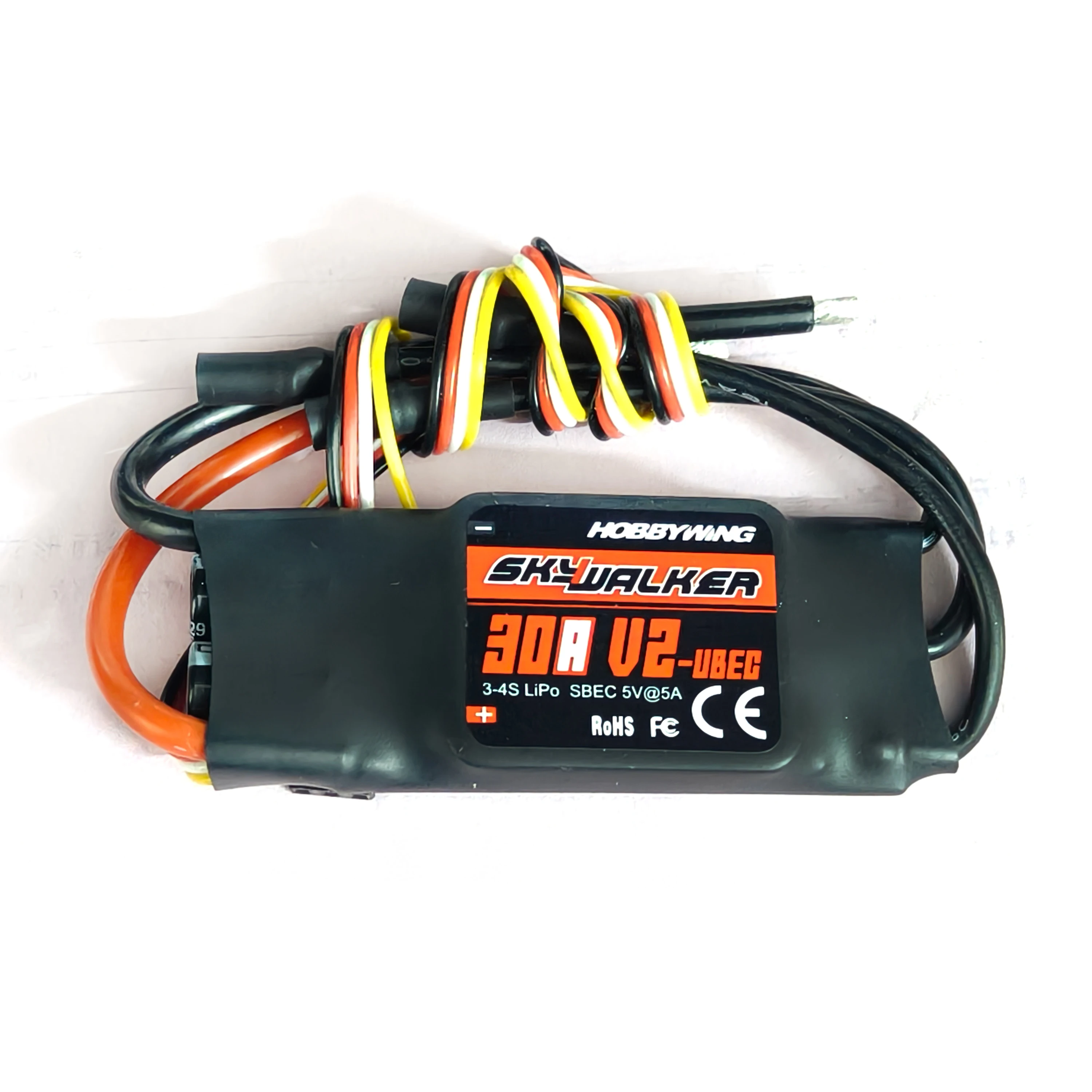

30A:

Constant Current: 30A

Peak Current:40A(10s)

Voltage: 2-3S lixx

BEC: Yes

BEC Output: 5V/2A

Color: black

Programmable:Yes

Size: 70*25*8mm (not including cable length)

Net Weight:38g

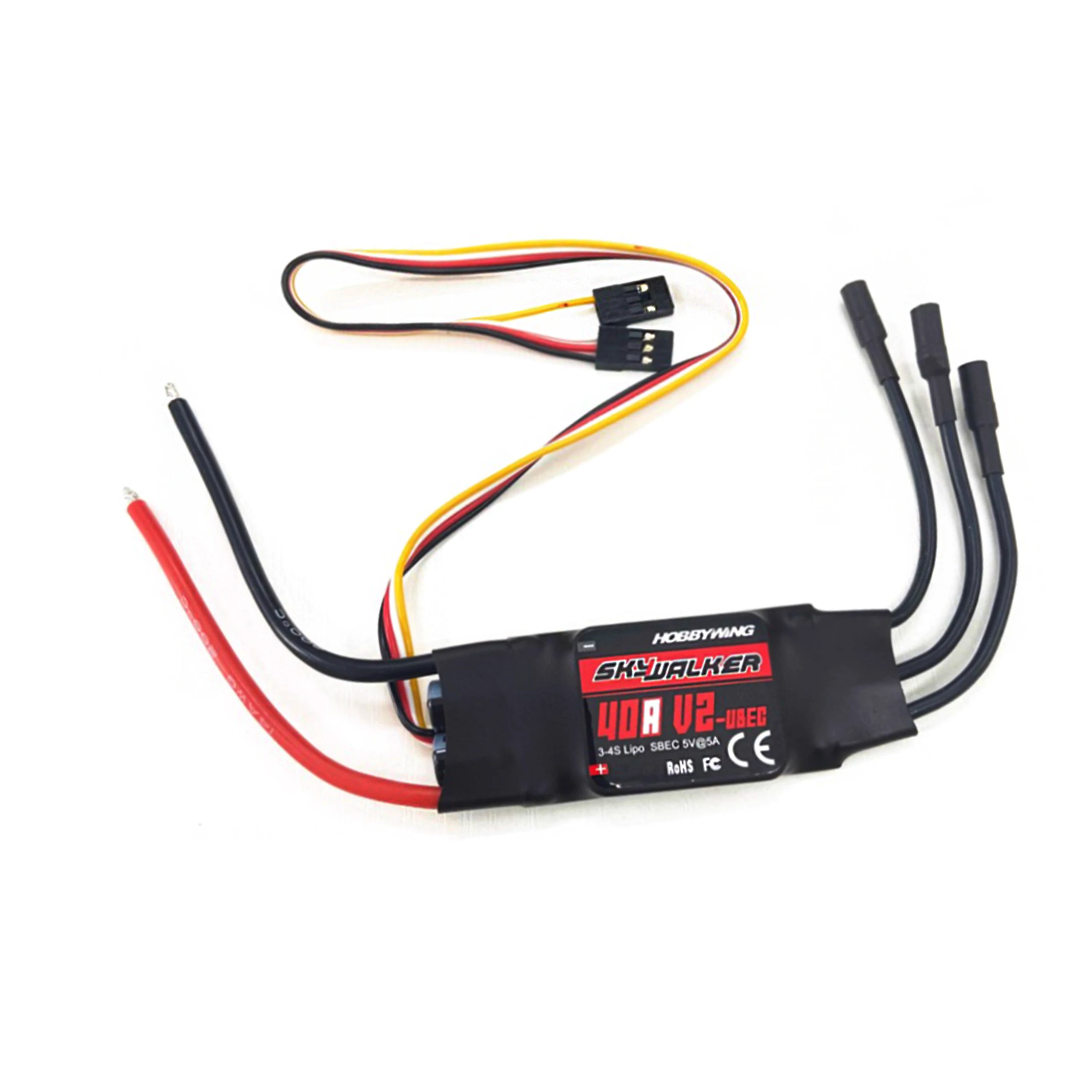

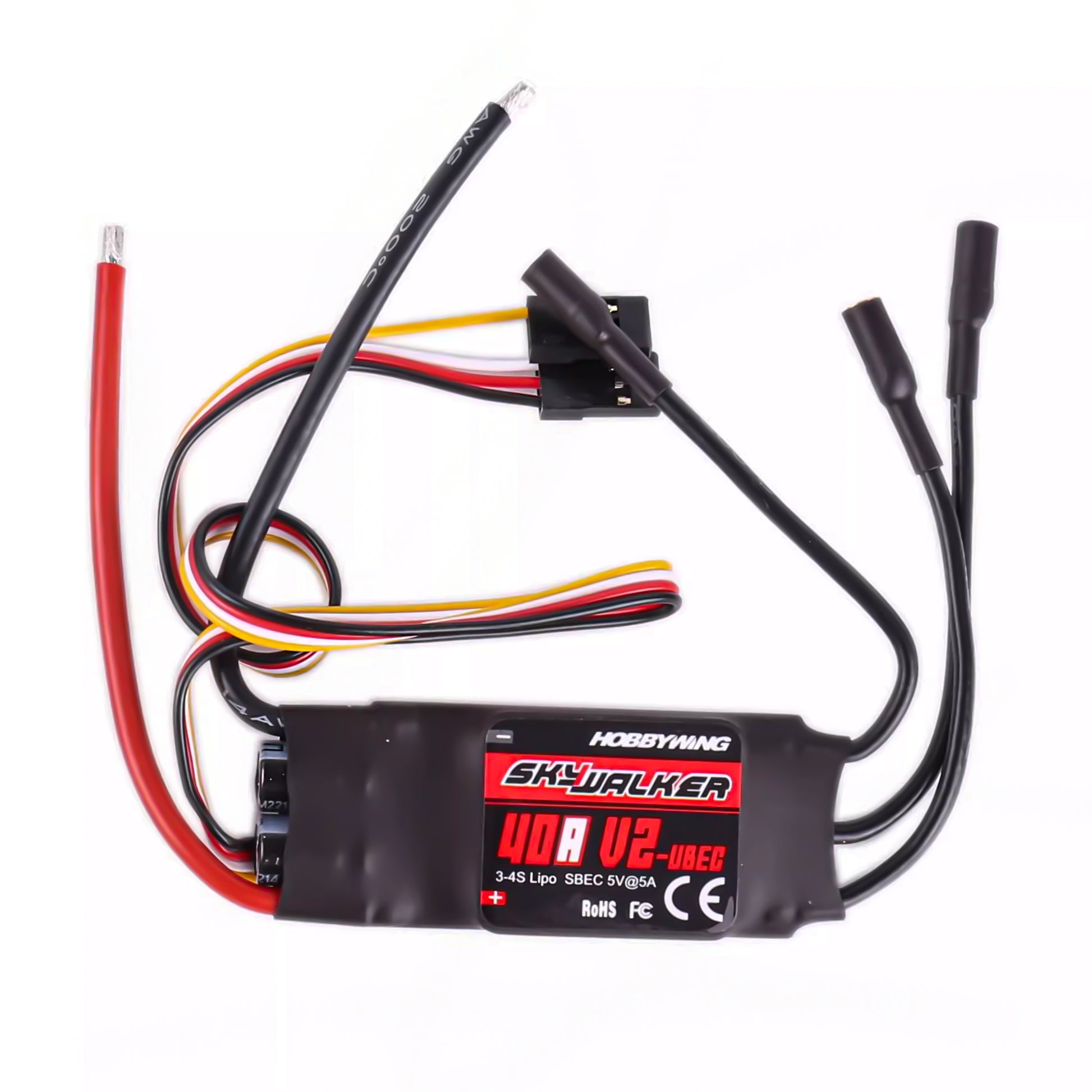

40A V2:

Model: Skywalker-40A V2 UBEC

Continuous Current: 40A

Burst Current (>10s): 55A

BEC Mode: Linear

BEC Output: 5V5A

BEC Output Capability: 5 Servos (3S Lipo) / 4 Servos (3S Lipo)

Battery Cell: 3-4S (Lipo)

Net Weight: 35g

Dimension (L x W x H): 68 x 25 x 8mm

Backward thrust:YES

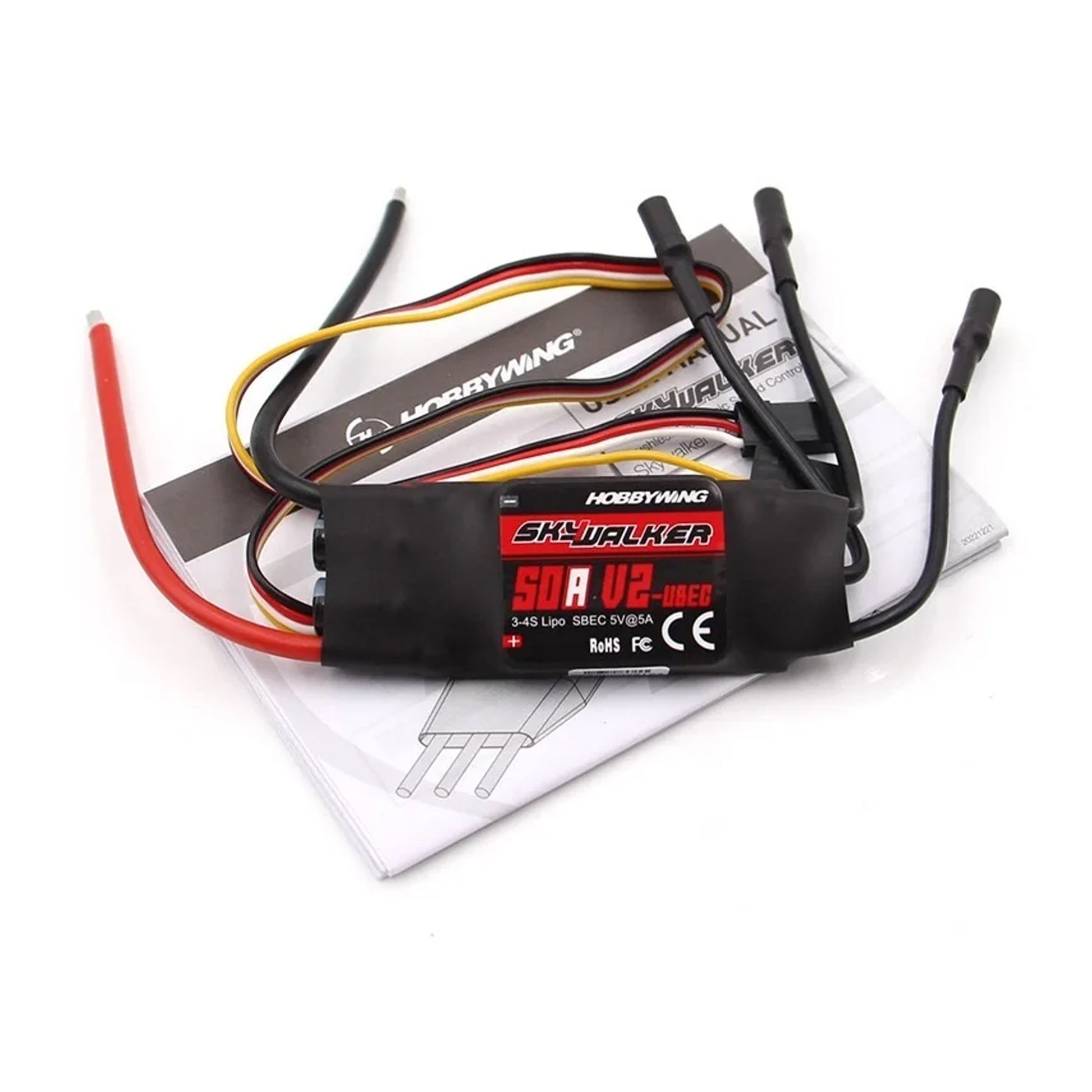

50A V2:

COntinuous output: 50A V2 UBEC

Burst current: 60A@10S

Power input: 3-4S Lixx/11-12S Nixx

5V/5A BEC output, switch mode

Refresh rate: 50Hz-432Hz

Max.rotation speed: 2-Pole 210000rpm/min; 6-Pole 70000rpm/min; 12-Pole 35000rpm/min

Dimension: 68*25*12mm

Weight: 43g

Backward thrust:YES

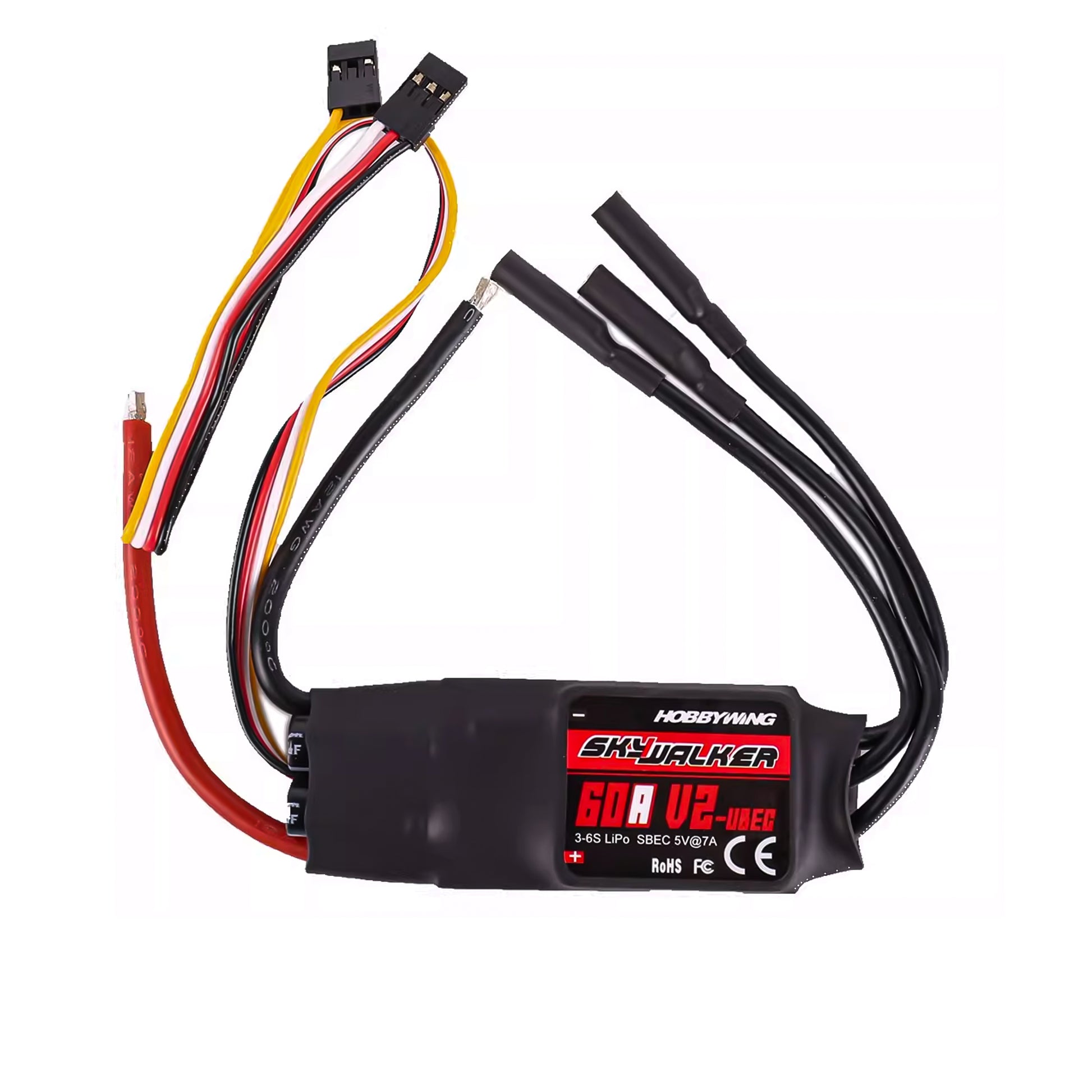

60A V2:

Item Name: Hobbywing SkyWalker 60A UBEC ESC

Constant Current: 60A

Burst Current (>10s): 80A

BEC Mode: switch mode

BEC Output: 5V at 3A

Battery Cell: 3-6 cells Lipo,or 11-18 cells NiHH

Refresh Rate: 50Hz-432Hz

Dimension: 77 x 35 x 14 mm

Weight: 63g

Maximum speed: 210000 RPM (2 poles motor), 70000 RPM (6 poles motor), 35000 RPM (12 poles motor)

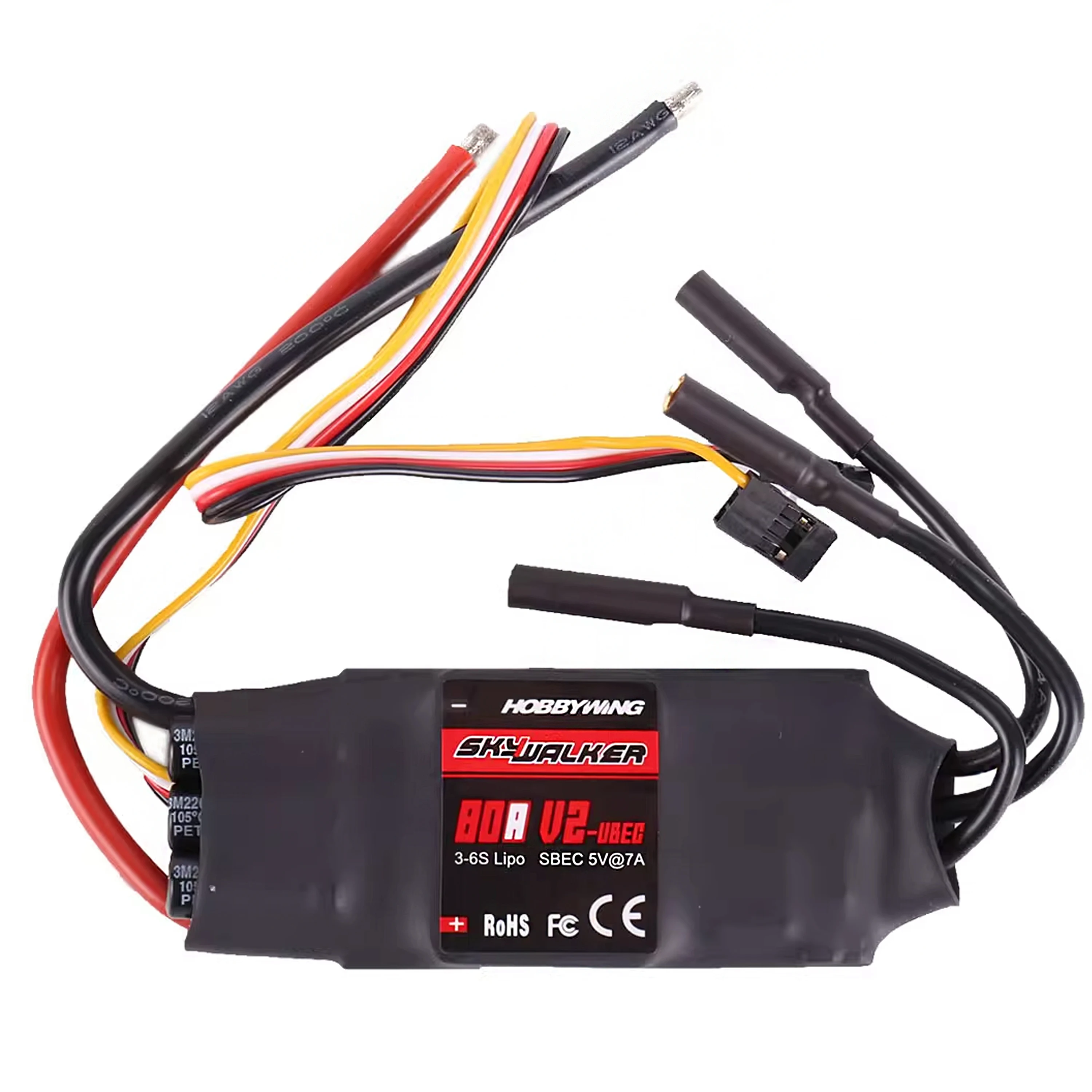

80A V2:

Item Name: SkyWalker 80A V2 UBEC

Type: Brushless ESC,Regular voltage

Cont./Peak Current: 80A/100A

Input: 3-6S LiPo,11.1-18s Ni-MH

BEC Output: Switch Mode--5V,7A

Input Wires: Red-12AWG-150mm*1,Black-12AWG-150mm*1

Output Wires: Black-14AWG-100mm*3

Input Connectors: NO

Output Connectors: NO

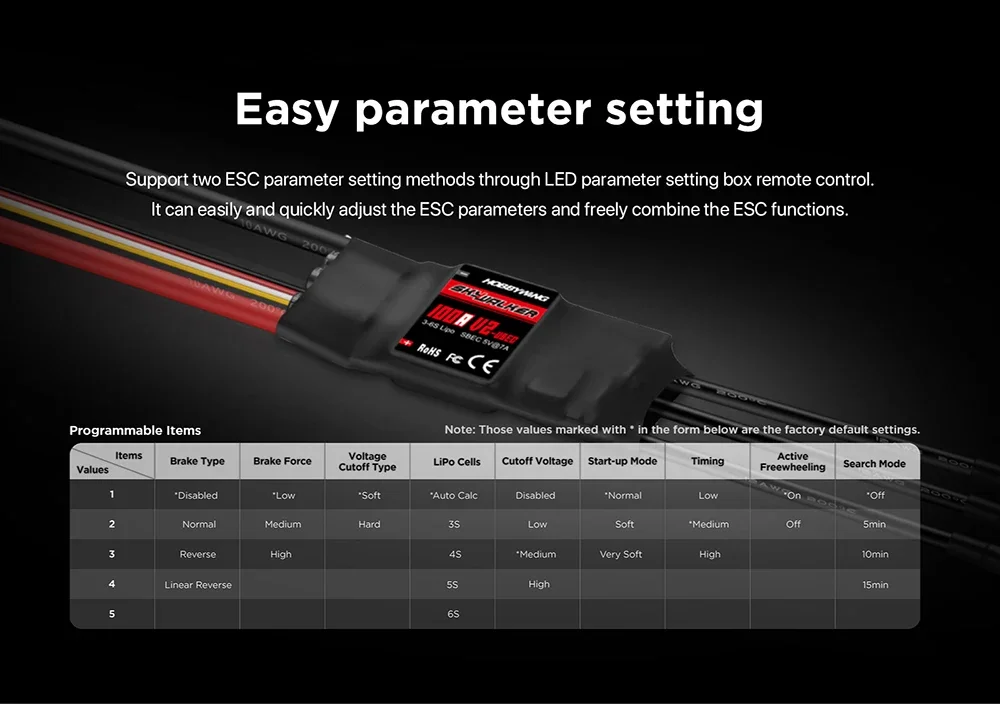

ESC Programing via: Transmitter,LED Program Card,Program Port (Program/Throttle Wire)

Firmware Upgrade: Not Supported

Size: 85.0x36.0x9.0mm

Weight: 79g

Backward thrust:YES

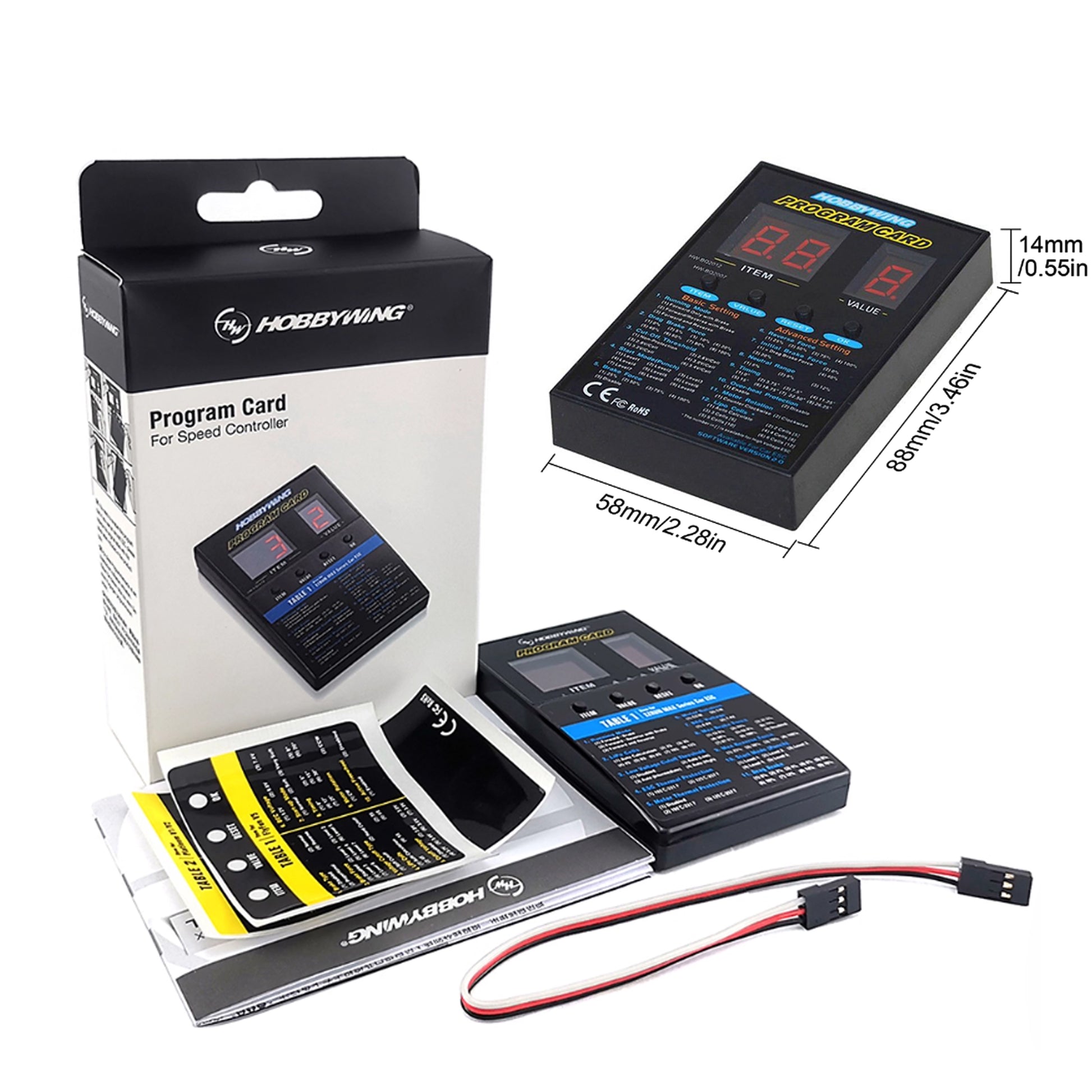

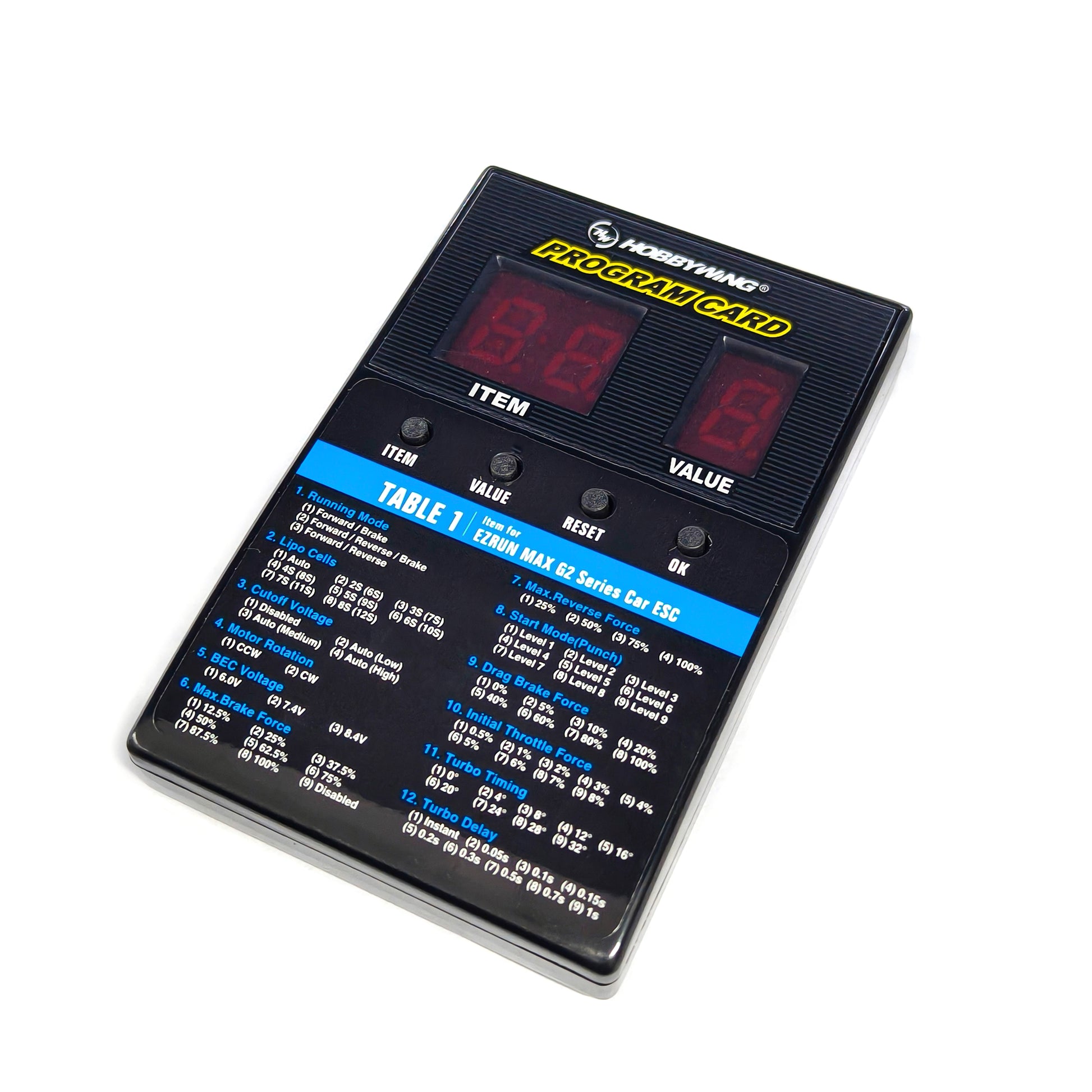

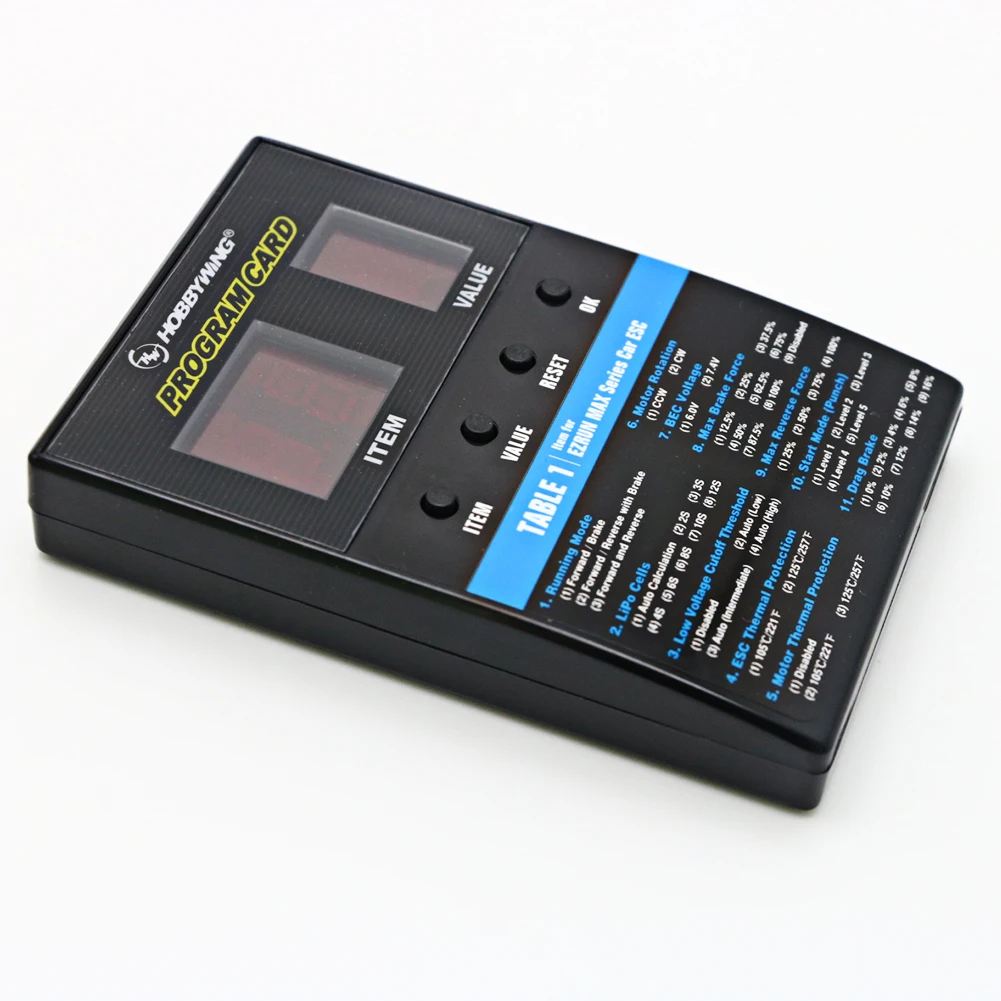

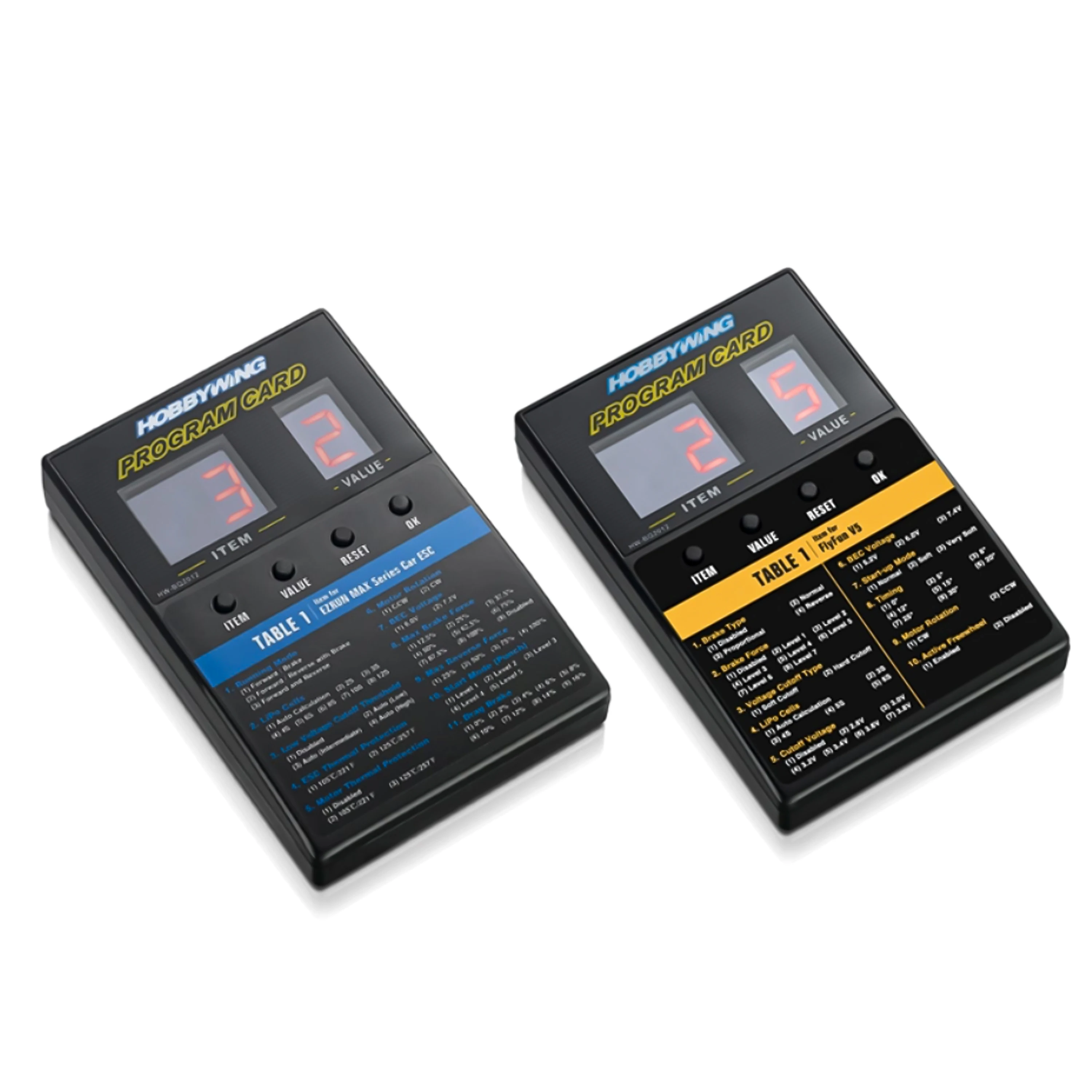

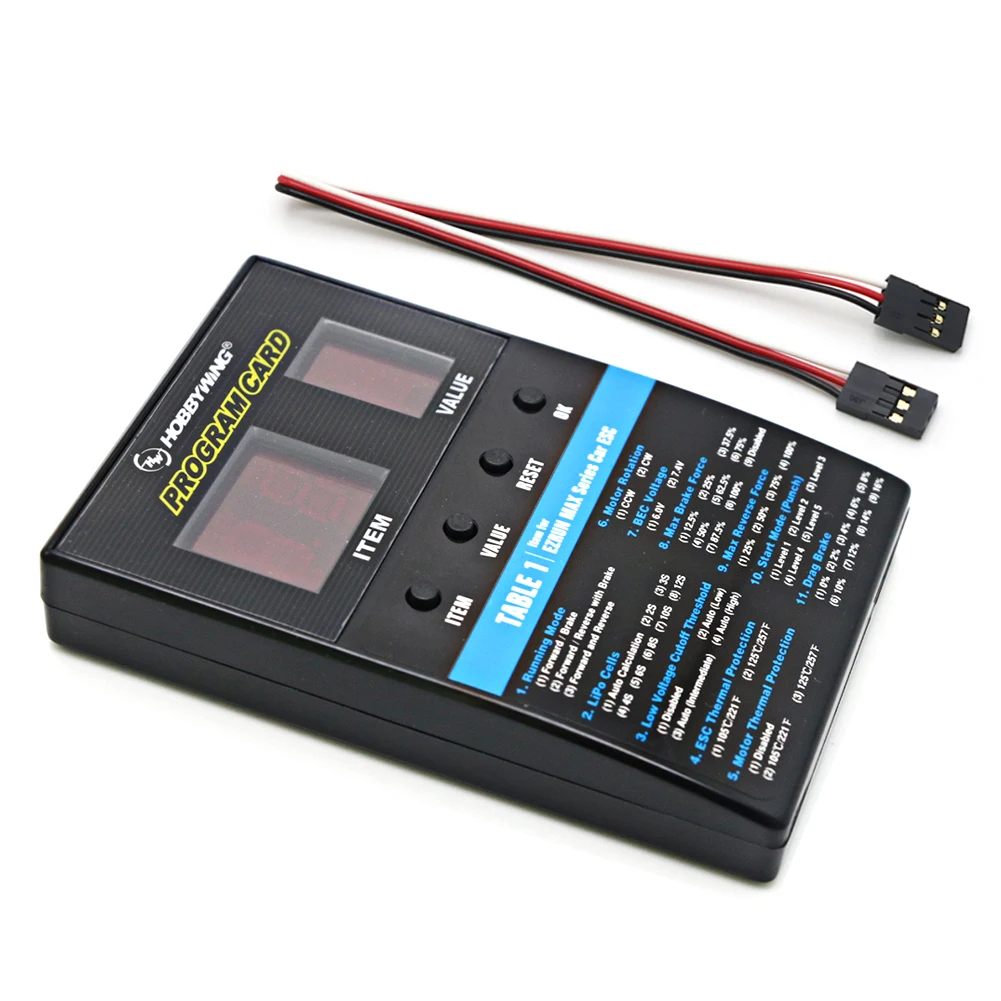

This LED program box is for programming HobbyWing brushless ESCs. Its friendly interface makes ESC programming easy and quick.

It’s compact, portable and very applicable for field use.

It works with the following HobbyWing products:

1.Platinum V1/V2 series & FlyFun V5 SkyWalker V2 series of brushless aircraft ESCs.

2.XeRun series (some XeRun ESCs, please take the instructions of relevant user manuals as standard.), EzRun series & QuicRun series of brushless car ESC.

3.SeaKing series of brushless boat ESC.
