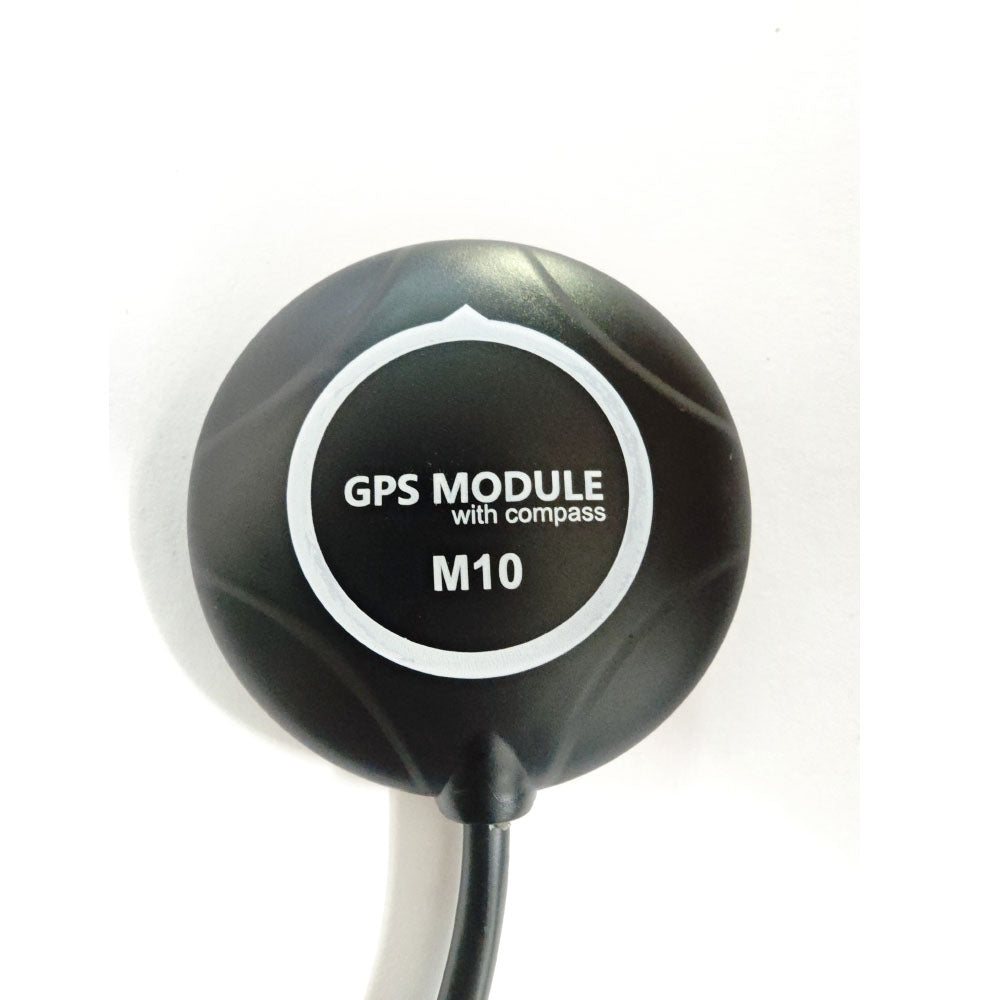

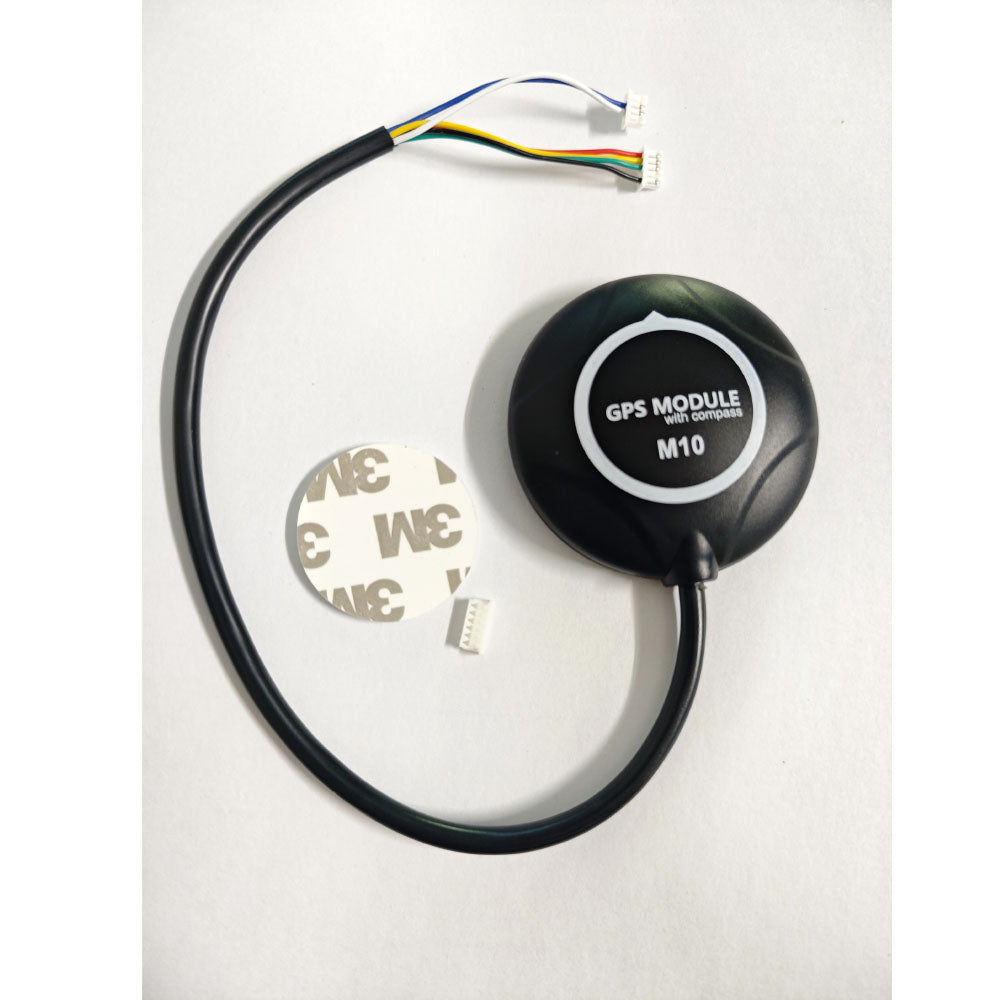

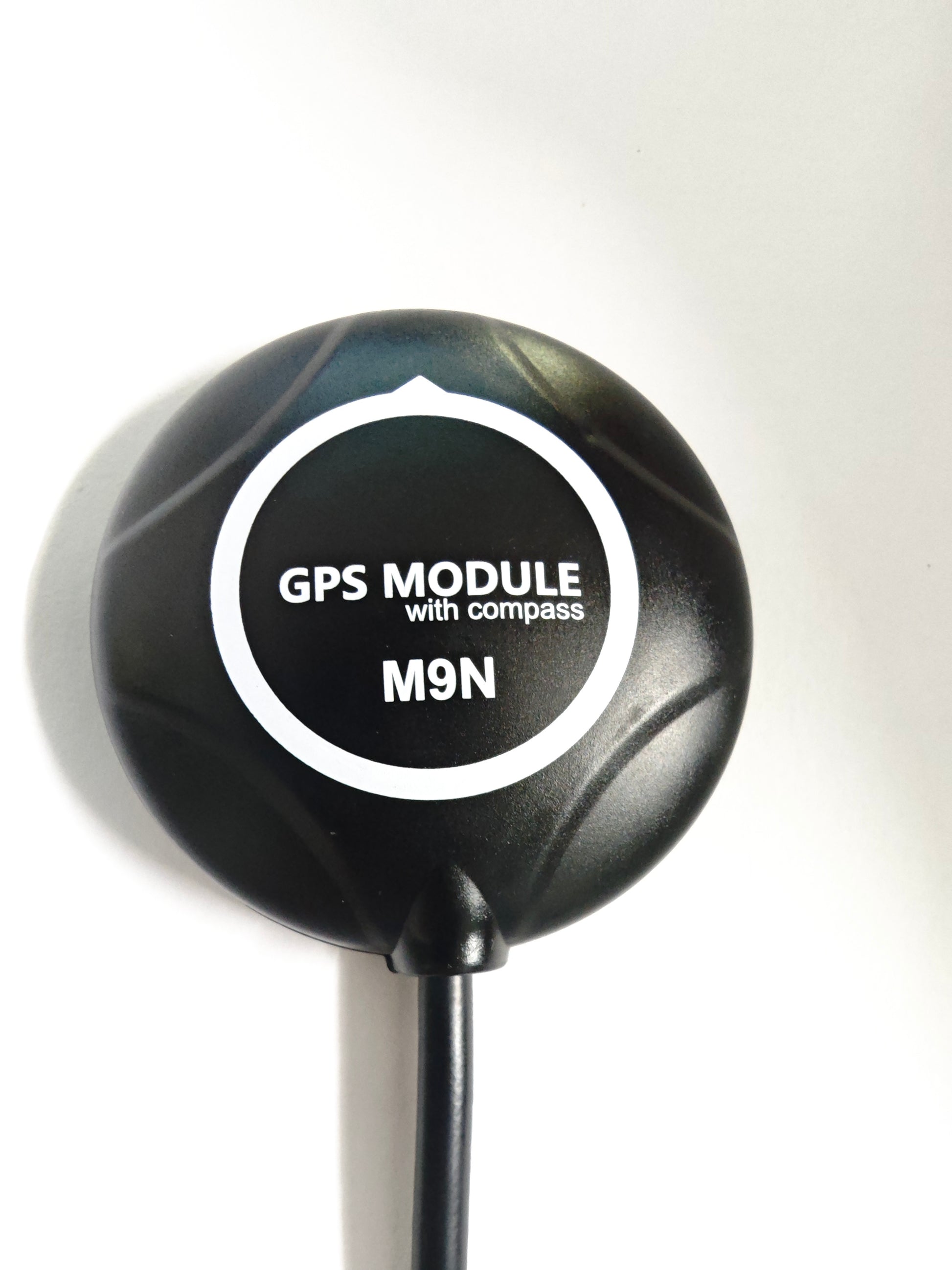

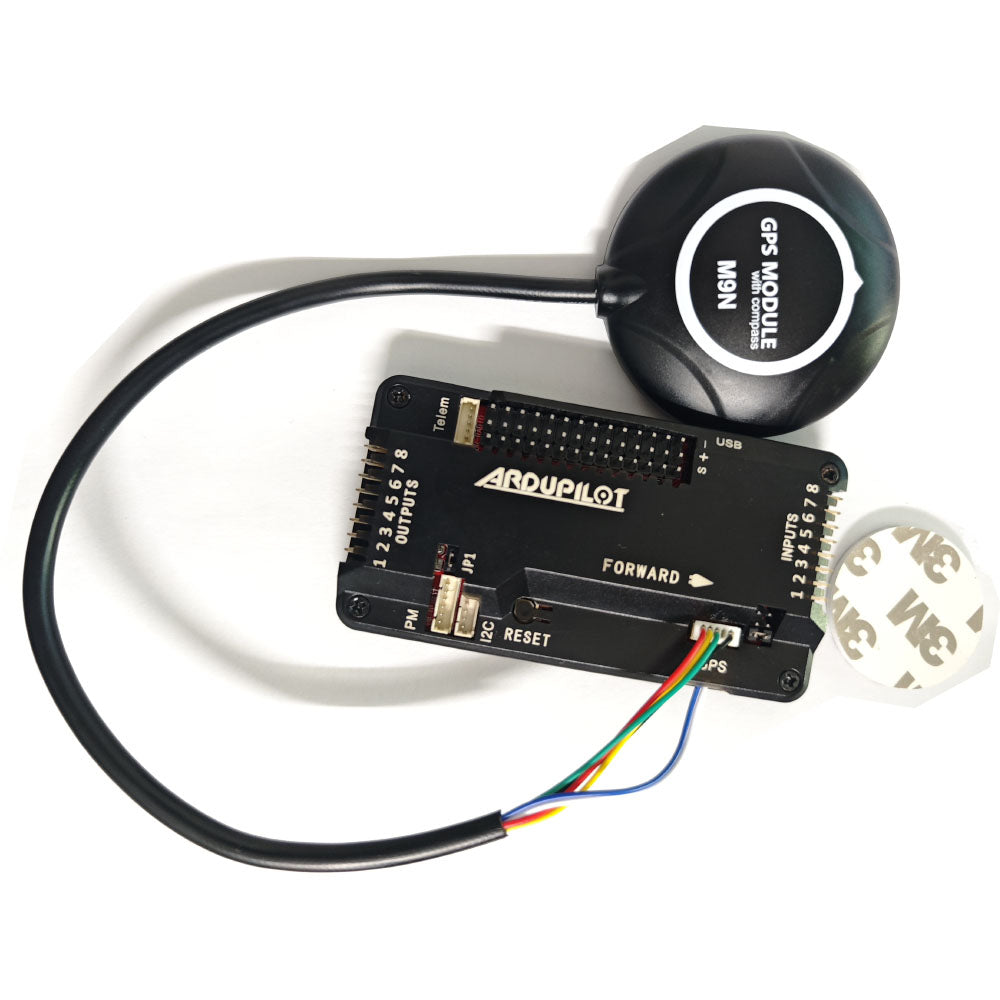

M9N M10 module 8N/6M flight controller with built-in compass, can be paired with APM bracket 2.6 2.8 Pixhawk 2.4.6 2.4.8

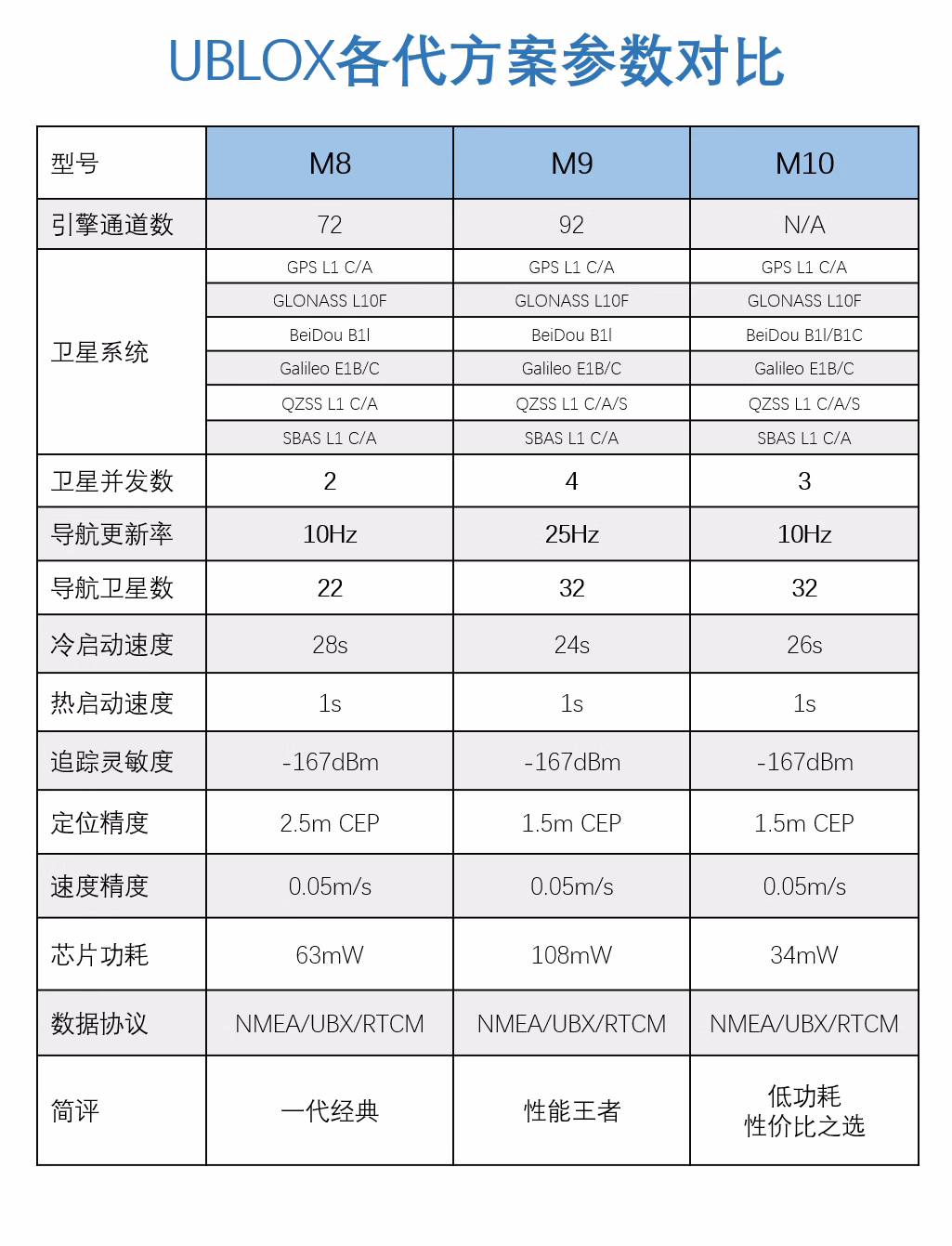

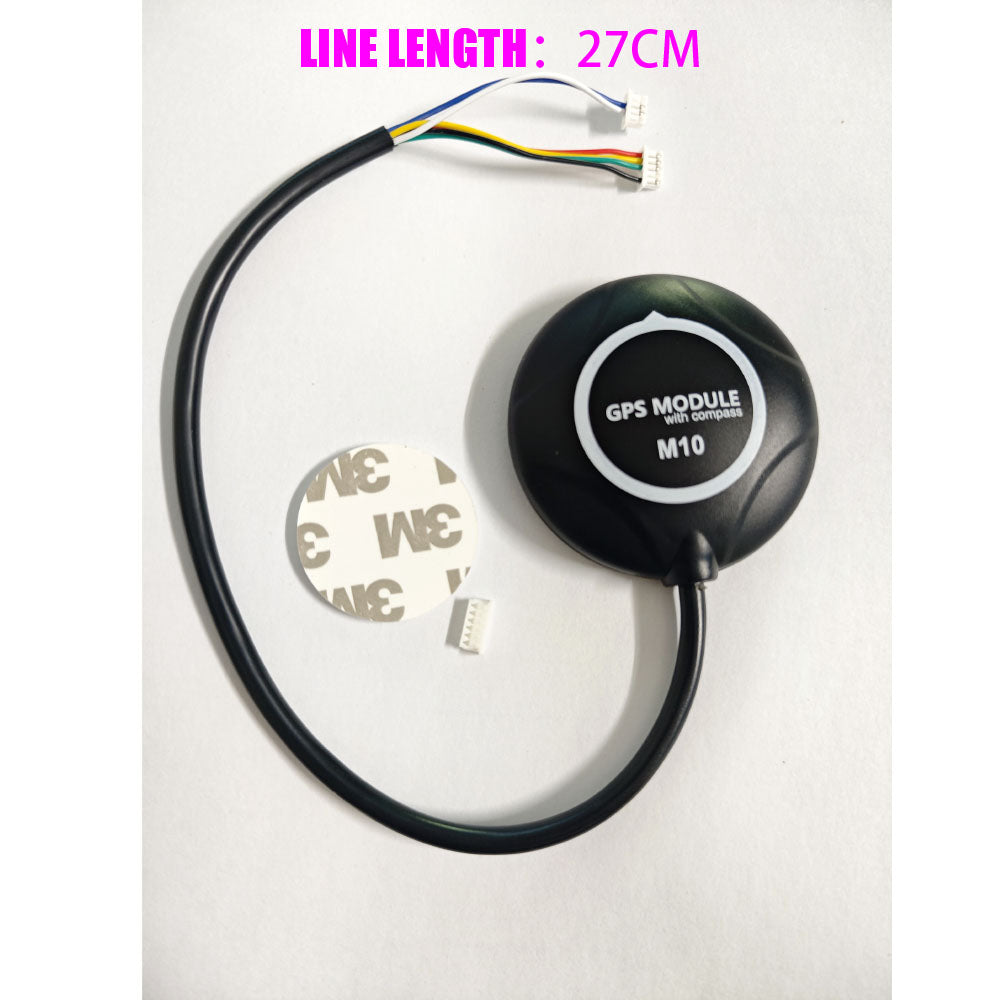

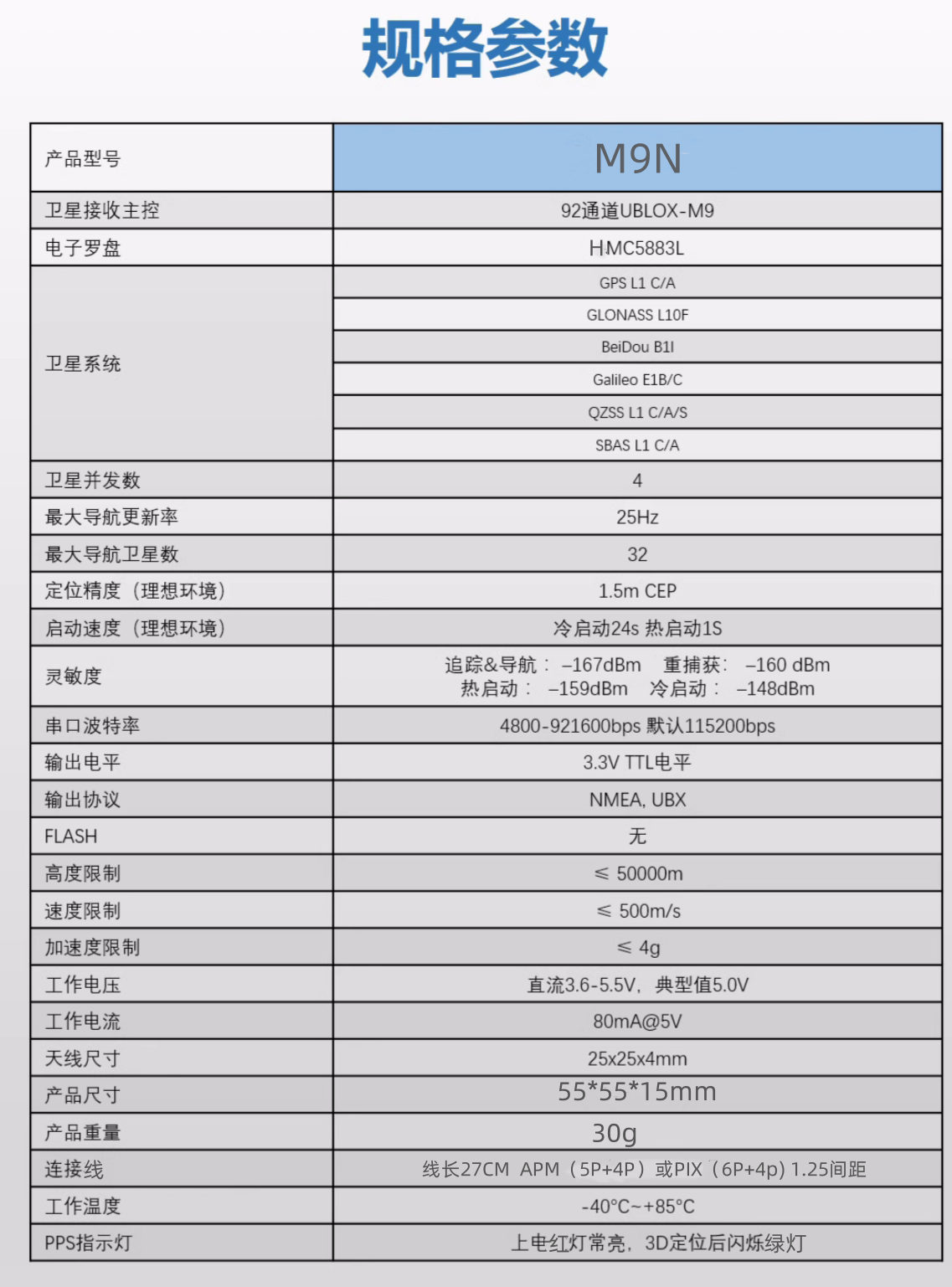

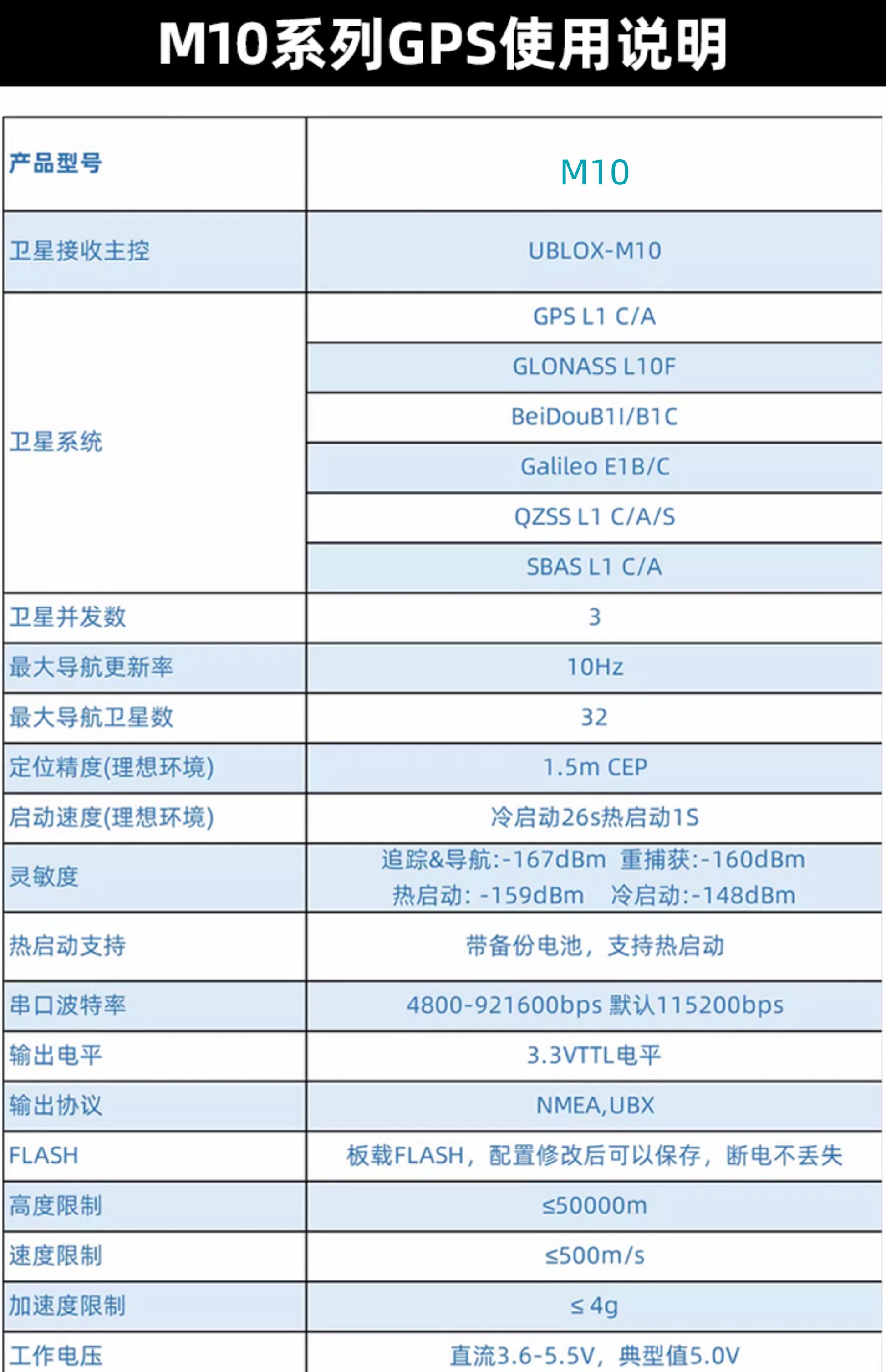

GPS M9N chip parameters: Receiver type: 92-channel u-blox M9 Engine: GPS/L1C/A, GLONASS L1OF, BeiDou B1, SBAS L1C/A, WAAS, EGNOS, MSAS Galleo E1B/C,(M9N) Nav. Number of navigation satellites: 32 Serial port baud rate: 4800-921600bps Default 115200bps Update rate for individual GNSS: up to 10 Hz Concurrent global navigation satellite systems: up to 25Hz Position accuracy: 1.5m CEP Tracking and navigation: -167 dBm Cold start: -148 dBm Hot start: -159 dBm Operating temperature: -40 ℃ to 85 ℃ Storage temperature: -40° C to 85° C (M9N/Q) Connecting wire length: wire length 27CMAPM(5P +4P) or PIX(6P+4p)1.25 spacingPP indicator light: The red light is always on when power is on, and the green light flashes after 3D positioning Height limit: ≤50000m Speed limit: ≤500m/s Working voltage: DC 3.6-5.5V, typical value of 5.0V Working current: 80mA@5v GPS M10 chip parameters: Receiver type: N/A Engine: GPS/L1C/A, GLONASS L1OF, BeiDou B1C, SBAS L1C/A, WAAS, EGNOS, MSAS Galleo E1B/C,(M10) Nav. Number of navigation satellites: 32Serial port baud rate: 4800-921600bps Default 115200bps Update rate for individual GNSS: up to 10 Hz Concurrent global navigation satellite systems: up to 25Hz Position accuracy: 1.5m CEP Tracking and navigation: -167 dBm Cold start: -148 dBm Hot start: -159 dBm Operating temperature: -40 ℃ to 85 ℃ Storage temperature: -40° C to 85° C (M9N/Q) Connecting wire length: wire length 27CMAPM(5P +4P) or PIX(6P+4p)1.25 spacingPP indicator light: The red light is always on when power is on, and the green light flashes after 3D positioning Height limit: ≤50000m Speed limit: ≤500m/s Working voltage: DC 3.6-5.5V, typical value 5.0V Working current: 80mA@5v FLASH: On-board FLASH can be saved after configuration modification, and will not be lost when power is turned off The new generation of GPS has low power consumption and high accuracy. The ultimate accuracy is 0.6 meters, which is actually close to 0.9 meters. The measurement accuracy is M7N
