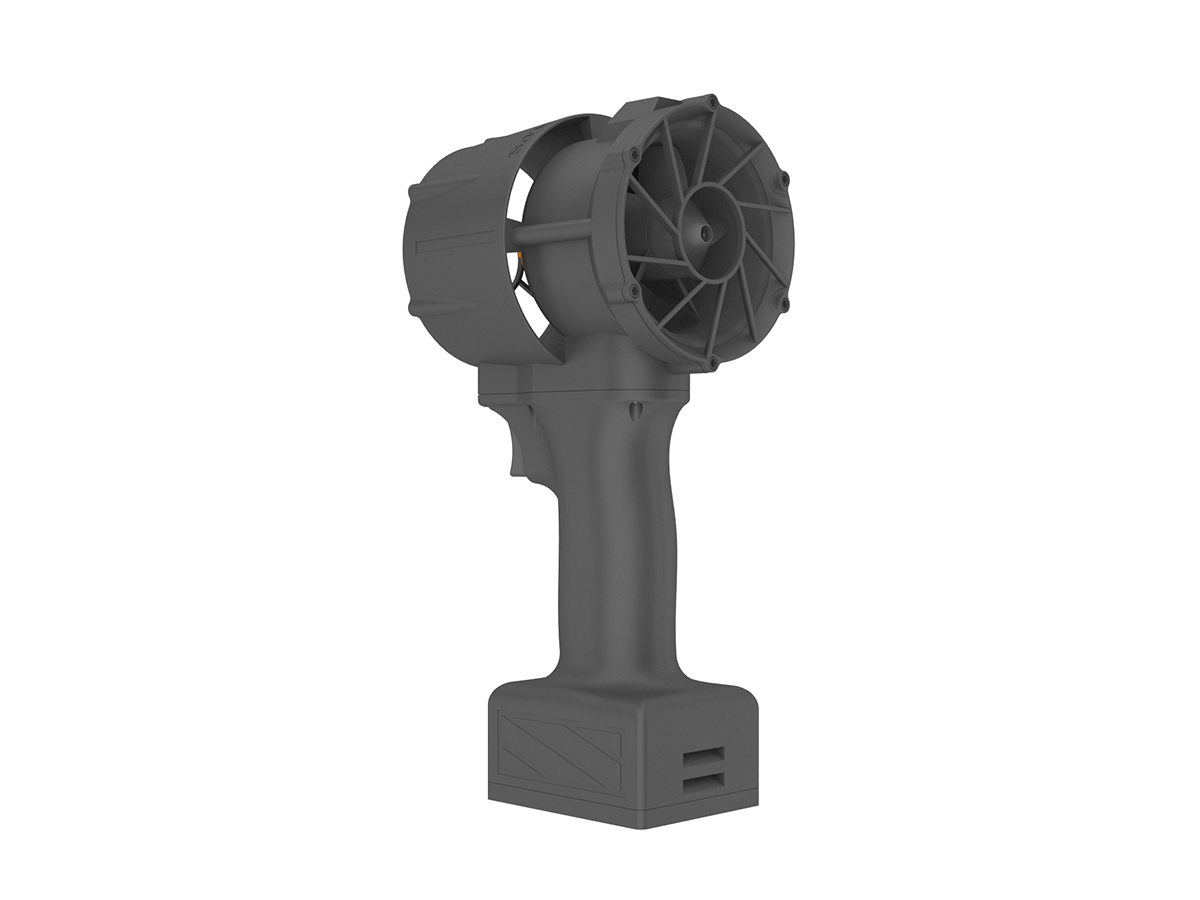

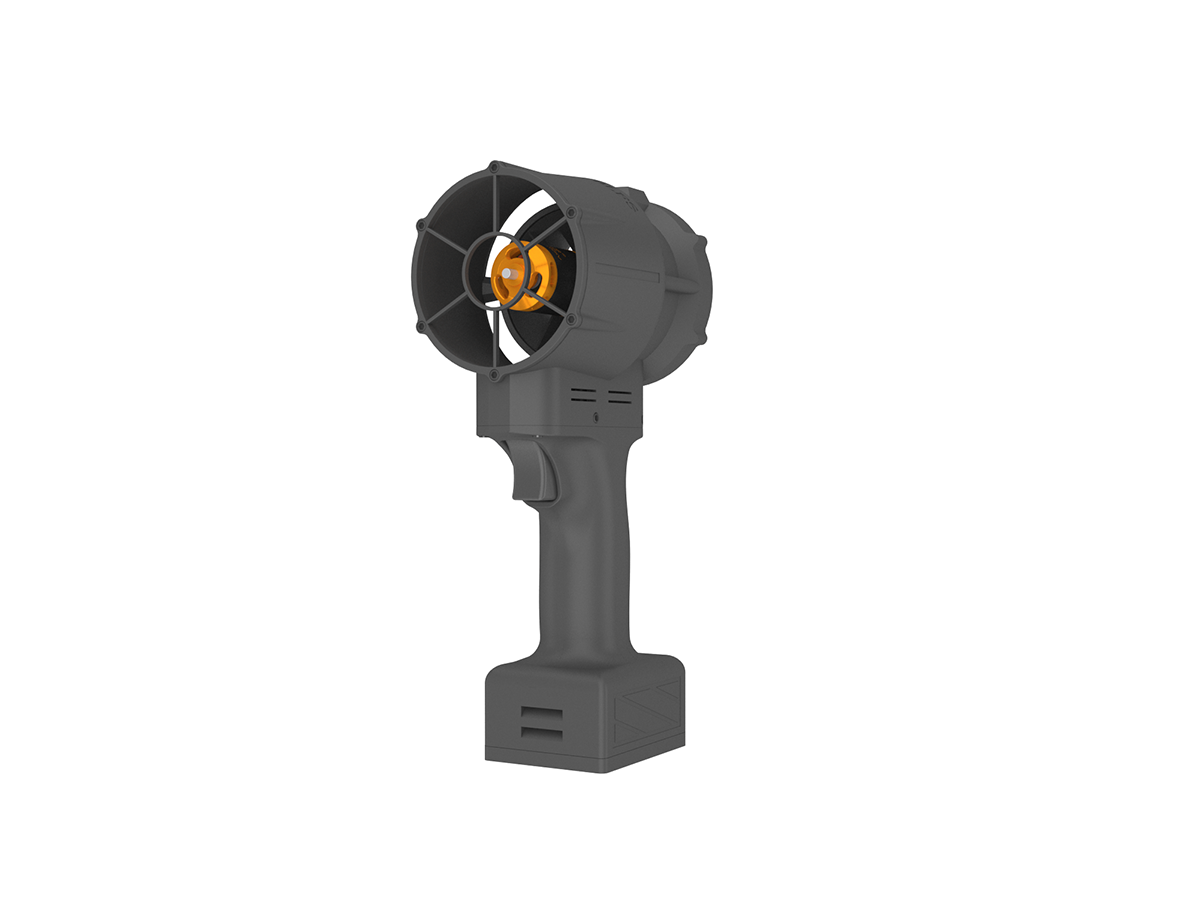

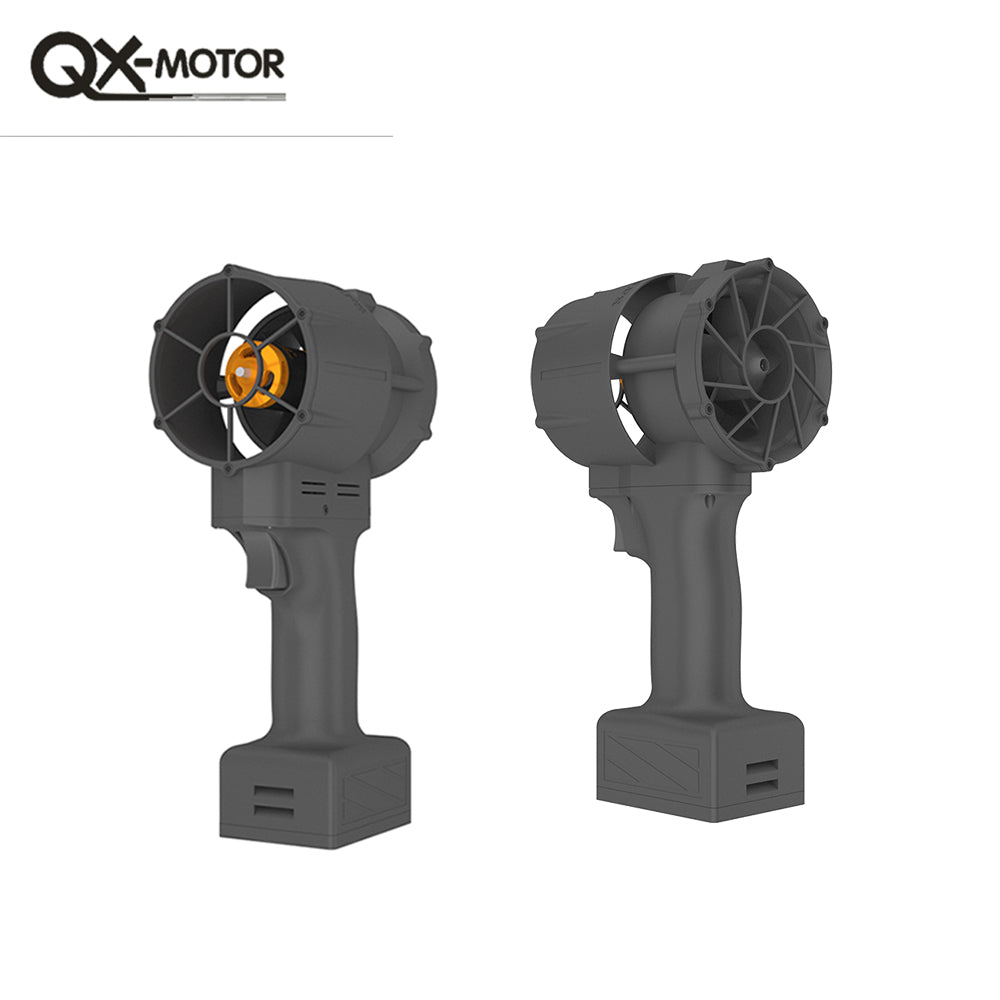

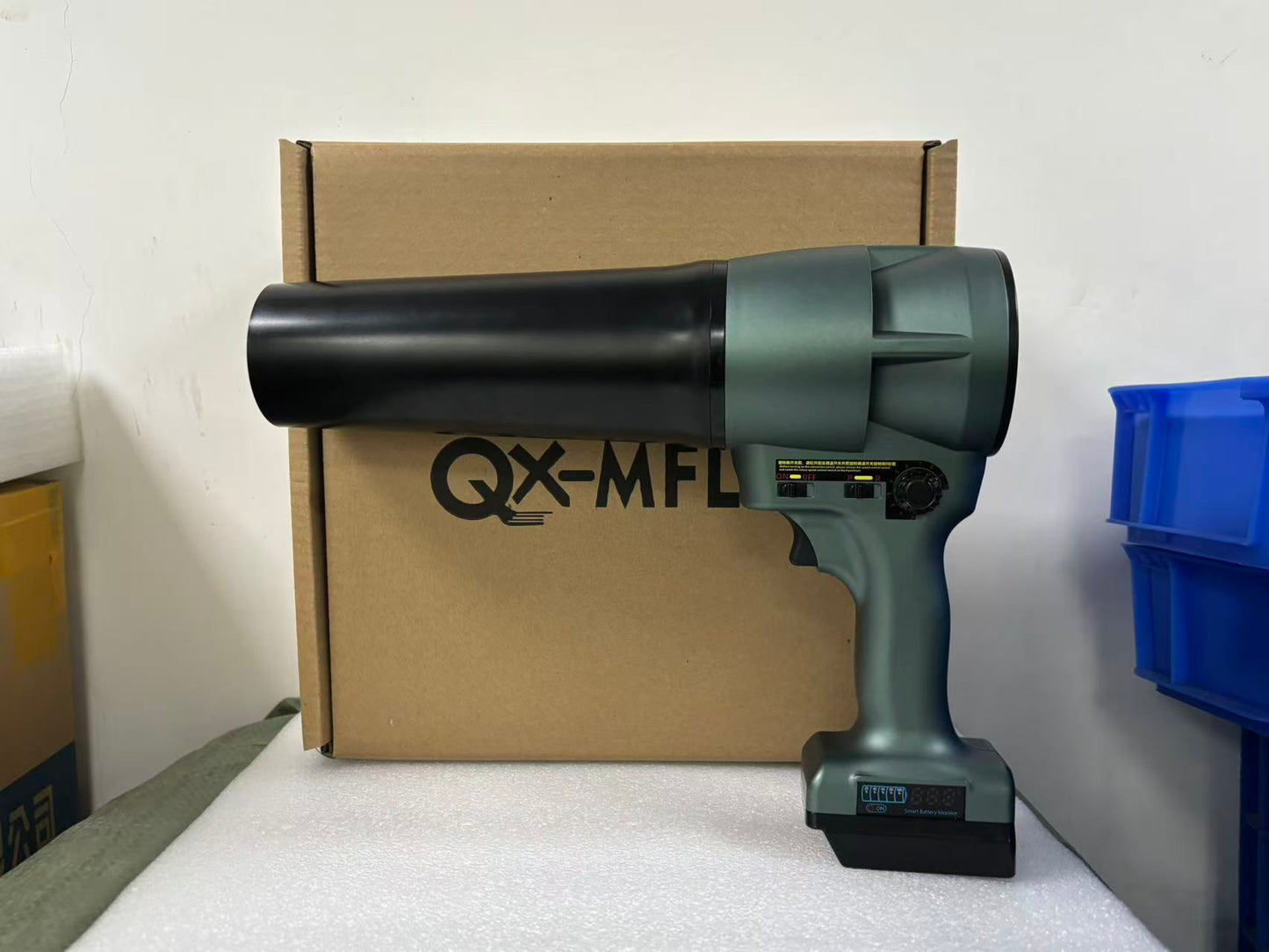

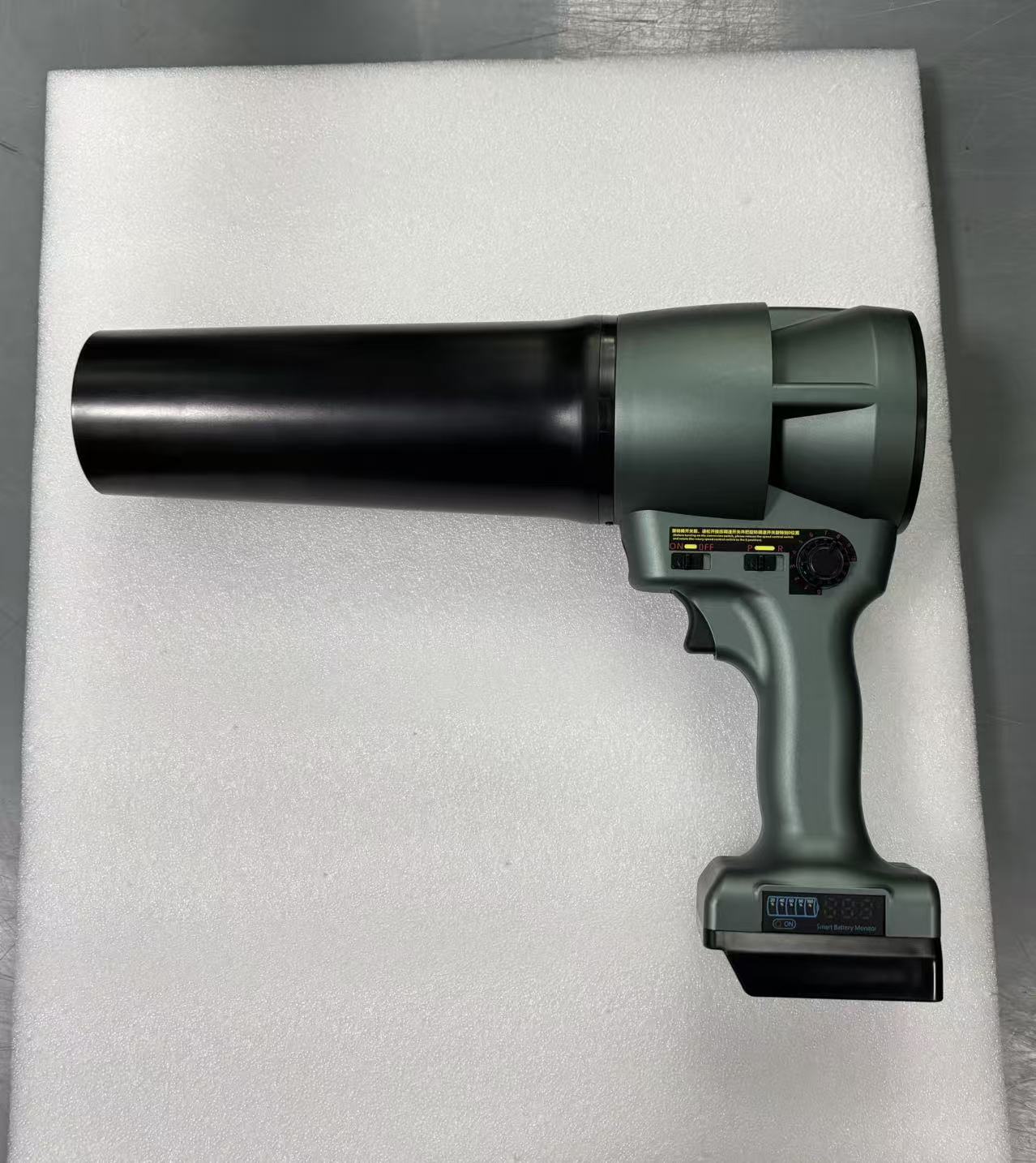

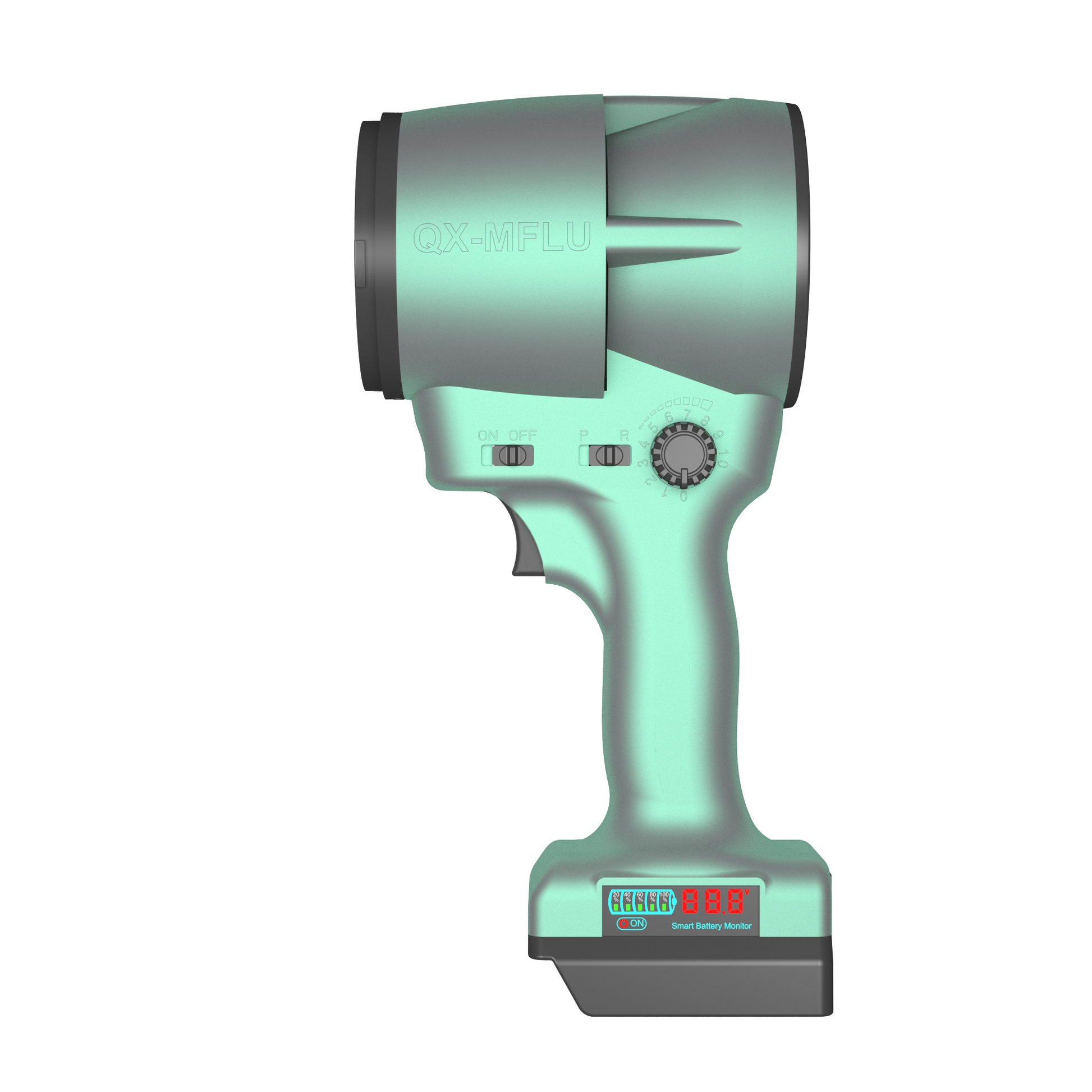

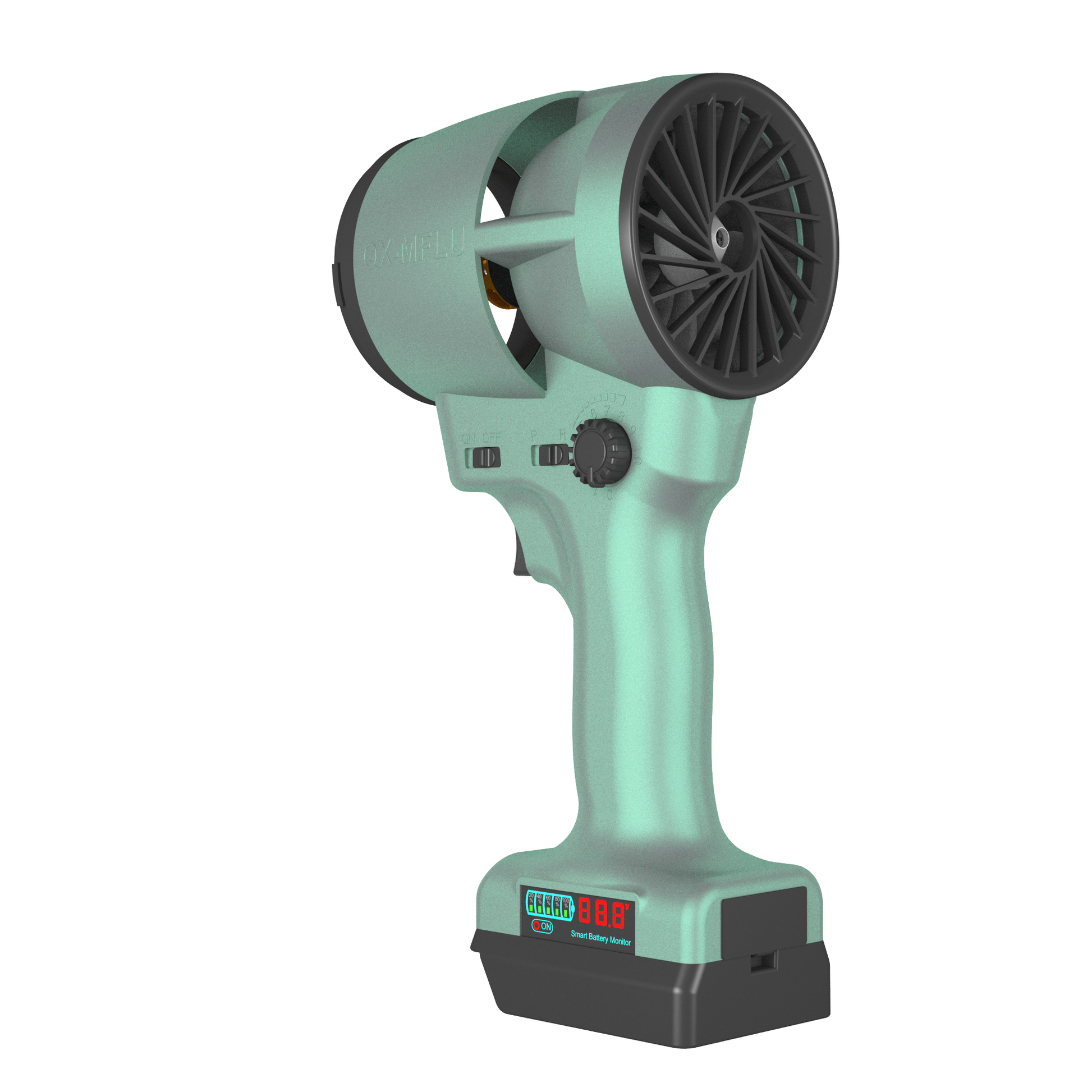

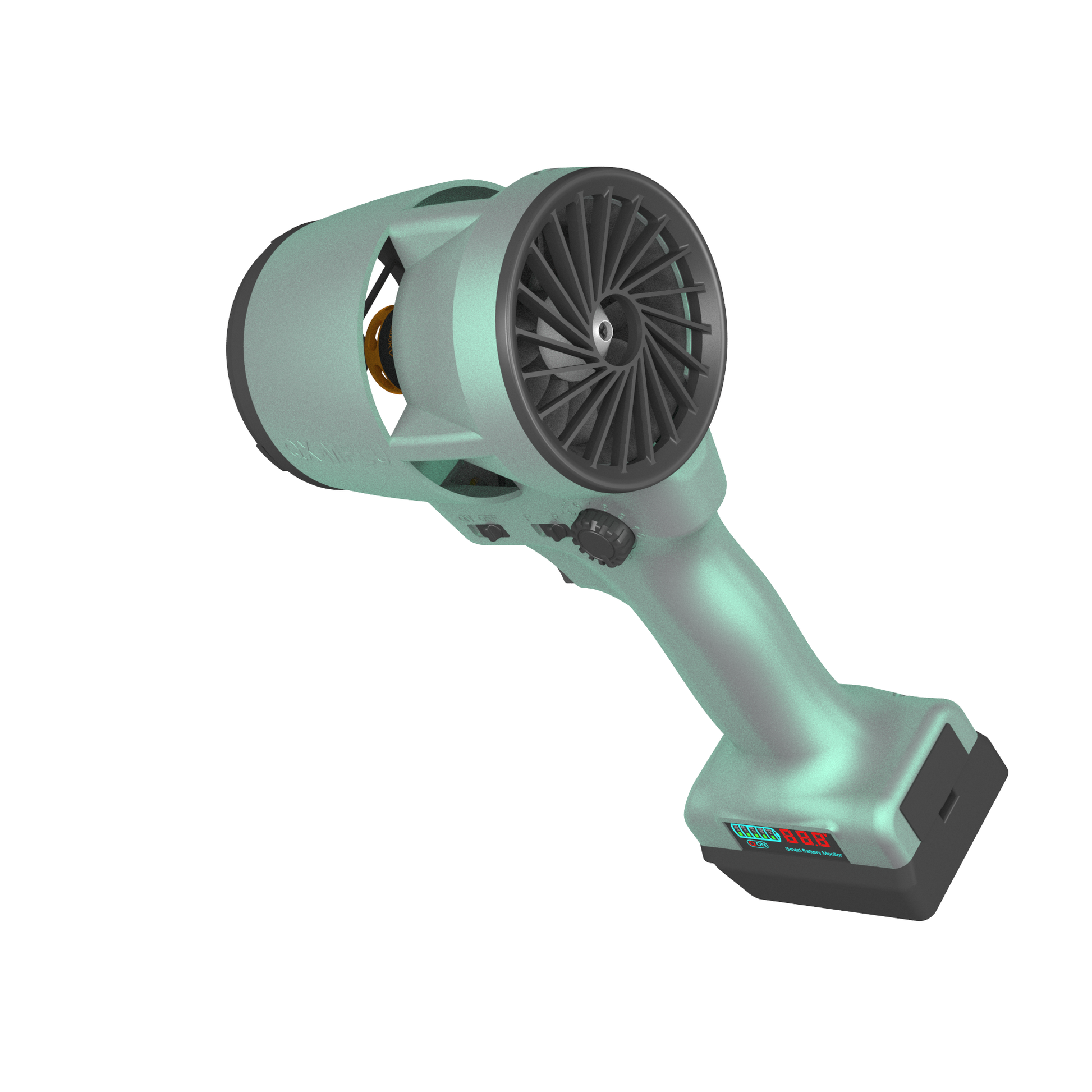

QX-MFLU 1900G 64mm portable violent fan, a powerful handheld fan suitable for outdoor water/dust/snow removal

We can customize for Party A. If you have any questions, please consult my email: 529285308@qq.com My WeChat: 529285308

Performance elements:
This product has two switch modes: infinite speed regulation and fine adjustment. Please read the instruction manual before use. Fine tuning mode can free up both hands. The machine has a wider range of applications.
Strong winds can work continuously for about 10 minutes, 5-speed winds can work for about 20 minutes, and gentle winds can work for about 600 minutes.

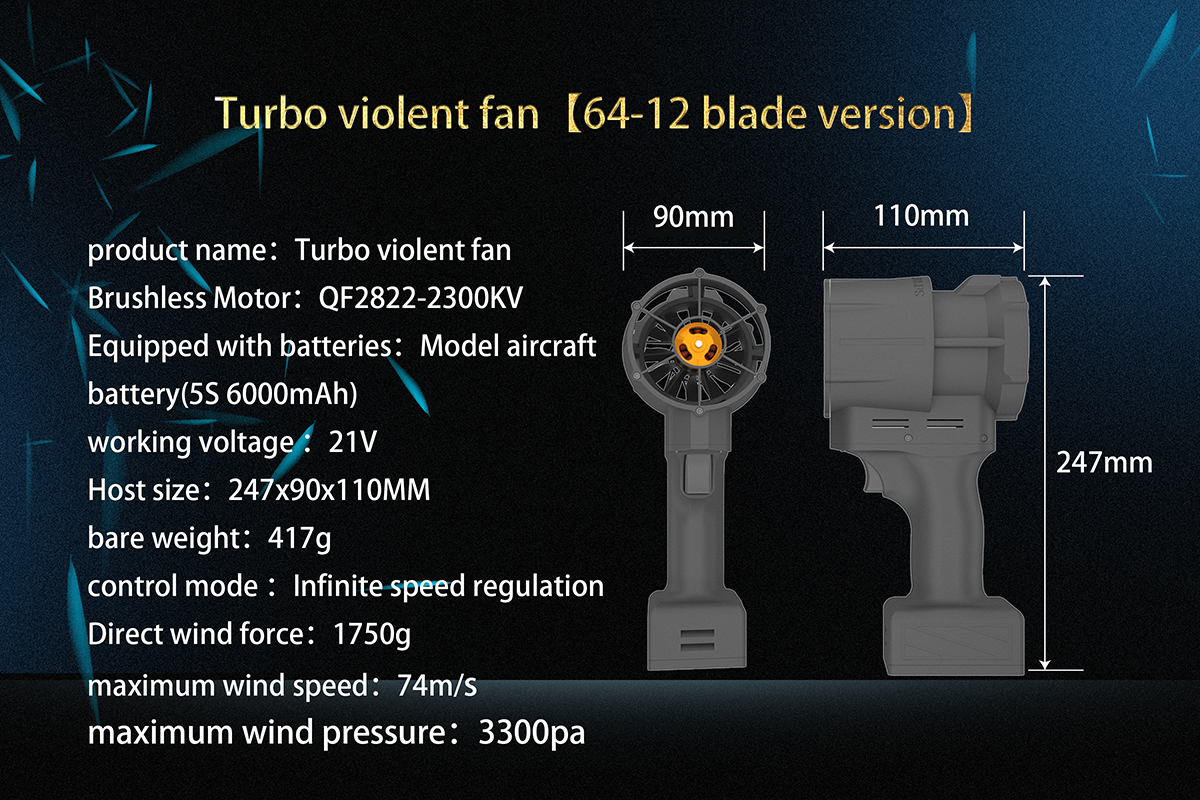

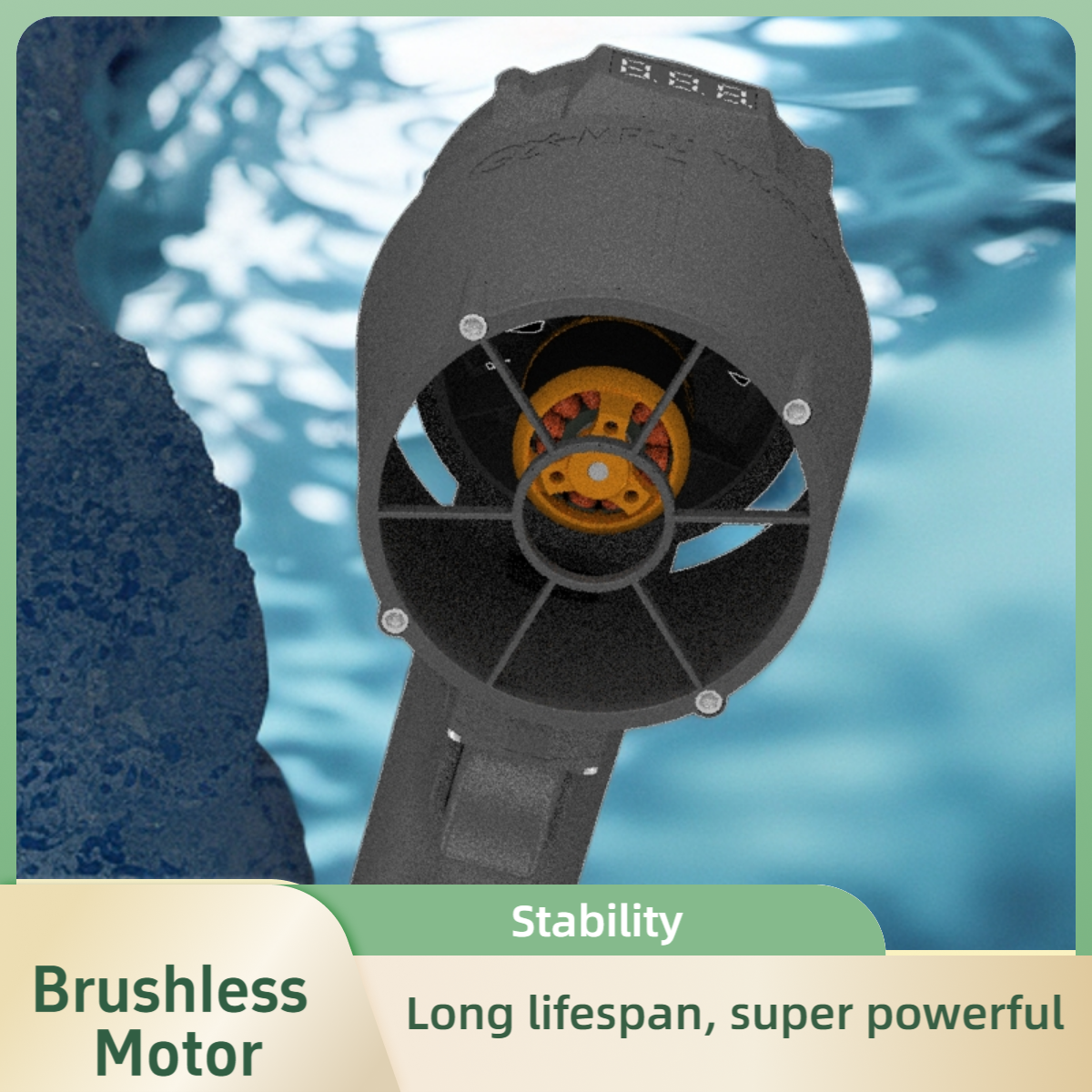

Brushless motor: QF2822-2300KV

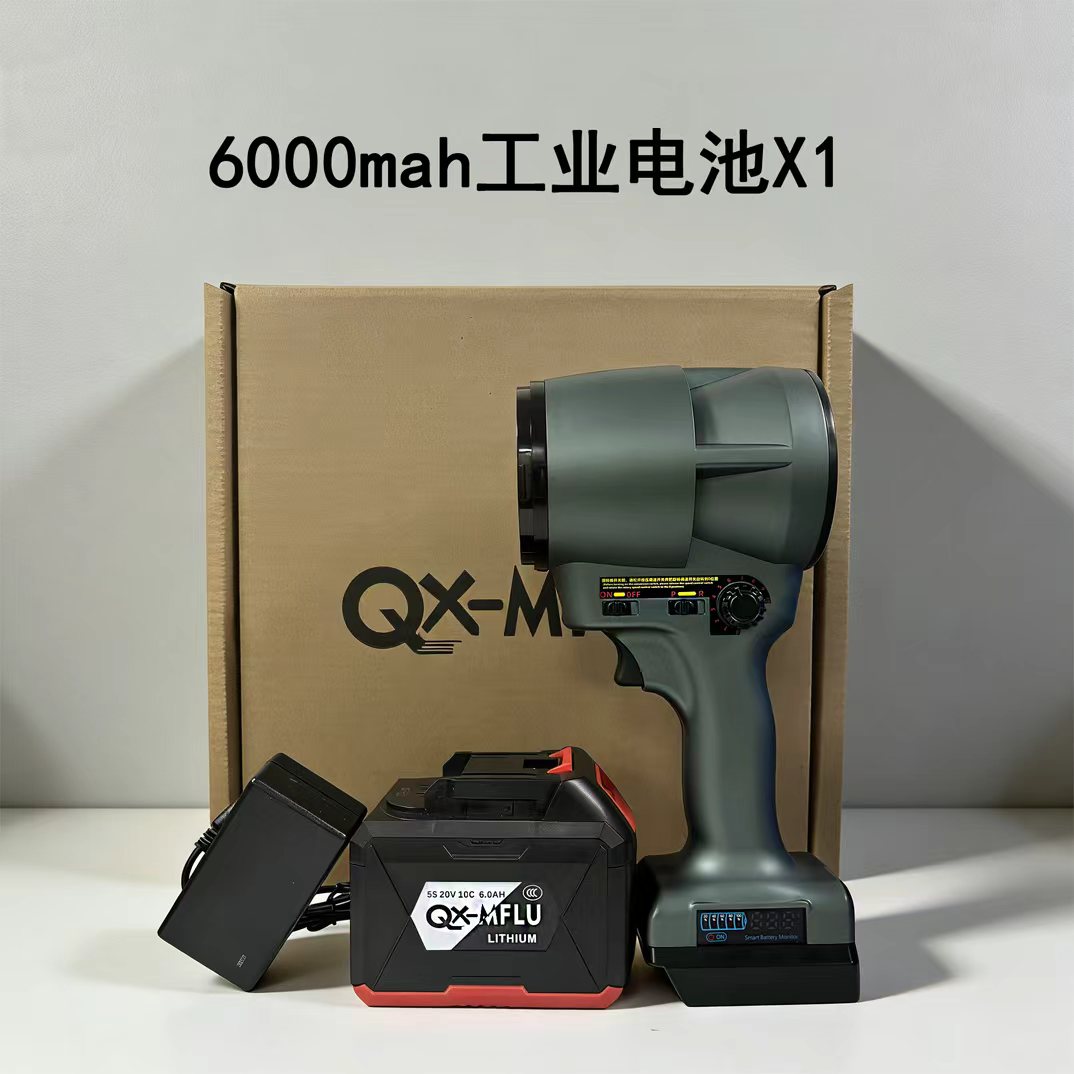

Equipped with battery: Model airplane battery (5S 6000mAh)

Working voltage: 21V Host size: 247x90x110mm

Net weight: 417 grams

Control mode: infinite speed regulation

Direct wind force: 1900g

Maximum wind speed: 74m/s

Maximum wind pressure: 3300pa

1. Product Name：Turbo Violent Fan (64 Economic Edition)

2. Product parameters：

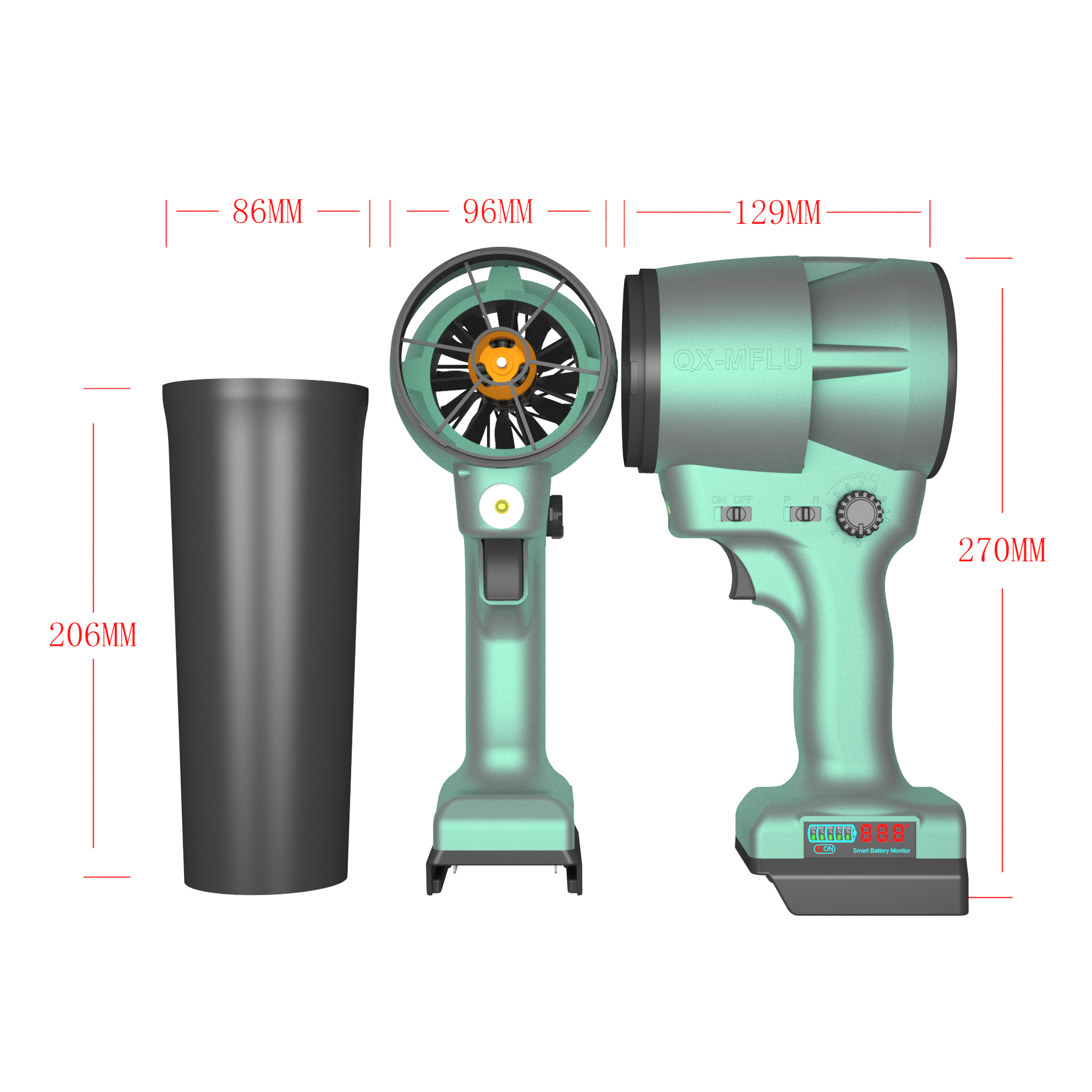

（Host size）：270*129*96MM	（bare weight）：570g
（Brushless Motor）：QF2822-2300KV	（working voltage ）：21V
（Maximum wind pressure）：3300pa	（maximum wind speed）：74m/s
（Maximum air volume）4400㎡/m	（maximum power）：1000W
（Noise at a distance of 1m from the product）：95dB
（Constant current power supply 21V test for direct blowing thrust）：1750g

3. （Operation Manual）

1）

Before powering on, please release the speed control switch and rotate the knob

speed control switch to the 0 position

2）

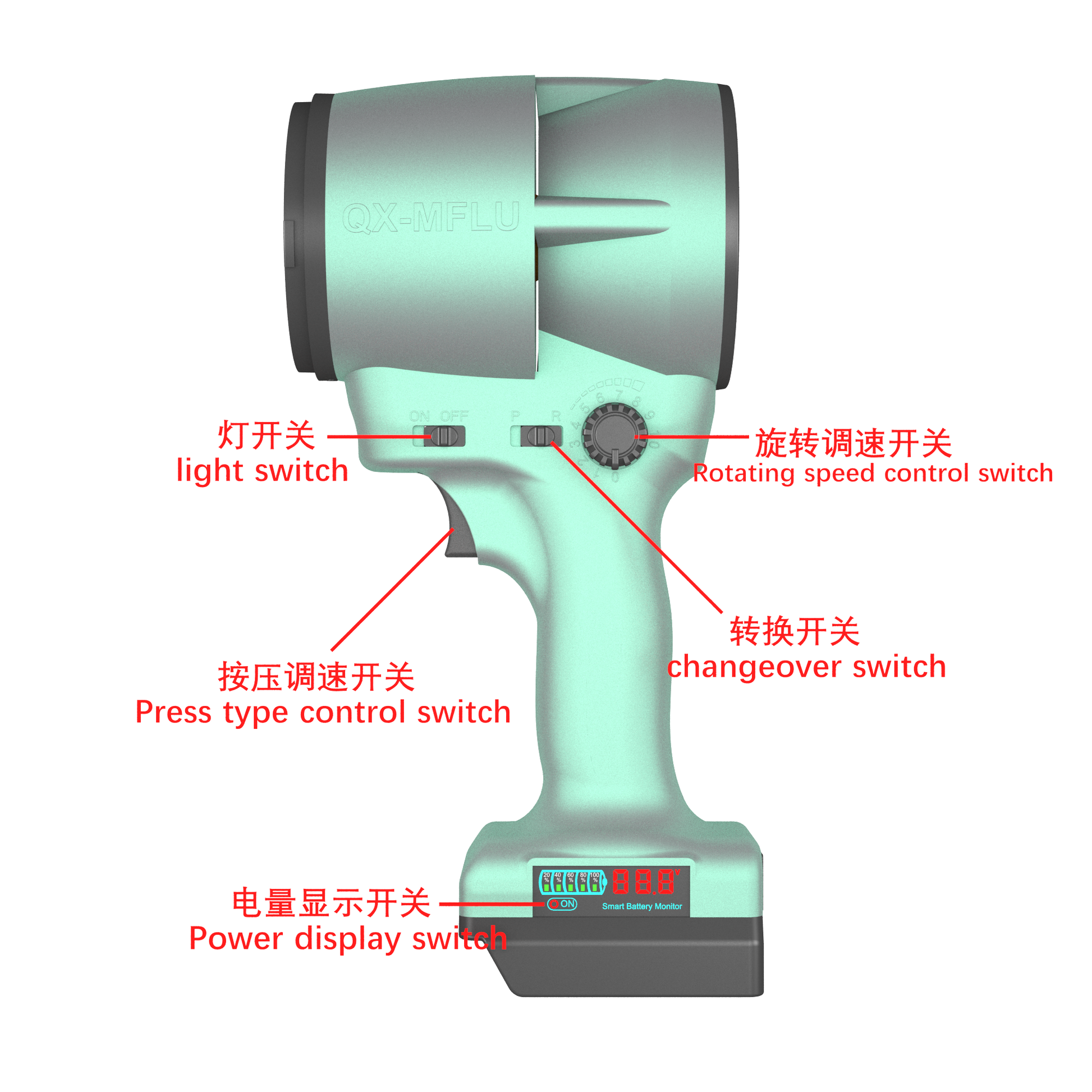

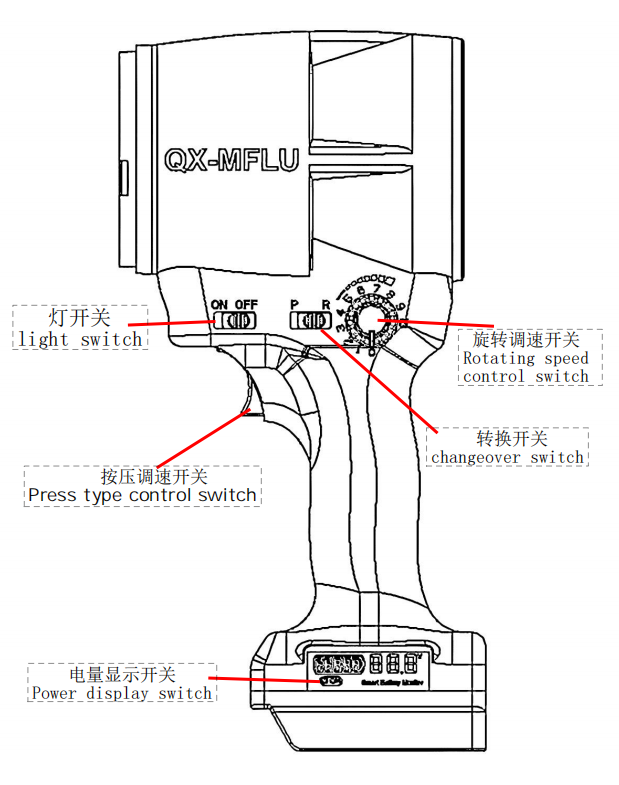

When the conversion switch is turned to the P position, the speed control switch

is pressed to operate, and when it is turned to the R position, the speed control switch

is rotated to operate,Before turning the conversion switch, do not press the speed

control switch. Rotate the knob speed control switch to the 0 position.

3）

After inserting the battery into this product, there will be a music prompt

tone, followed by 5 beeps (5 beeps represent 5 batteries), and then a long beep

indicating that it is ready to work. Press the stepless speed adjustment switch

to adjust the wind speed.

4）

If this product fails to operate normally or produces an incorrect prompt tone after the battery is inserted, please perform throttle travel calibration first: 1. For throttle travel calibration using the pressing speed adjustment switch, first set the switch to the P position, then press and hold the speed adjustment switch to the end. After inserting the battery, a musical prompt tone will be heard, followed by two "beeps". Immediately release the speed adjustment switch, and you will hear five consecutive "beeps" (five beeps indicate five battery cells). After that, a long "beep" indicates that the product is ready for normal use. 2. For throttle travel calibration using the rotating speed adjustment switch, set the switch to the R position, then rotate the speed adjustment switch to the maximum position (10). After inserting the battery, a musical prompt tone will be heard, followed by two "beeps". Immediately rotate the speed adjustment switch to the minimum position (0), and you will hear five consecutive "beeps" (five beeps indicate five battery cells). After that, a long "beep" indicates that the product is ready for normal use.

5）

    The power display switch shows that the light is self extinguishing. Press lightly to wake it up again.

4. Paired with batteries：

1）

Please do not use batteries that exceed the specifications. Any losses caused by use will be borne by yourself.

5. Main purpose：

1）Car water blowing and dust removal	2）Violent dust removal and ash removal
3）Sweeping fallen leaves	4）Violent snow removal

6. matters needing attention：

1）

By choosing to use this product, you are aware of and comply with the safe operating conditions. Otherwise stop using this product.

2）

The use of this product should be installed and used under the parameter setting specified by the manufacturer. The voltage, overload or other modification behavior cannot be changed.

3）

Please unplug the battery when not in use and keep it properly.

4）

Pay attention to the battery voltage when using it, and charge it promptly when the voltage is low to avoid over discharging the battery.

5）

As this product contains a battery, avoid placing it in an environment with a temperature exceeding 60 degrees Celsius to prevent unnecessary damage.

6）

Keep the air outlet away from crowds during use to avoid injury to personnel.

7）

The air inlet has a certain suction force, and there are no foreign objects (such as clothes, hair, etc.) within 20cm of the air inlet during use.

8）

For longer battery life, please do not operate at full power for extended periods of time.

9）。

The default battery base for this product is the Makita model, and there is also a reserved XT60 power supply port (which can be connected to a 16V DC power supply).
