QX-MOTOR QX-6120MG 180° Digital Rc Servo 20kg Torque Waterproof For RC car Toy
QX-MOTOR QX-6120MG 180° Digital Rc Servo 20kg Torque Waterproof For RC car Toy
Couldn't load pickup availability
the digital steering gear is designed with a
control angle of 180 °, which is suitable for aircraft models, vehicle models,
climbing vehicle, short truck, tension, racing, flat running, cross-country, 10
feet, gasoline engines, robots, aerial photography, PTZ, UAV, manipulator, etc.
it is compatible with JR / Futaba.
Item: QX-MOTOR QX-6120MG Digital Servo
Output gear: 25t
Torque(6V): 20.5kg-cm
Torque(8.4V): 23.8 kg-cm
Limit angle: 180°
Bearing Type： Ball Bearing x 2
Speed: 0.13 sec/60°(6V) │ 0.1 sec /60°(8.4V)
Operating Voltage：4.8 ~ 8.4 DC
Volts
Weight: 79g
Motor type: Carbon brush motor
Gear Type： Metal
Operating Temperature：-25℃~70℃
Working frequence：1500 μsec / 50—330hz

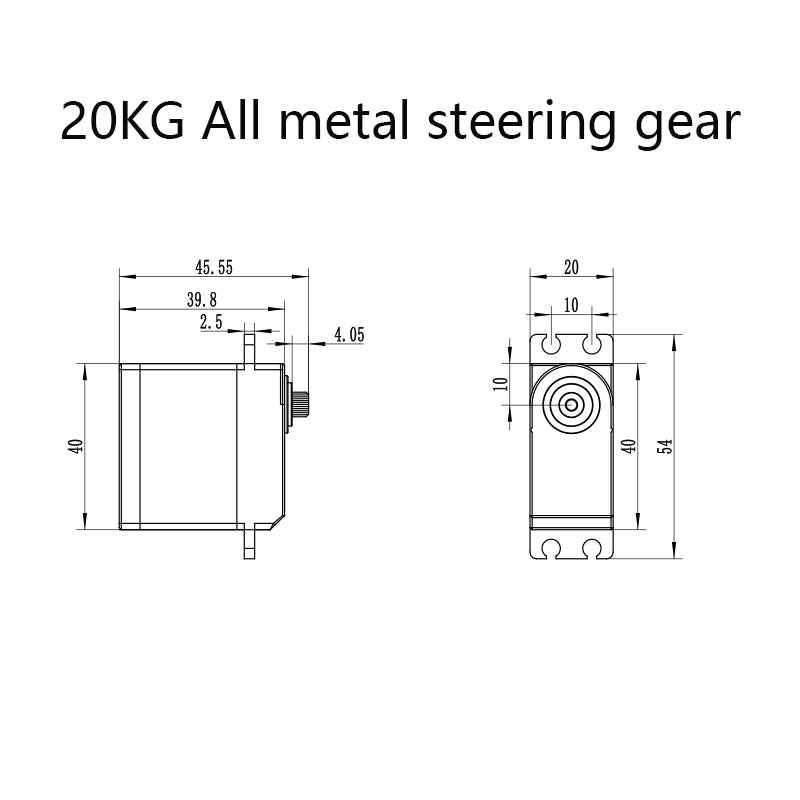

Size：40 x 20 x 39.8mm
| Products Name:QX-6120MG Digital servo | Products No. | ||
| 1. Apply Environmental Conditon | |||
| No. | Item | Specifcation | |
| 1.1 | Storage Temperature Range | -30°C～80°C | |
| 1.2 | Operating Temperature Range | -25°C～70°C | |
| 2. Standard Test Environment | |||
| No. | Item | Specifcation | |
| 2.1 | Temperature Range | -25°C～70°C | |
| 2.2 | Humidity Range | 65%±10% | |
| 3. Mechanical Specification | |||
| No. | Item | Specifcation | |
| 3.1 | Size | 40.0*20.0*39.8mm | |
| 3.2 | Weight | 79g±5% | |
| 3.3 | Gear type | 5 Metal |
|
| 3.4 | Limit angle | 360° | |
| 3.5 | Bearing | 2BB | |

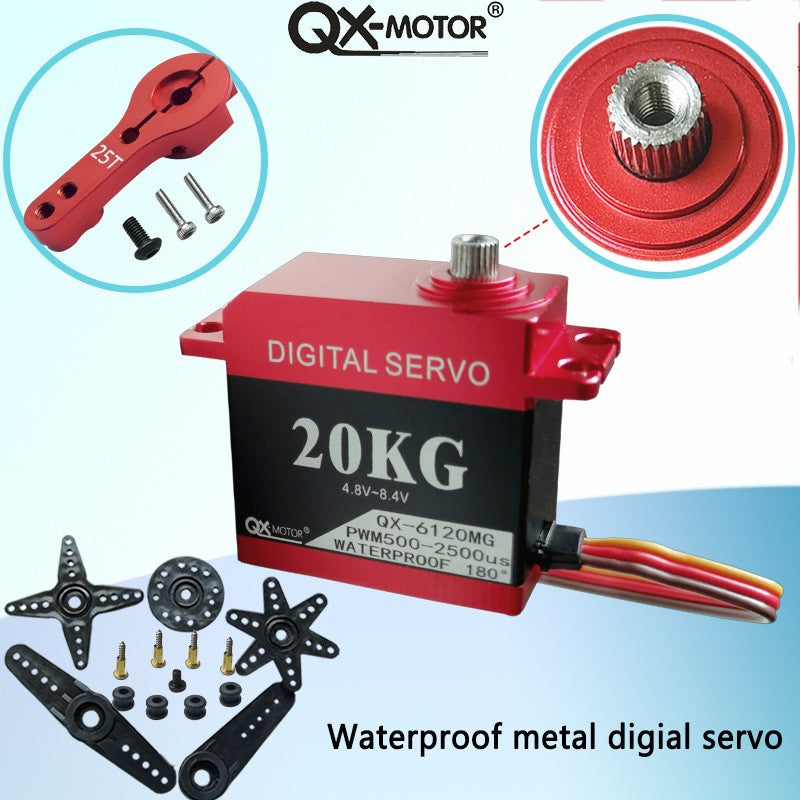

| 3.6 | Horn gear spline | 25T 直径:6.0mm 高4.0mm | |
| 3.7 | Horn type | Plastic, POM | |
| 3.8 | Case | Aluminum alloy |
|
| 3.9 | Connector wire | 320mm±5mm | |
| 3.10 | Motor | Carbon brush motor | |
| 3.11 | Splash water resistance | yes | |
| 4. Electrical Specification | |||
| No. | Operat voltage | 4.8V | 8.4V |
| 4.1 | No load speed | 0.14sec/60° | 0.10sec/60° |
| 4.2 | Runnig current | 210mA | 260mA |
| 4.3 | Peak stall torque | 20.5kg.cm | 23.8kg.cm |
| 4.4 | Stall current | 2600mA±10% | 3400mA±10% |
| 4.5 | Working voltage range | 4.8-8.4V | |
| 5. Control Specification | |||
| No. | Item | Specifcation | |
| 5.1 | Command signal | Pulse width modification | |
| 5.2 | Amplifier type | Digital controller | |
| 5.3 | Pulse width range | 500～2500usec | |
| 5.4 | Neutral position | 1500usec | |
| 5.5 | Running degree | 180°±3°(when 500～2500usec) | |
| 5.6 | Dead band width | 5 usec | |
| 5.7 | Rotating direction | Counterclockwise (when 1000～2000usec) | |
