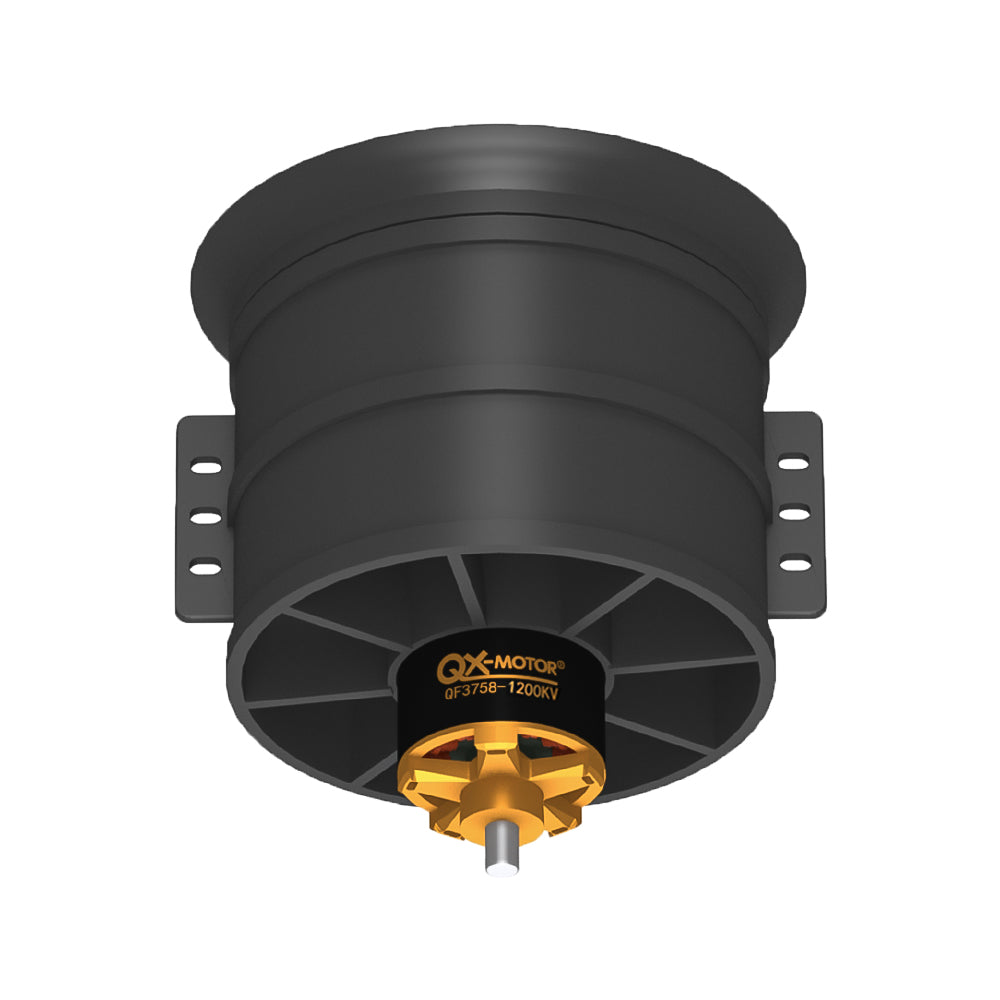

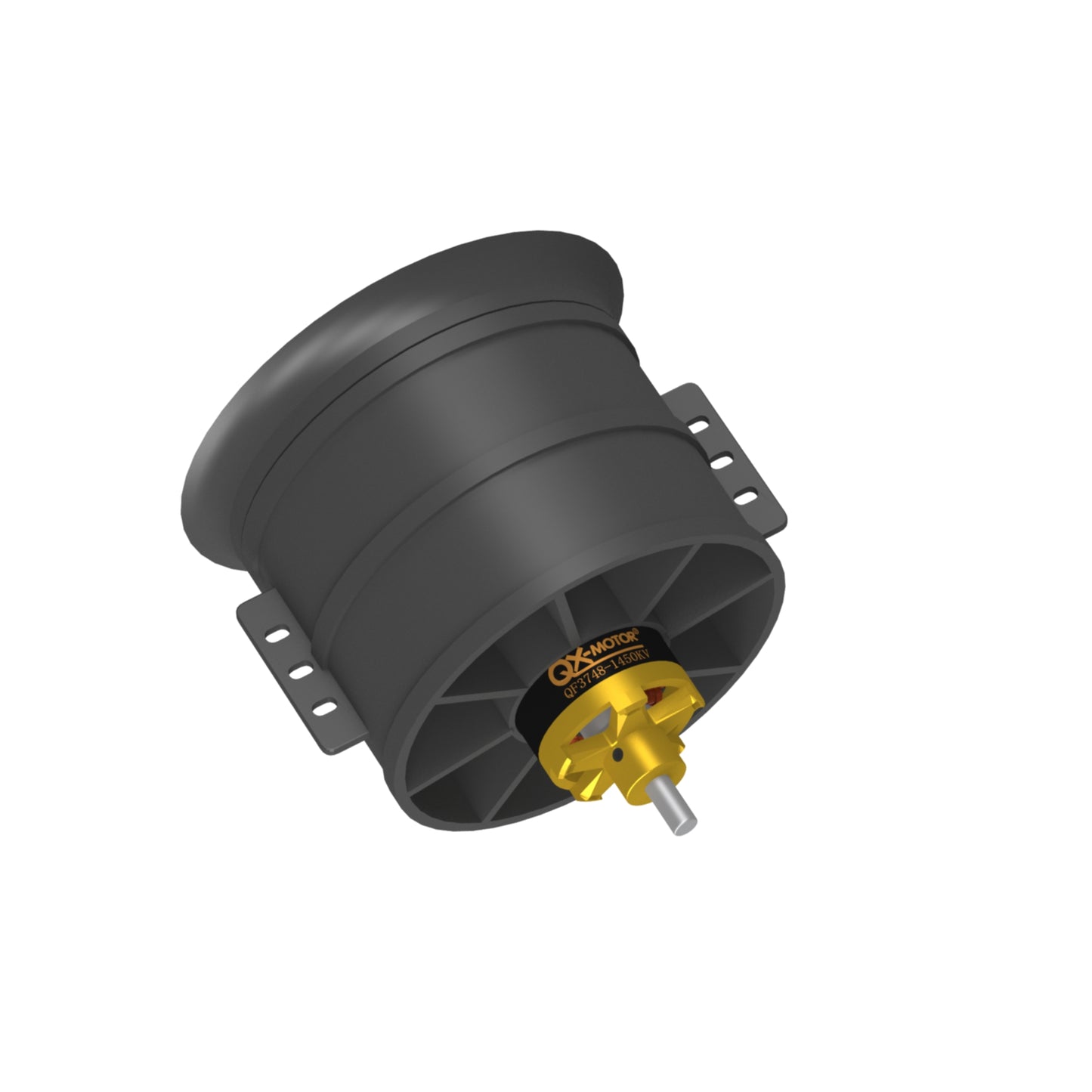

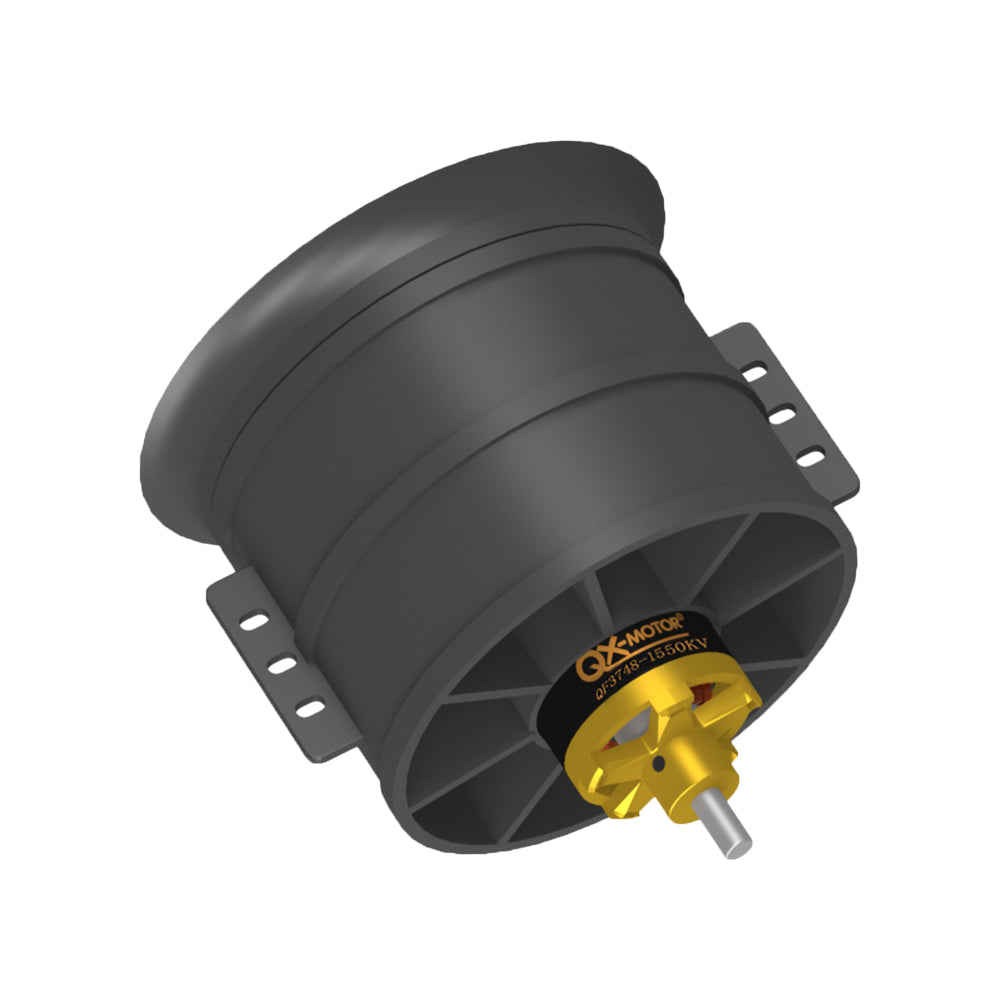

QX-MOTOR 90mm 12-Blades Ducted Fan EDF CW CCW 3748 3758 6S 12S Brushless Motor for RC Airplane Ducted Fan Plane Fixed-Wing FMS

QX-MOTOR 90mm 12-Blades Ducted Fan EDF CW CCW 3748 3758 6S 12S Brushless Motor for RC Airplane Ducted Fan Plane Fixed-Wing FMS

$72.99 USD
$72.99 USD
Sale Sold out
90mm edf.

QX-MOTOR 90mm 12-Blades Ducted Fan EDF CW CCW 3748 3758 6S 12S Brushless Motor for RC Airplane Ducted Fan Plane Fixed-Wing FMS

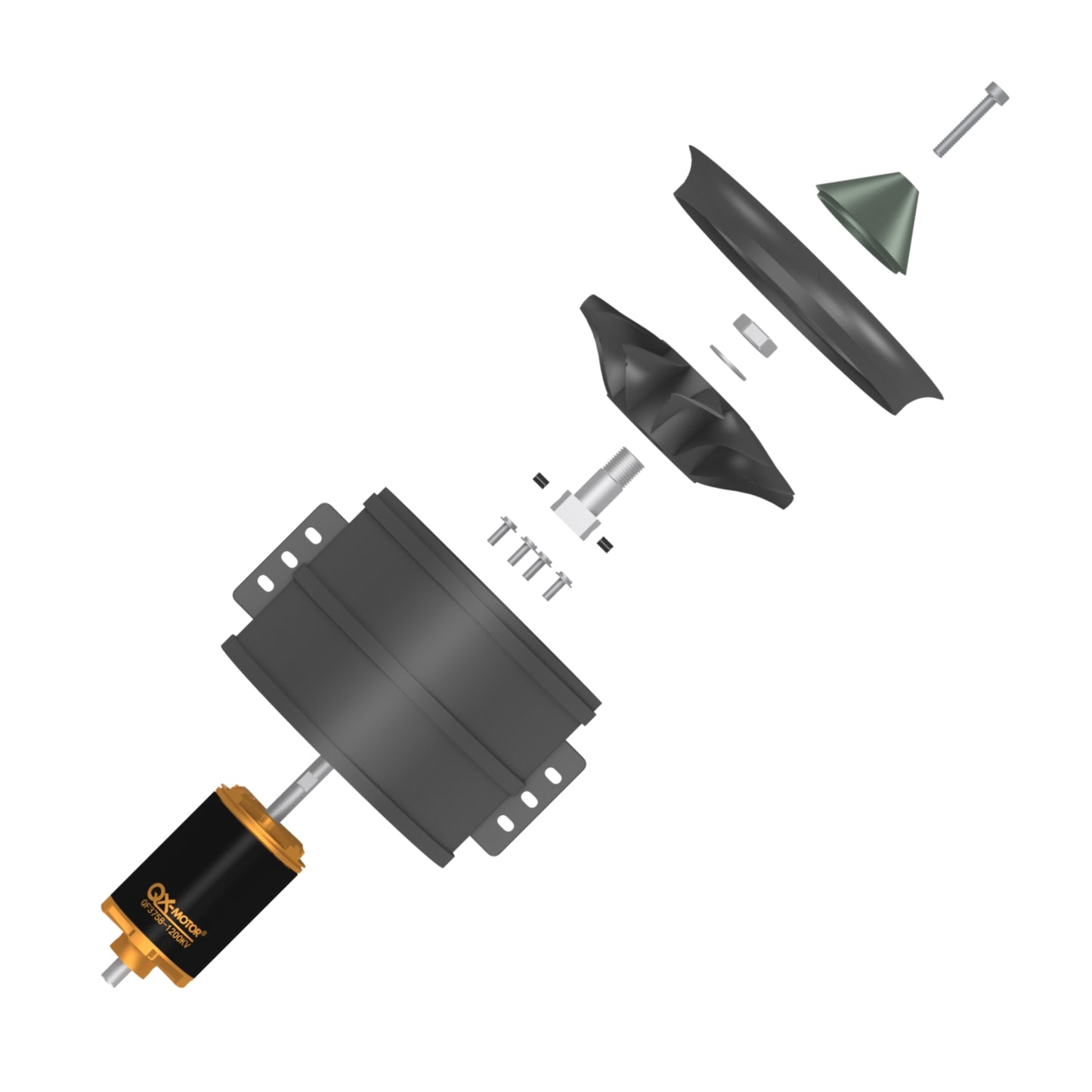

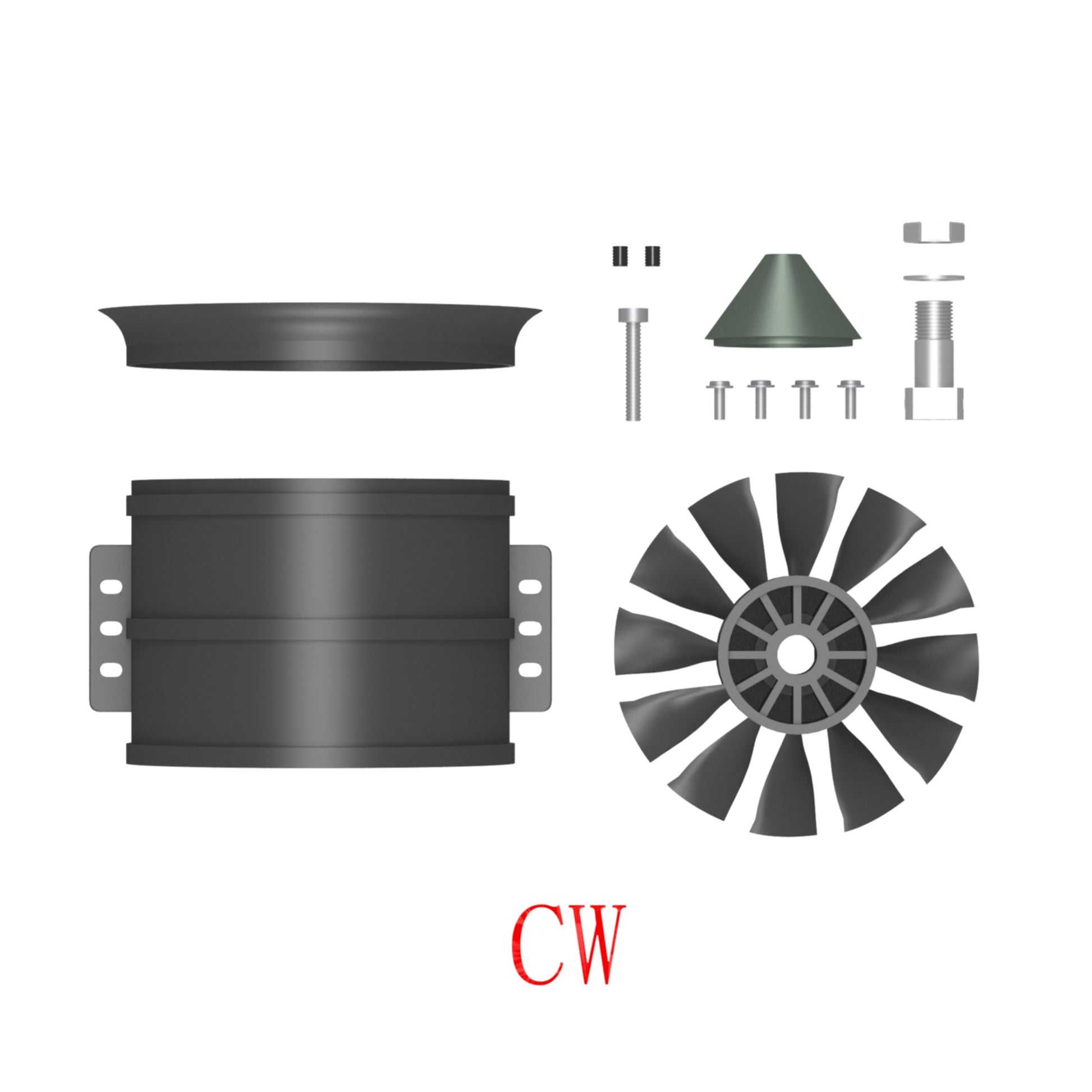

The QX-MOTOR 90mm culvert is paired with a high-performance brushless DC motor, which uses imported silicon steel sheets from Japan and NMB bearings from Japan. The culvert adopts high-end composite materials and is designed with 12 CW CCW blades, which have a high appearance value. Powerful and efficient! The temperature is low.

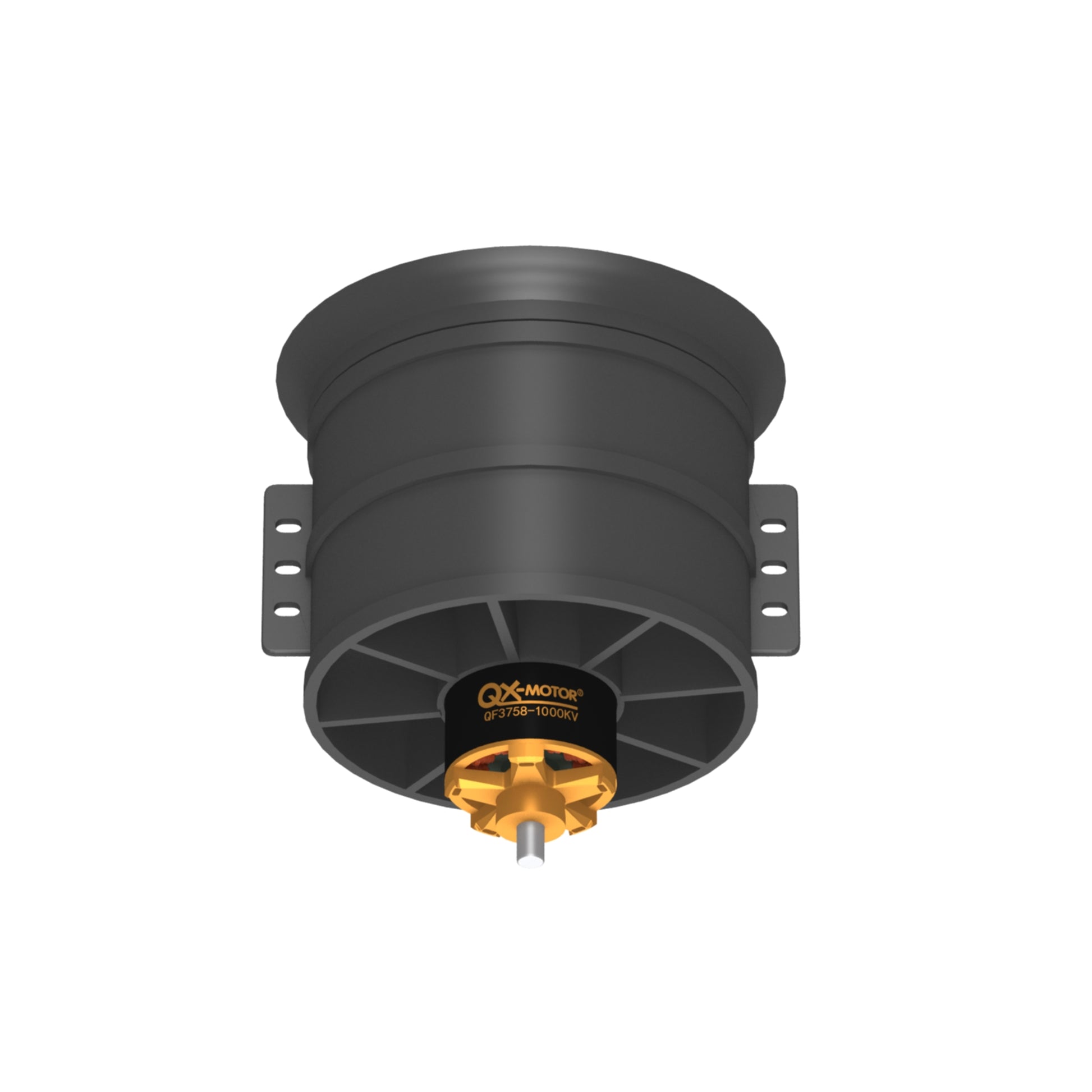

90mm edf 12S


model


QF3758




ＫＶ(rpm)



1000KV




Configu-ration

12Ｎ8Ｐ




Shaft Diameter

6.0mm




motor Diameter

37mm




weight(g)

430g




No.f cells

12ＳＬipo




(Ｗ)max continuous power/10S

3200W




(Ａ)max continuous current/10S

80Ａ




Prop

Volts (V)

Amps (A)

Watts (W)

Thrust (g)

Thrust (oz)

Efficiency
(g/W)

Efficiency
(oz/W)

Throttle

motor model

ESC

90MM EDF（12blade）

44.4

22.0

976.8

2300

81.13

2.35

0.08

40%

QF3758-1000KV

100A

32.0

1420.8

2950

104.06

2.08

0.07

60%

42.0

1864.8

3500

123.46

1.88

0.07

70%

52.0

2308.8

4100

144.62

1.78

0.06

80%

62.0

2752.8

4600

162.26

1.67

0.06

90%

72.0

3196.8

4900

172.84

1.53

0.05

100%


90mm edf 8S


model


QF3758




ＫＶ(rpm)



1200KV




Configu-ration

12Ｎ8Ｐ




Shaft Diameter

6.0mm




motor Diameter

37mm




weight(g)

430g




No.f cells

8ＳＬipo




(Ｗ)max continuous power/10S

2800W




(Ａ)max continuous current/10S

100Ａ




Prop

Volts (V)

Amps (A)

Watts (W)

Thrust (g)

Thrust (oz)

Efficiency
(g/W)

Efficiency
(oz/W)

Throttle

motor model

ESC

90MM EDF（12blade）

29.6

33.0

976.8

2200

77.60

2.25

0.08

40%

QF3758-1200KV

120A

43.0

1272.8

2600

91.71

2.04

0.07

50%

53.0

1568.8

3150

111.11

2.01

0.07

60%

63.0

1864.8

3550

125.22

1.90

0.07

70%

73.0

2160.8

3950

139.33

1.83

0.06

80%

83.0

2456.8

4300

151.68

1.75

0.06

90%

93.0

2752.8

4500

158.73

1.63

0.06

100%

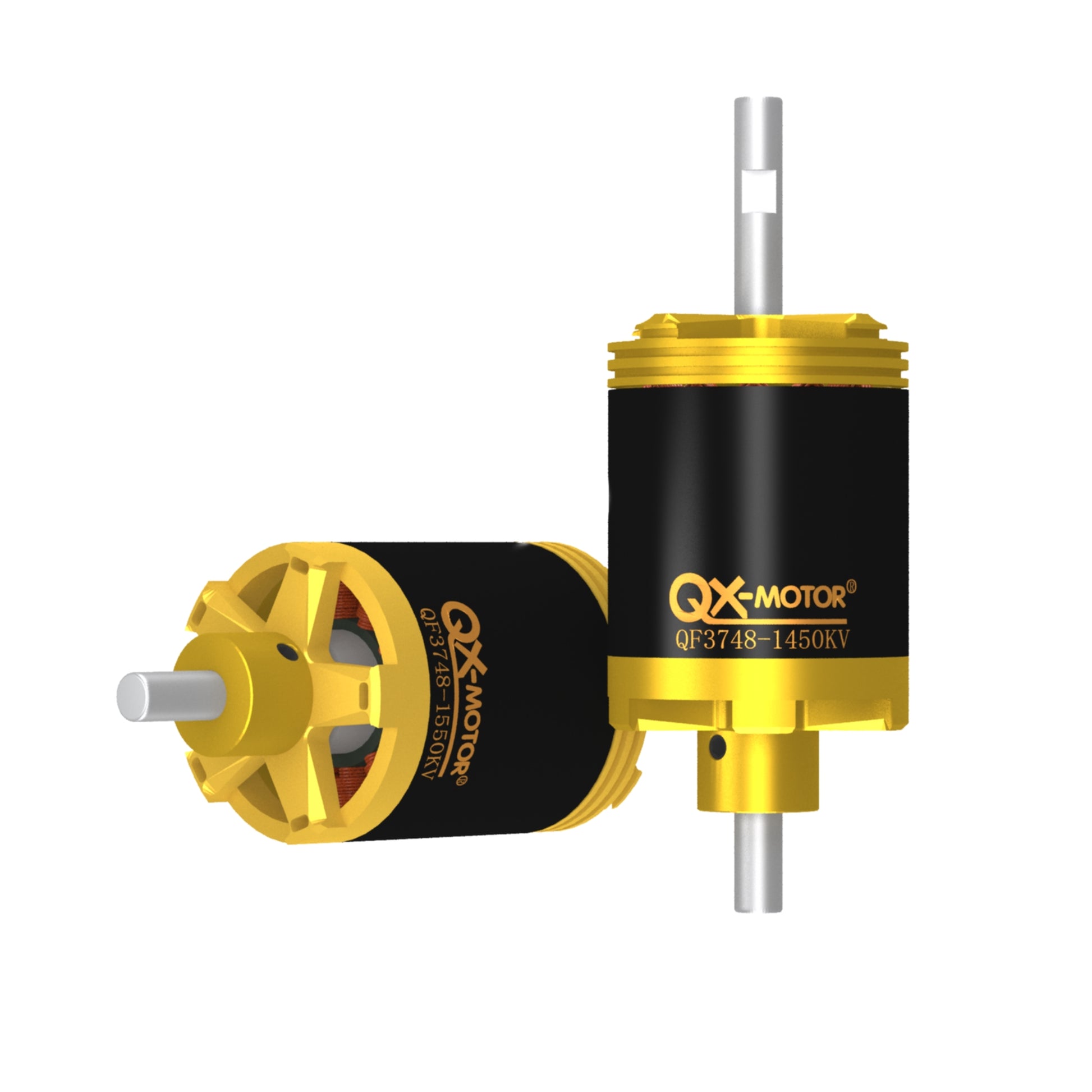

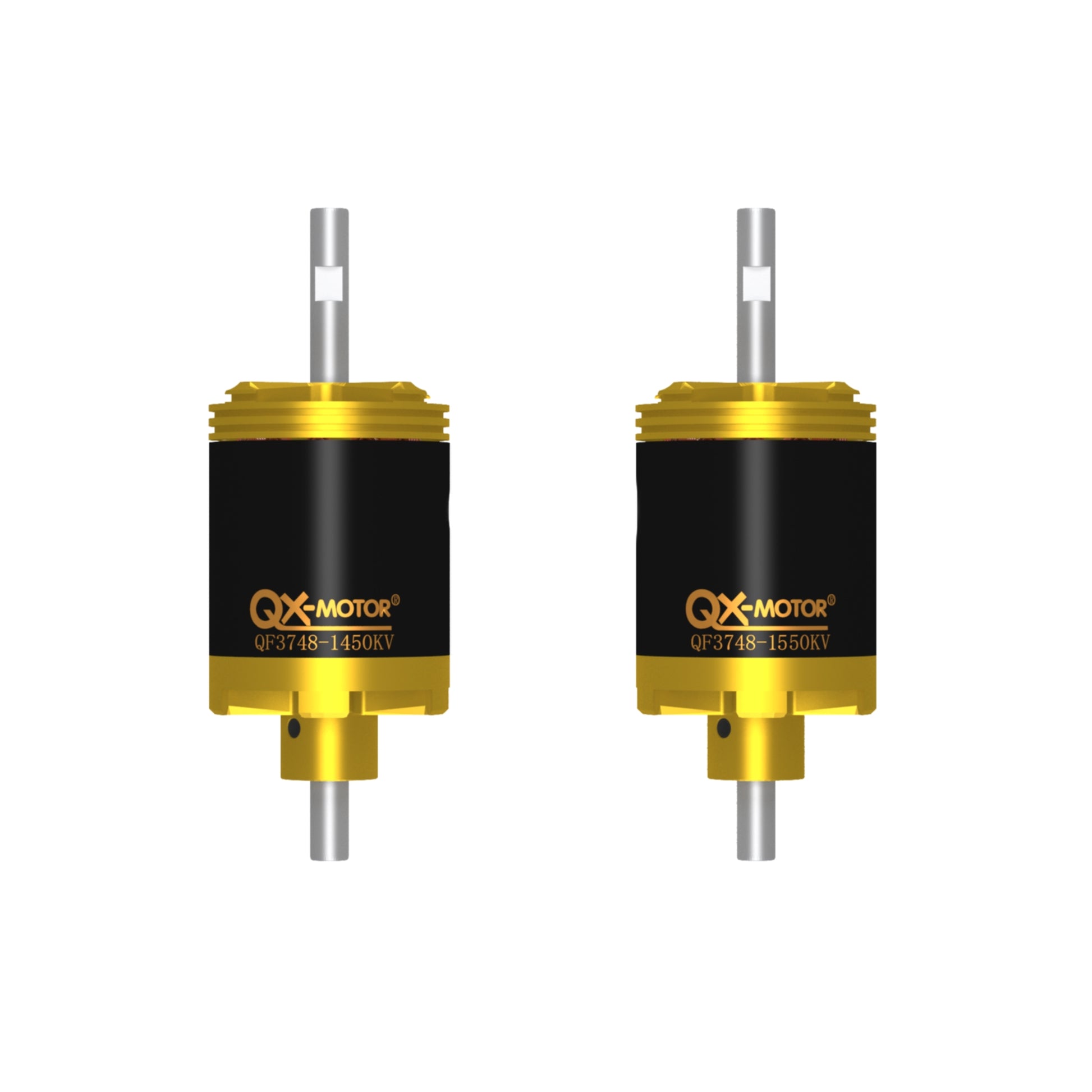

90mm edf 6S

model


QF3748




ＫＶ(rpm)


1450KV




Configu-ration

12Ｎ10Ｐ




Shaft Diameter

6.0mm




motor Diameter

37mm




weight(g)

372g




No.f cells

6ＳＬipo




(Ｗ)max continuous power/10S

2000W




(Ａ)max continuous current/10S

90Ａ




Prop

Volts (V)

Amps (A)

Watts (W)

Thrust (g)

Thrust (oz)

Efficiency
(g/W)

Efficiency
(oz/W)

Throttle

motor model

ESC

90MM EDF（12blade）

22.2

28.0

621.6

1600

56.44

2.57

0.09

40%

QF3748-1450KV

100A

38.0

843.6

2000

70.55

2.37

0.08

50%

48.0

1065.6

2350

82.89

2.21

0.08

60%

58.0

1287.6

2750

97.00

2.14

0.08

70%

68.0

1509.6

3050

107.58

2.02

0.07

80%

78.0

1731.6

3350

118.17

1.93

0.07

90%

88.0

1953.6

3500

123.46

1.79

0.06

100%

model


QF3748




ＫＶ(rpm)



1550KV




Configu-ration

12Ｎ10Ｐ




Shaft Diameter

6.0mm




motor Diaeter

37mm




weight(g)

372g




No.f cells

6ＳＬipo




(Ｗ)max continuous power/10S

2300W




(Ａ)max continuous current/10S

100Ａ




Prop

Volts (V)

Amps (A)

Watts (W)

Thrust (g)

Thrust (oz)

Efficiency
(g/W)

Efficiency
(oz/W)

Throttle

motor model

ESC

90MM EDF（12blade）

22.2

40.0

888

1800

63.49

2.03

0.07

40%

QF3748-1550KV

120A

50.0

1110

2200

77.60

1.98

0.07

50%

60.0

1332

2750

97.00

2.06

0.07

60%

70.0

1554

3100

109.35

1.99

0.07

70%

80.0

1776

3400

119.93

1.91

0.07

80%

90.0

1998

3650

128.75

1.83

0.06

90%

100.0

2220

3800

134.04

1.71

0.06

100%
