QX-MOTOR New Model Aircraft Accessories 80mm EDF CW CCW 12 Blade 6S 12S Brushless Motor for FMS Freewing Jet Aircraft
QX-MOTOR New Model Aircraft Accessories 80mm EDF CW CCW 12 Blade 6S 12S Brushless Motor for FMS Freewing Jet Aircraft
Couldn't load pickup availability
QX-MOTOR New Model Aircraft Accessories 80mm EDF CW CCW 12 Blade 6S 12S Brushless Motor for FMS Freewing Jet Aircraft

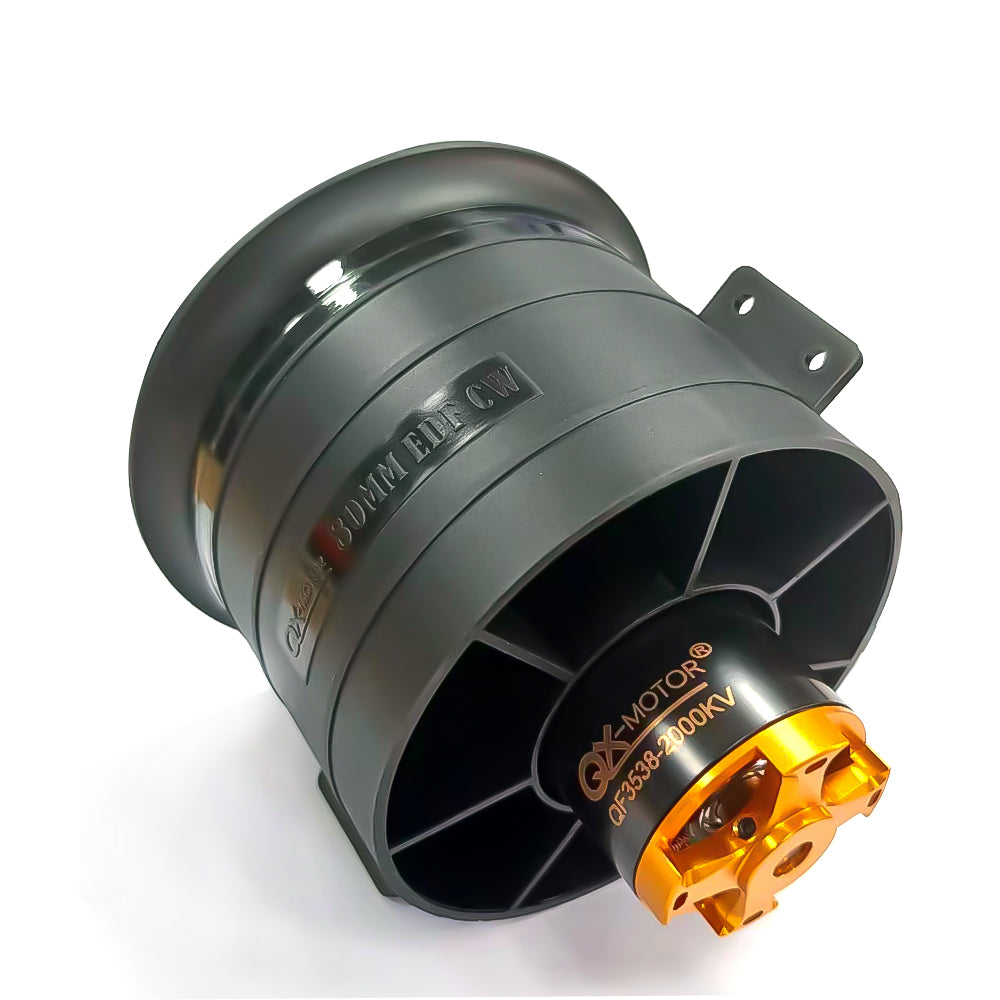

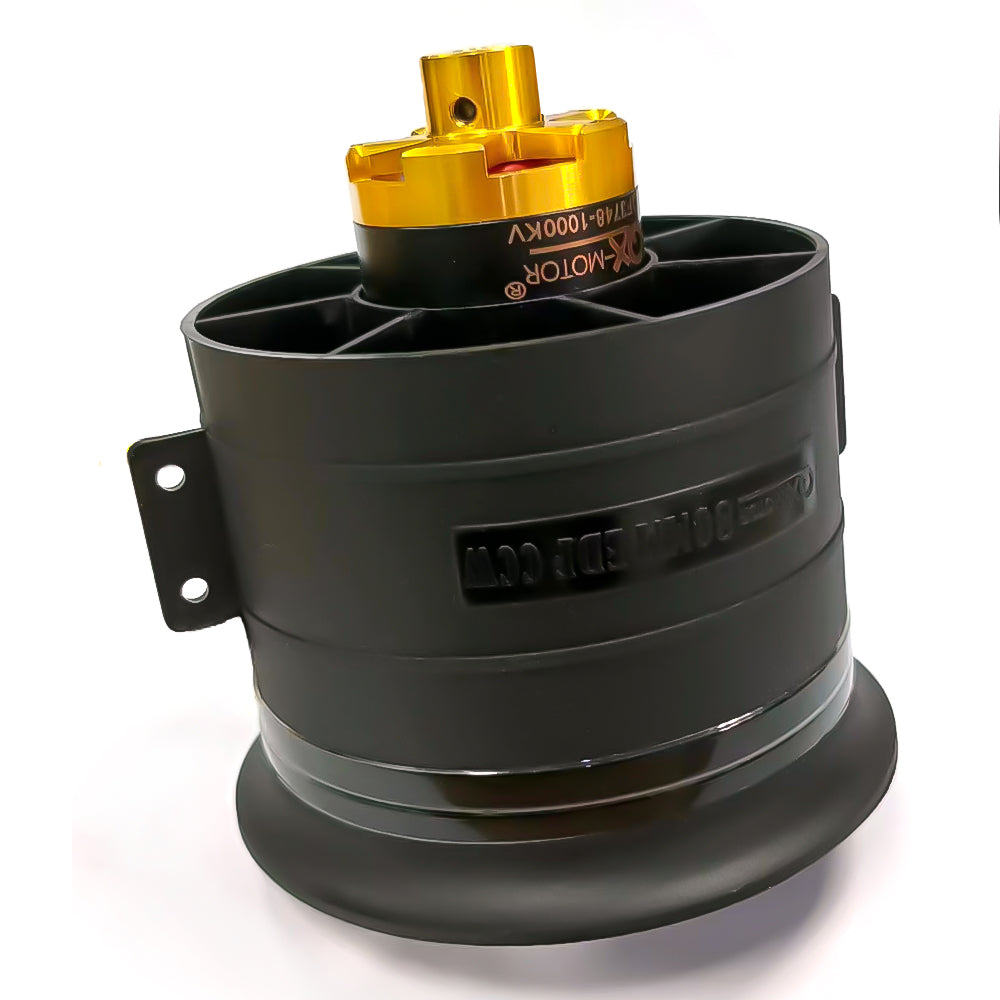

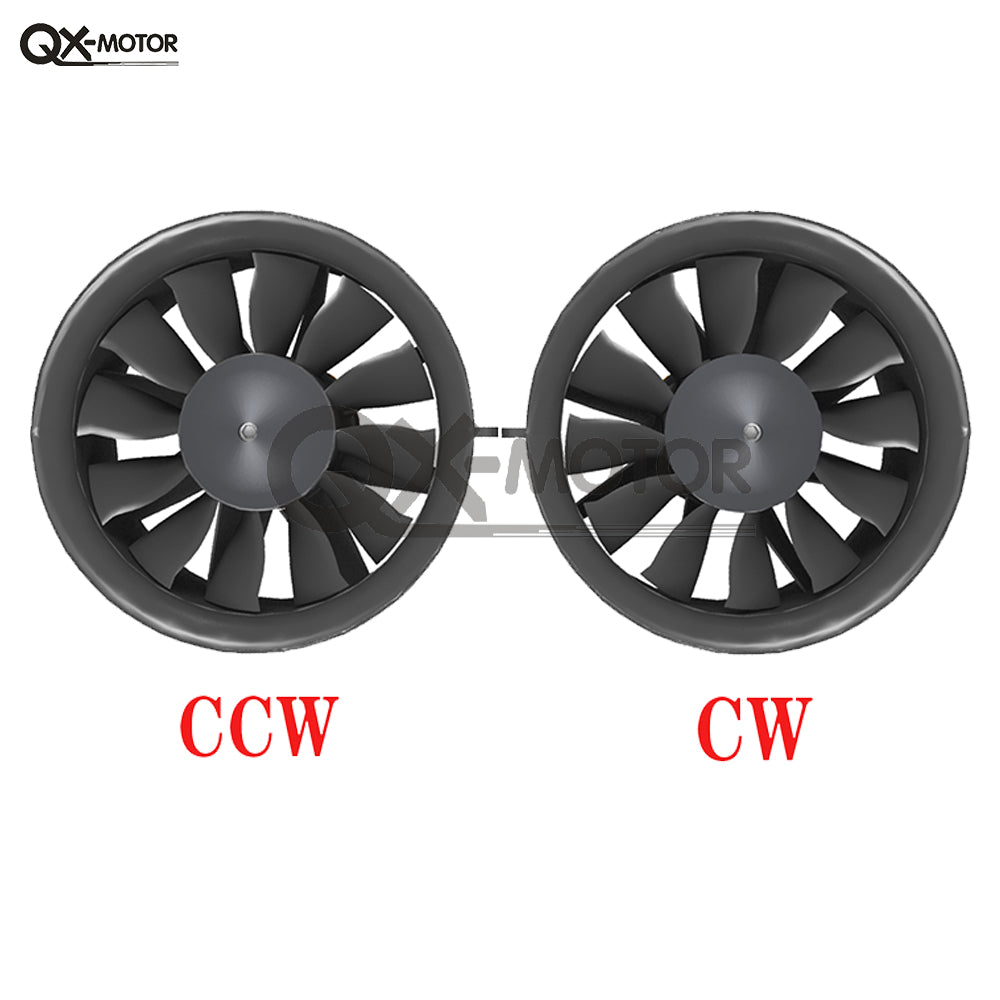

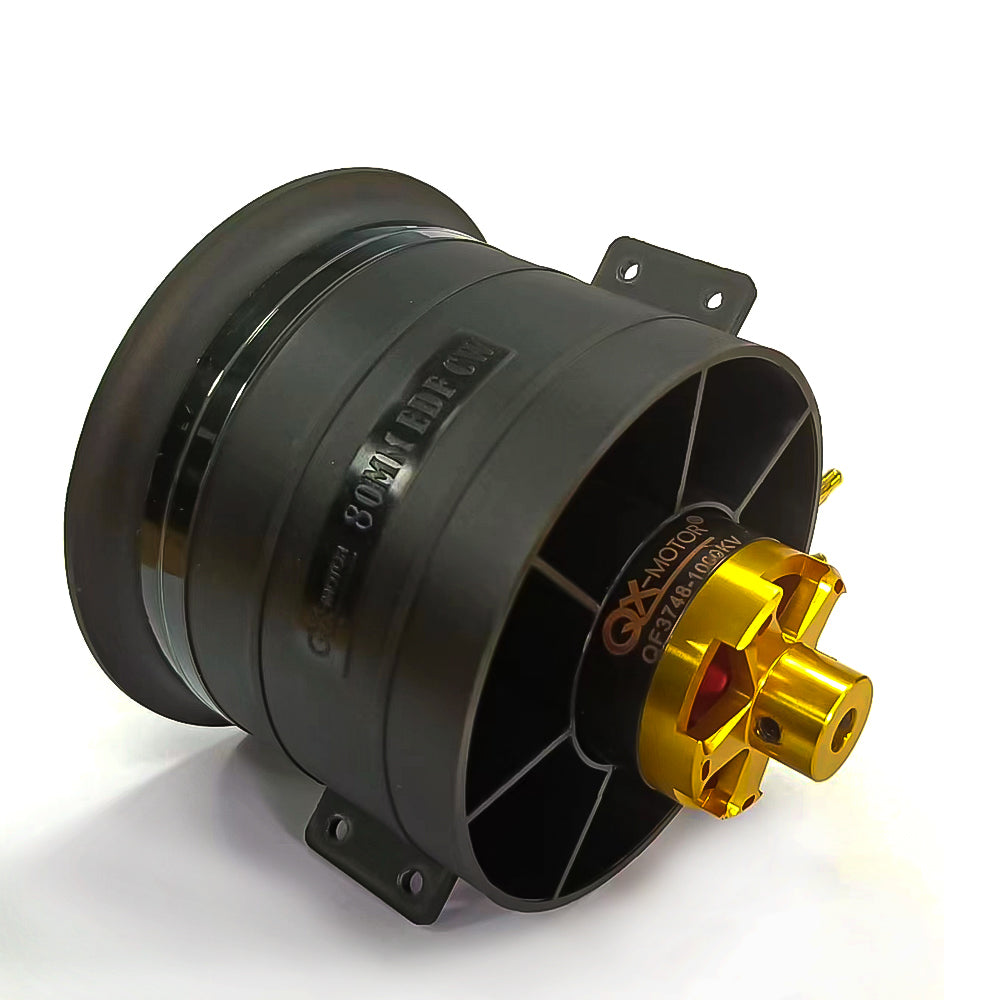

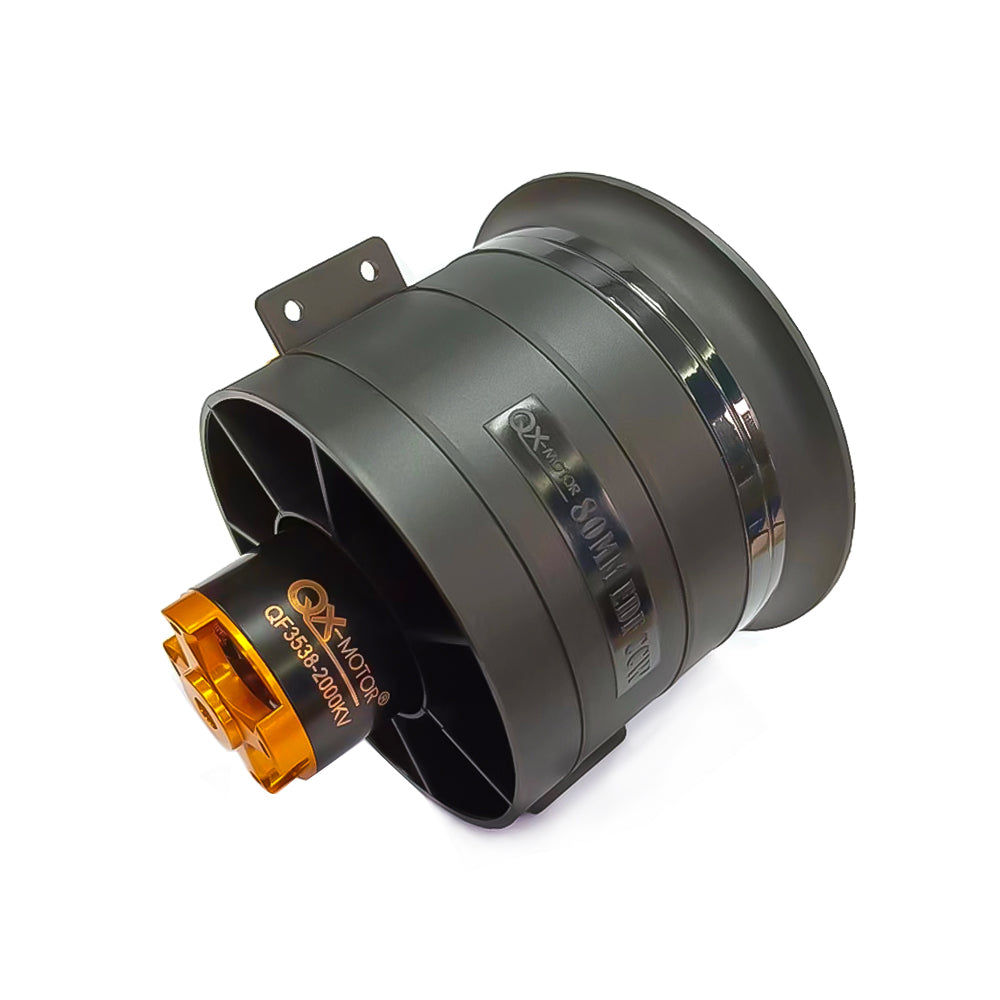

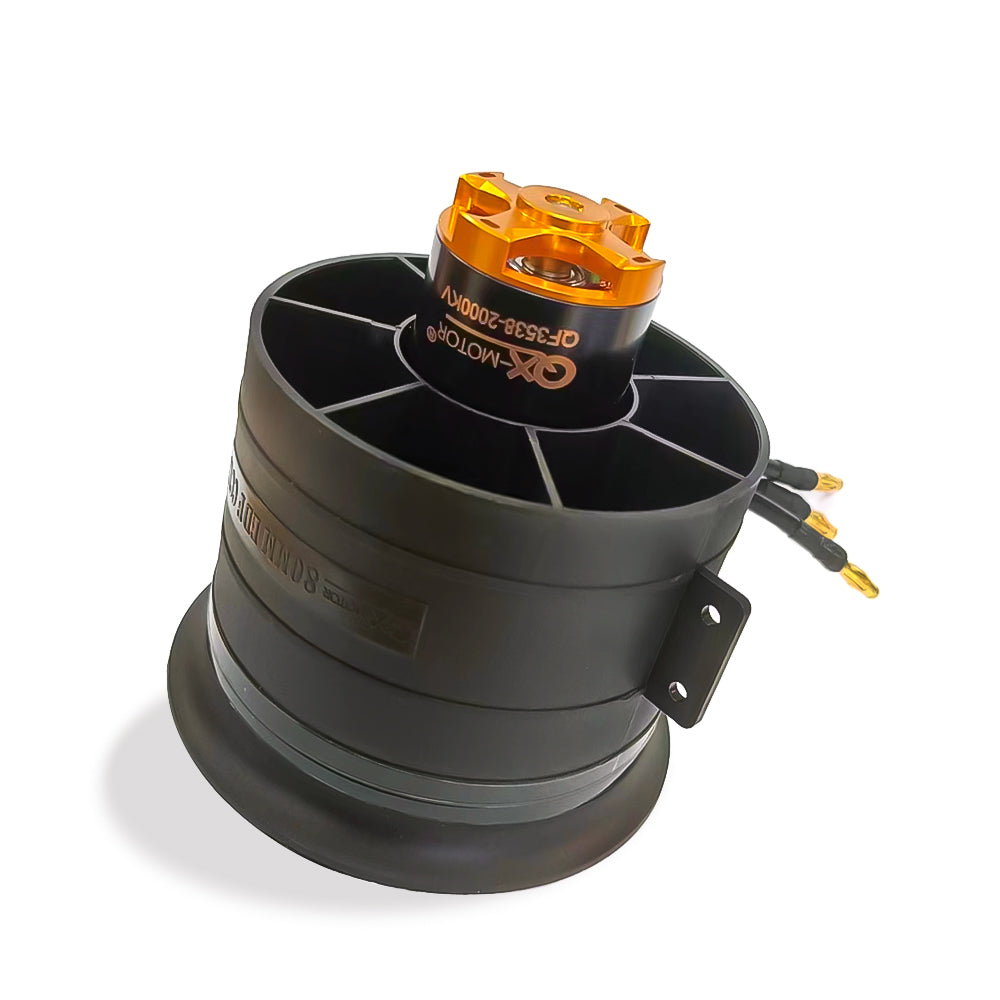

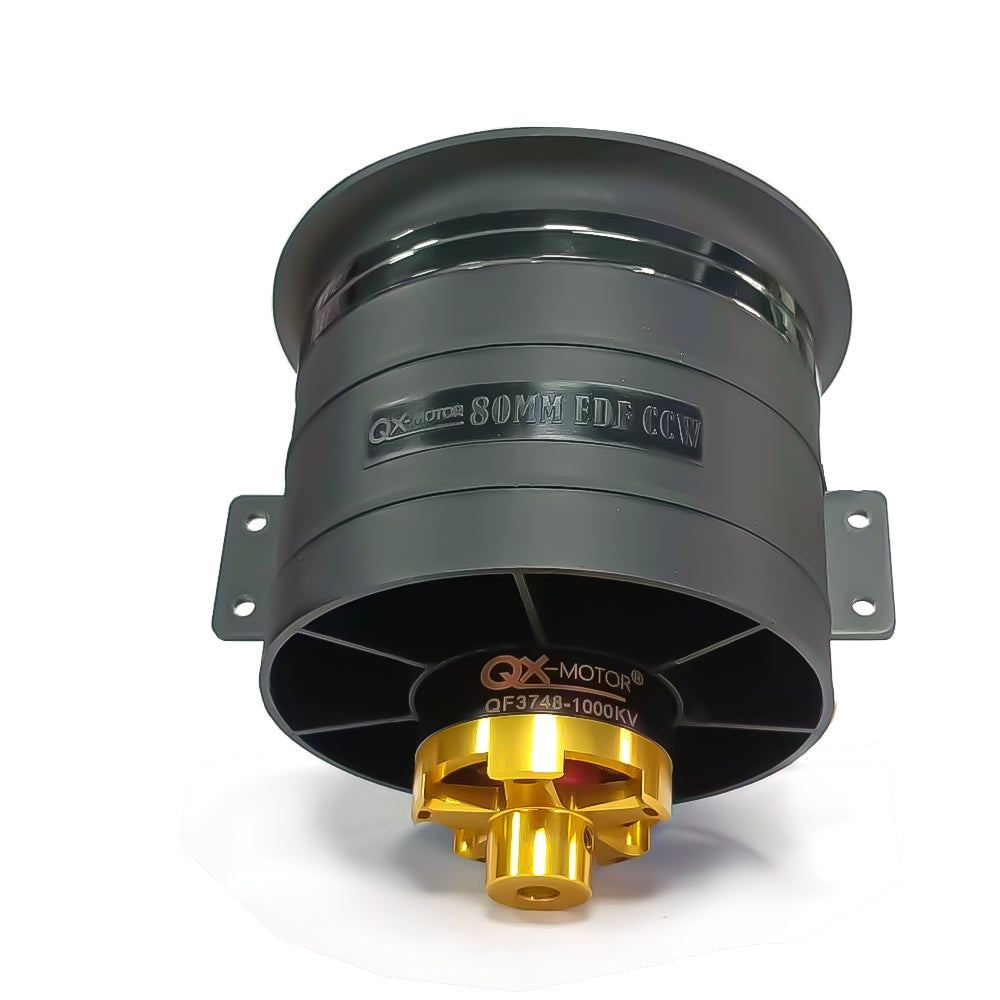

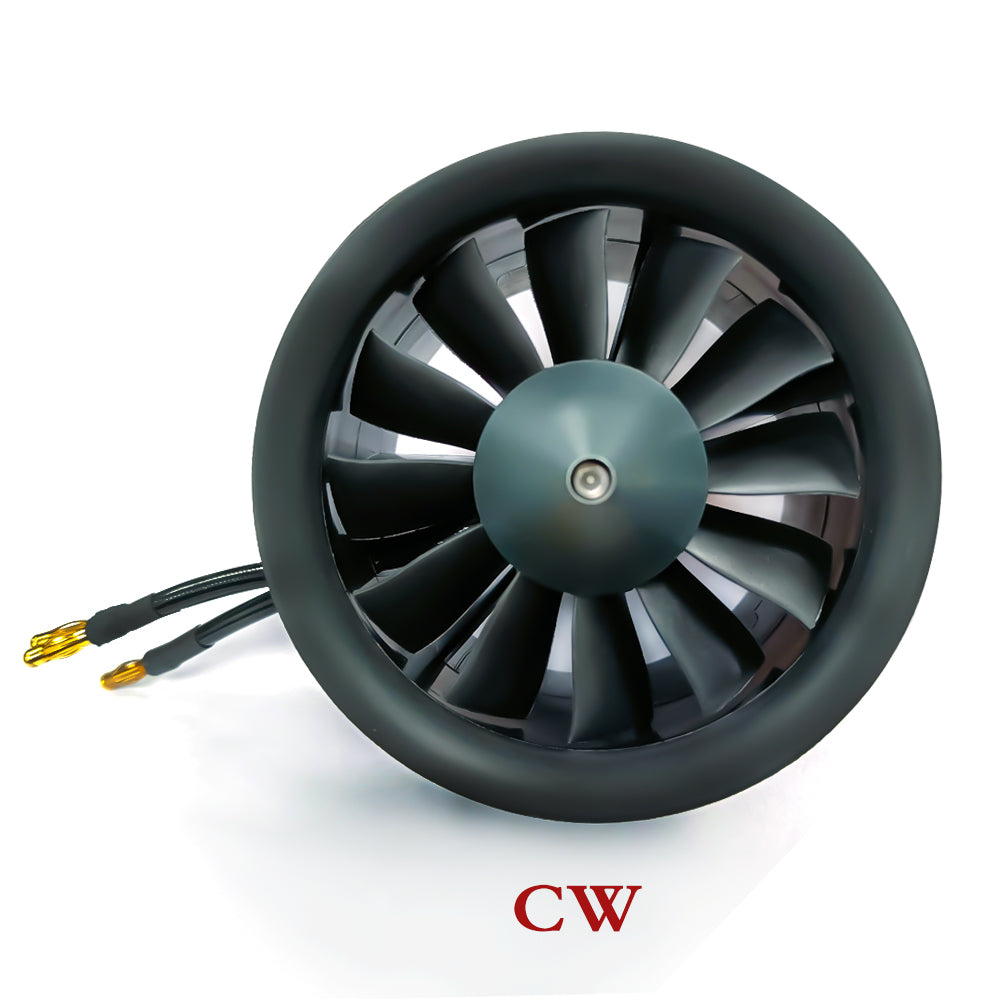

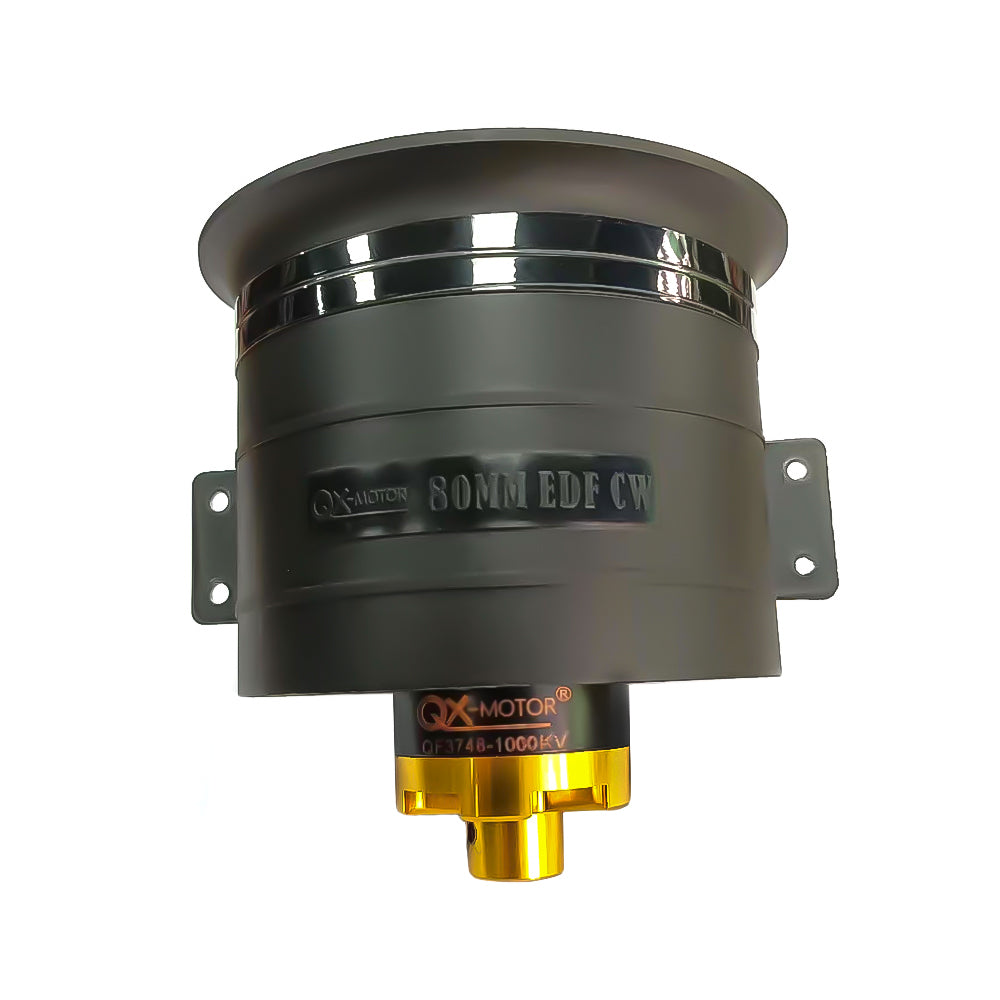

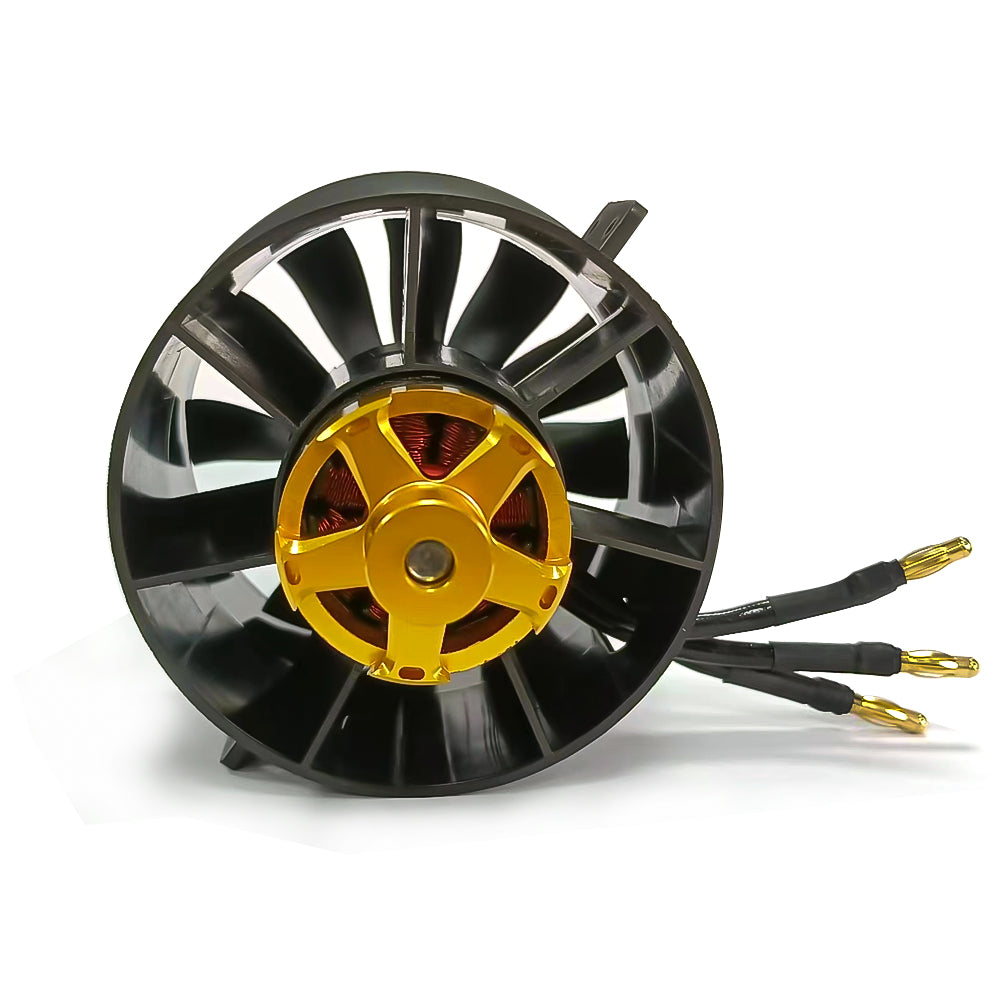

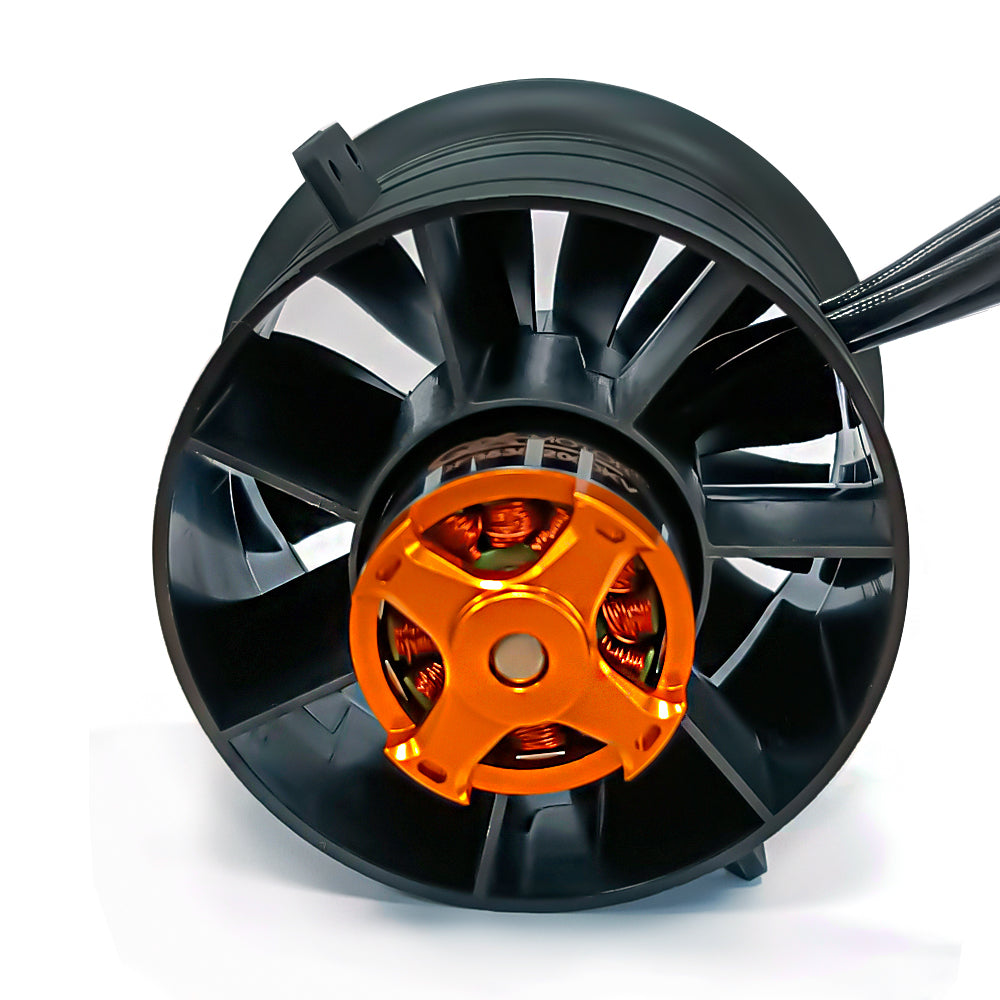

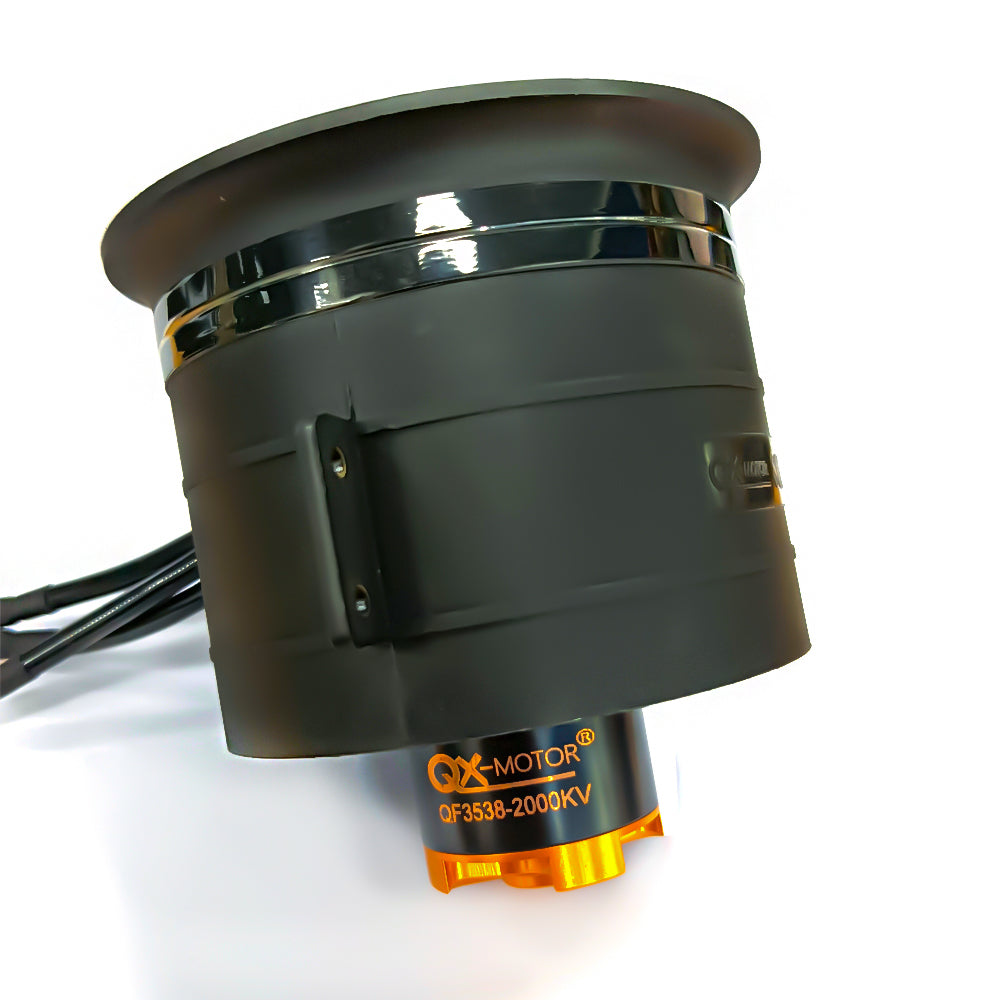

The 80mm culvert is paired with a QF3538-2000K QF3748 1000KV high-performance brushless DC motor, which uses imported silicon steel sheets from Japan and NMB bearings from Japan. the fan adopts high-end composite materials, with 12 CW and CCW blades designed for high appearance. 24V thrust up to 4 kg, powerful and efficient! The temperature is low.QX-MOTOR 80mm EDF with QF3538-2000K QF3748 1000KKV high-performance brushless DC motor, 12-blade, The thrust of up to 4kg, powerful and efficient! The temperature is low.

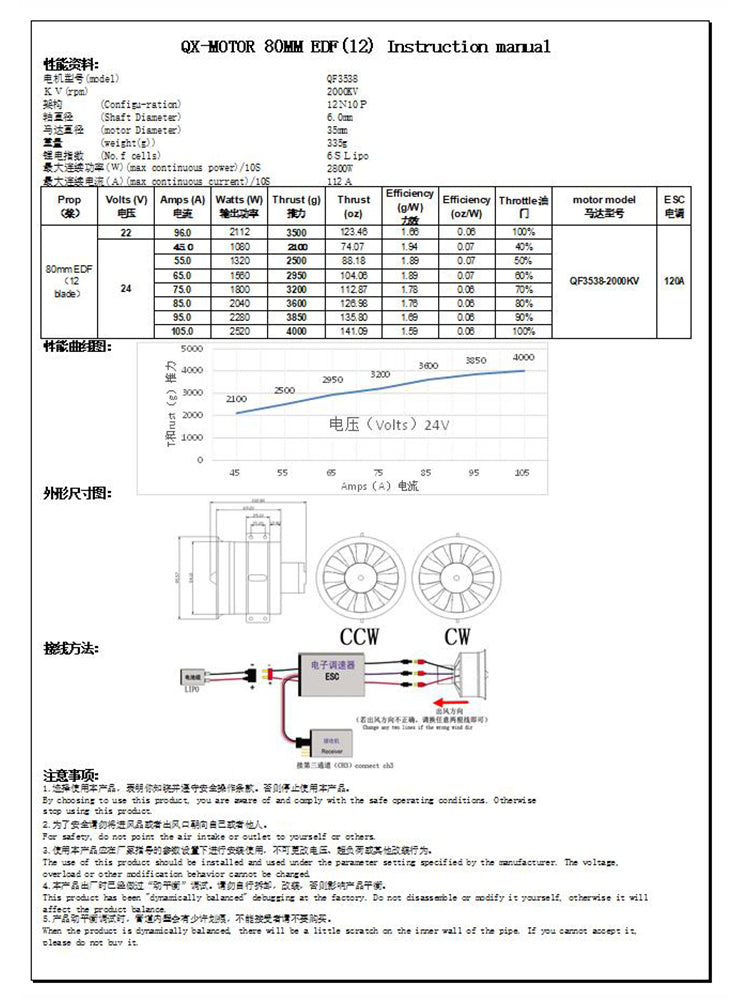

| (model) | QF3538 | |||||||||
| ＫＶ(rpm) | 2000KV | |||||||||
| (Configu-ration) | 12Ｎ10Ｐ | |||||||||
| (Shaft Diameter) | 5.0mm | |||||||||
| (motor Diameter) | 35mm | |||||||||
| (weight(g)) | 335g | |||||||||
| (No.f cells) | 6ＳＬipo | |||||||||
| (Ｗ)(max continuous power)/10S | 2800W | |||||||||
| (Ａ)(max continuous current)/10S | 112Ａ | |||||||||
| Prop | Volts (V) |
Amps (A) |
Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) |
Efficiency (oz/W) |
Throttle | motor model |
ESC |
| 80mm EDF （12 blade） |
22 | 96.0 | 2112 | 3500 | 123.46 | 1.66 | 0.06 | 100% | QF3538-2000KV | 120A |
| 24 | 45.0 | 1080 | 2100 | 74.07 | 1.94 | 0.07 | 40% | |||
| 55.0 | 1320 | 2500 | 88.18 | 1.89 | 0.07 | 50% | ||||
| 65.0 | 1560 | 2950 | 104.06 | 1.89 | 0.07 | 60% | ||||
| 75.0 | 1800 | 3200 | 112.87 | 1.78 | 0.06 | 70% | ||||
| 85.0 | 2040 | 3600 | 126.98 | 1.76 | 0.06 | 80% | ||||
| 95.0 | 2280 | 3850 | 135.80 | 1.69 | 0.06 | 90% | ||||
| 105.0 | 2520 | 4000 | 141.09 | 1.59 | 0.06 | 100% | ||||
