50A 120A QX-motor Waterproof Brushless ESC 2-6S Speed Controller for RC Boat Ship with BEC 5.5V/5A Water Cooling Syste

50A 120A QX-motor Waterproof Brushless ESC 2-6S Speed Controller for RC Boat Ship with BEC 5.5V/5A Water Cooling Syste

The electric regulator has high performance price ratio, adopts high-performance and low-power AVR 8-bit ATmega168 Series MCU, and the maximum working frequency is 20MHz;

● suitable for driving all kinds of three-phase brushless motors on the market, especially for remote control ship models;

● support the maximum 210K erpm speed of brushless motor;

● the starting acceleration can be set, the throttle response speed is fast, and has a very stable speed regulation linearity, which is suitable for various model ships;

● it has a variety of protection functions: low voltage protection, over temperature protection, throttle signal loss protection, locked rotor protection, etc. Better protect the normal and safe use of the equipment;

● automatically identify the number of battery cells, and the low-voltage protection threshold can be set to meet personalized requirements;

● good power on safety performance: when the power is turned on, the motor will not be started immediately regardless of the throttle position of the remote controller;

● cycle menu setting, simple operation, compatible with all remote control operation settings and support programming card settings;

● built in BEC with steering gear, high load power and low power consumption;

● glue filling and waterproof, supporting short-term immersion work (please dry it after immersion to avoid product damage);

● aluminum alloy water cooling and heat dissipation system, which can effectively slow down the temperature rise;

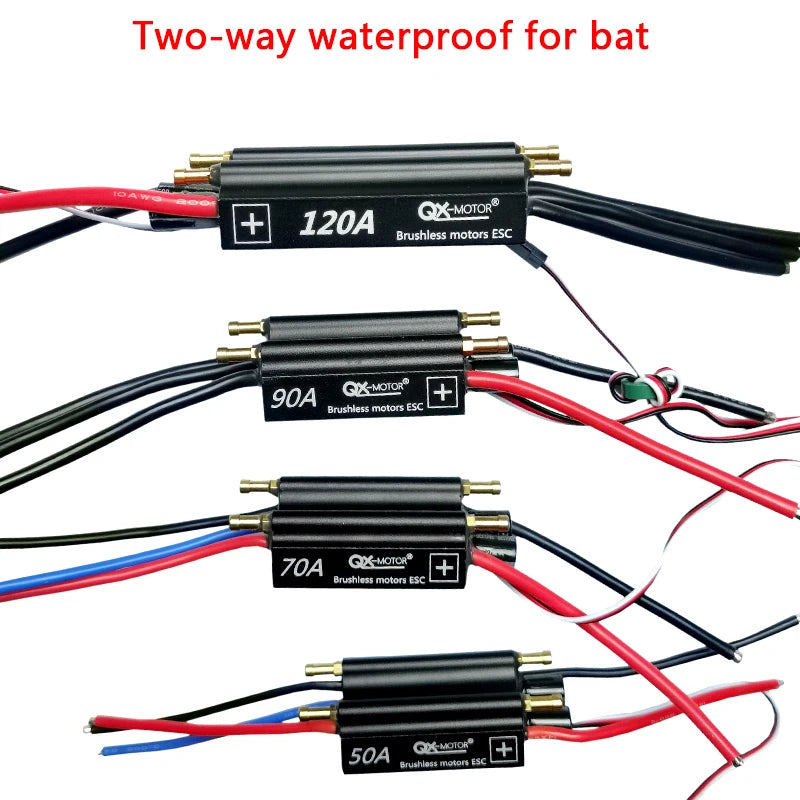

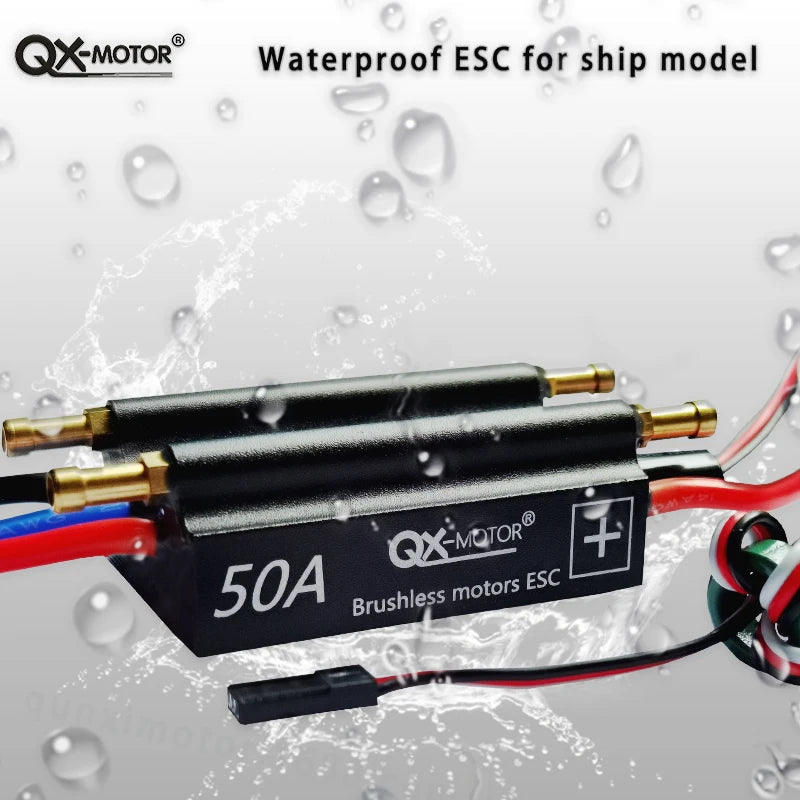

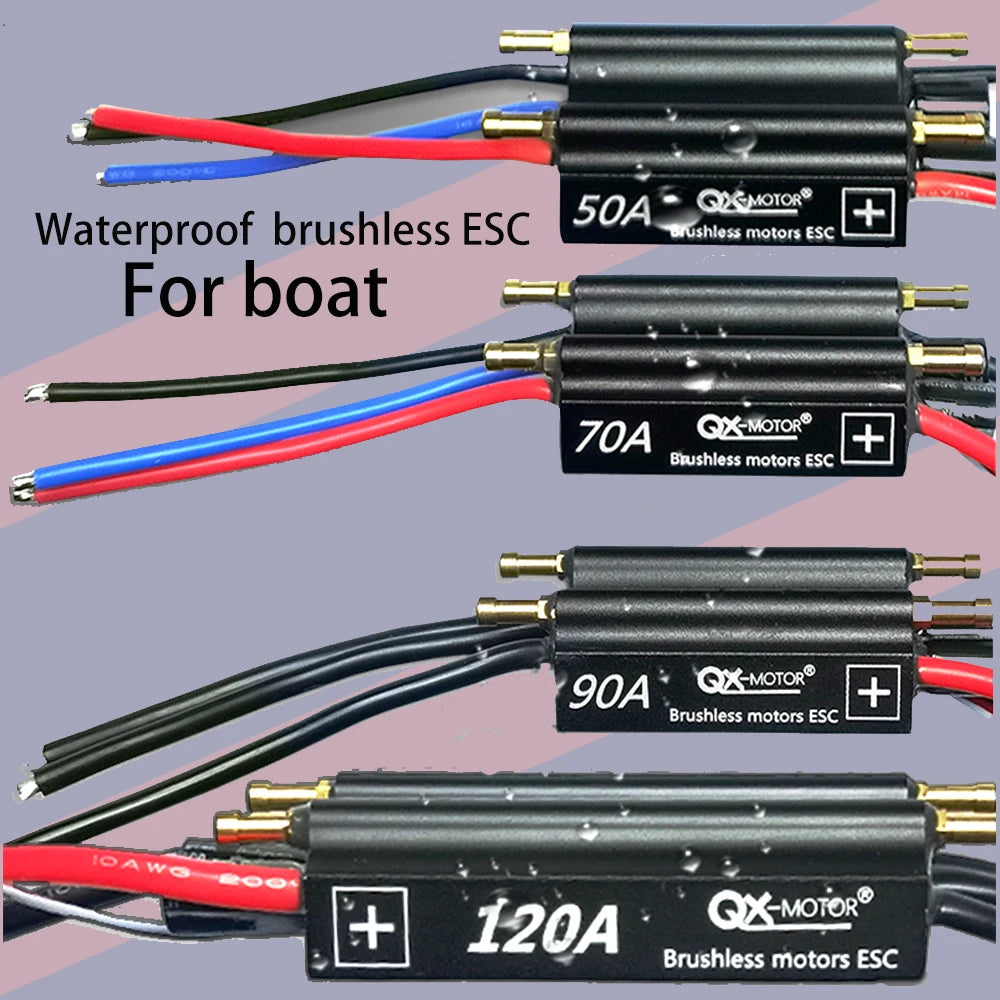

QX motor 50A marine brushless electric regulator

1.Continuous output current: 50A

2. BEC type: linear mode

3. BEC output: 5.5v/5a

4. Input: 2-6s Lipo

5. Weight: 107g

6. Inner diameter / outer diameter of water cooling nozzle: Ф 3.0 /Ф 5.0

7. Dimension (including the length extending out of the water cooling nozzle):86x38x22mm

8. Application: suitable for hull with length < 55cm

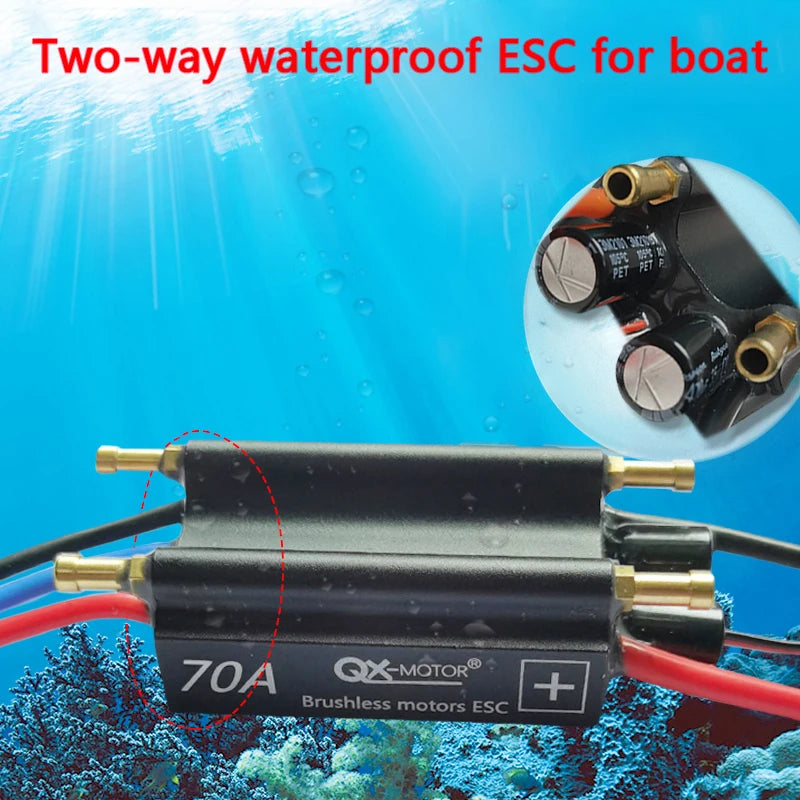

QX motor 70A marine brushless electric regulator

1. Continuous output current: 70A

2. BEC type: linear mode

3. BEC output: 5.5v/5a

4. Input: 2-6s Lipo

5.Weight: 111g

6. Inner diameter / outer diameter of water cooling nozzle: Ф 3.0 /Ф 5.0

7. Dimension (including the length extending out of the water cooling nozzle):86x38x22mm

8. Application: suitable for hull with length < 70cm

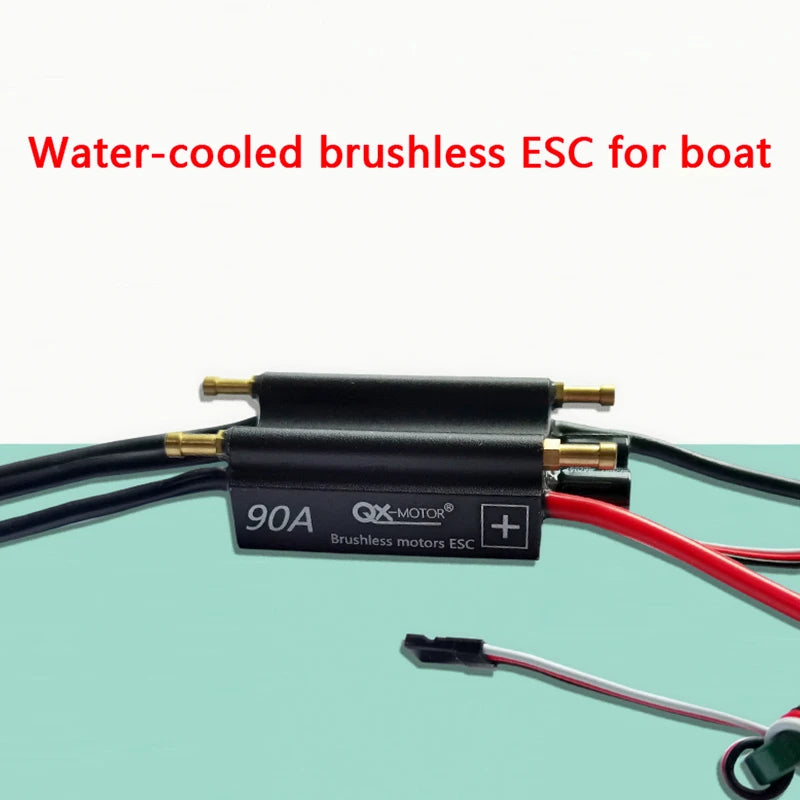

QX motor 90a marine brushless electric regulator

1.Continuous output current: 90a

2. BEC type: linear mode

3. BEC output: 5.5v/5a

4. Input: 2-6s Lipo

5.Weight: 118g

6. Inner diameter / outer diameter of water cooling nozzle: Ф 3.0 /Ф 5.0

7.Dimension (including the length extending out of the water cooling nozzle):86x38x22mm

8.Application: suitable for hull with length < 100cm

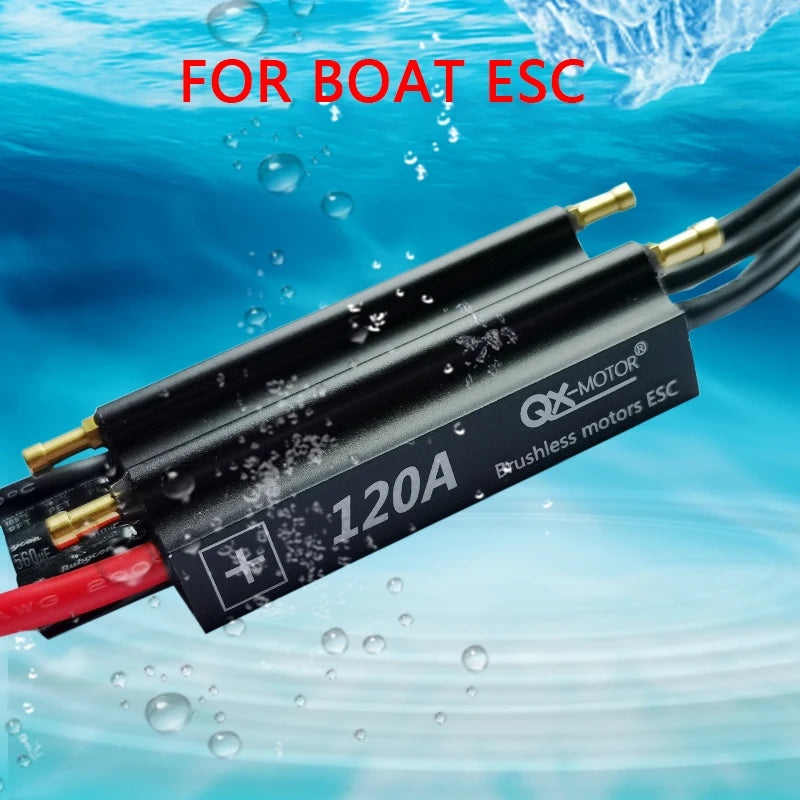

QX motor 120a marine brushless electric regulator

1.Continuous output current: 120a

2. BEC type: linear mode

3. BEC output: 5.5v/5a

4.Input: 2-6s Lipo

5.Weight: 170g

6. Inner diameter / outer diameter of water cooling nozzle: Ф 3.0 /Ф 5.0

7.Dimension (including the length extending out of the water cooling nozzle): 113x45x22mm

8.Application: suitable for hull with length < 120cm
