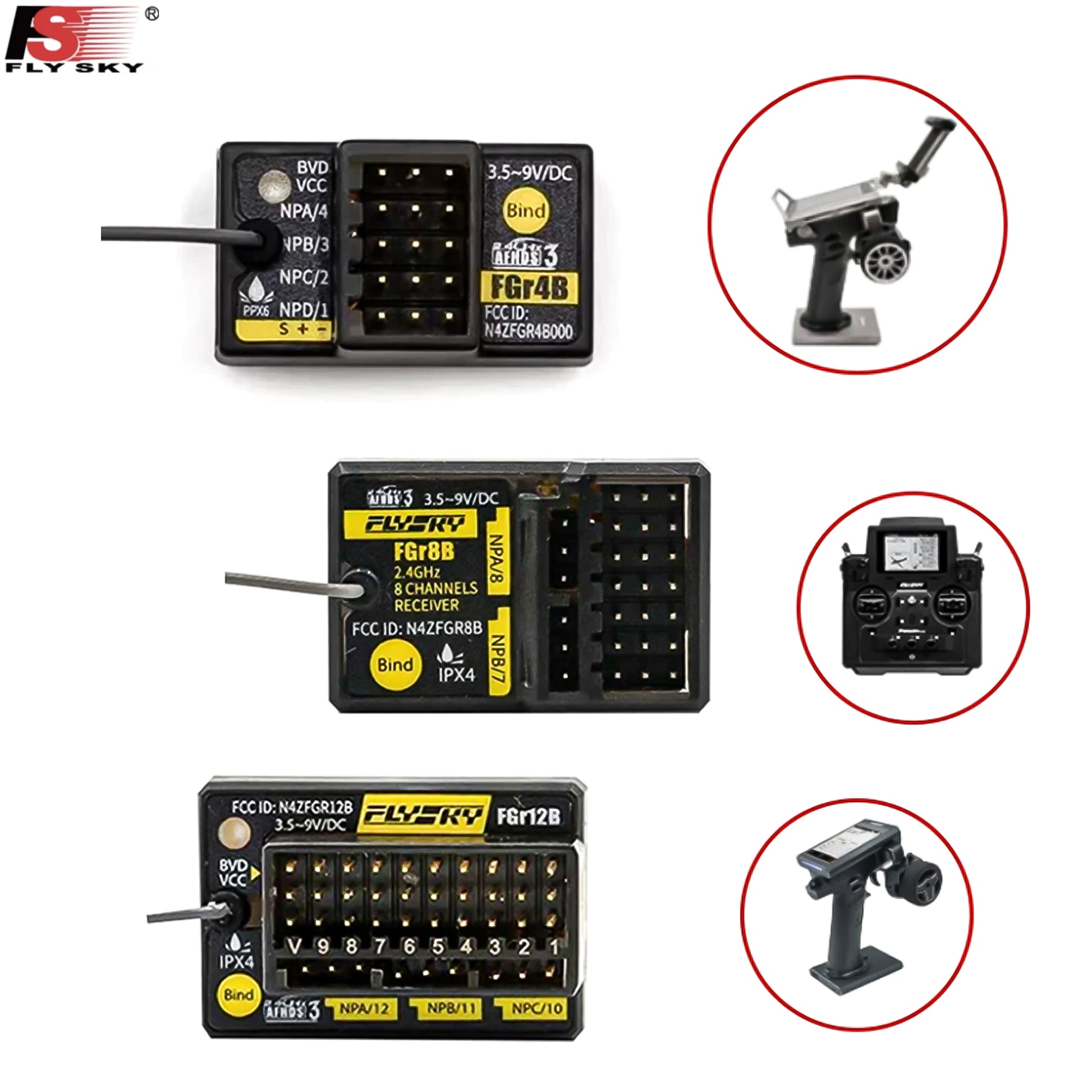

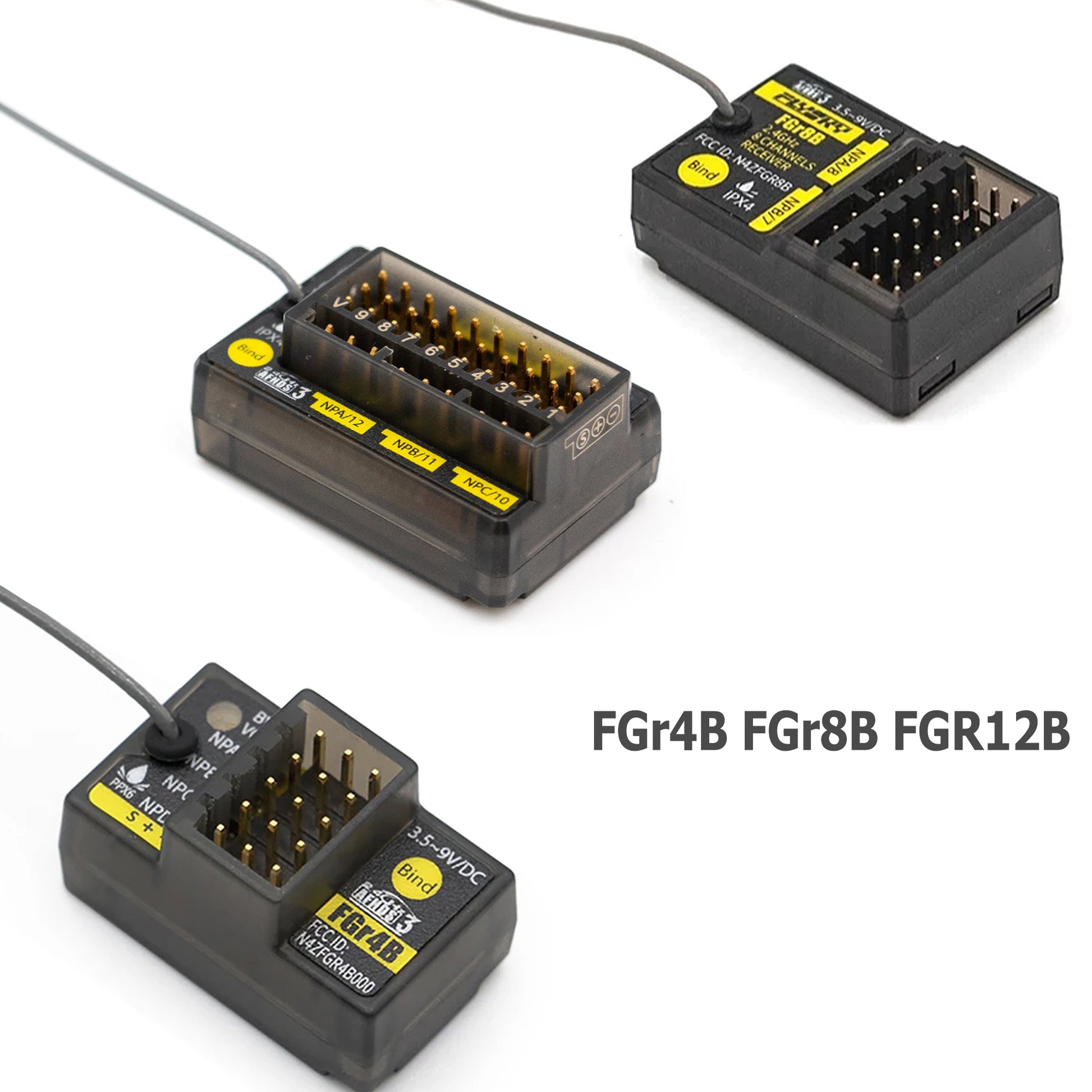

FLYSKY FGR4B FGR8B FGr12B 2.4GHz 8/12CH Receiver PWM PPM Ibus for AFHDS3 NB4 / PL18 / FRM302 RC Vehicle / Ship

The FGr4B receiver adopts Flysky's third-generation automatic frequencyhopping digital system (AFHDS 3).It uses a single-antenna bidirectionaltransmission system and is uniquely designed to install and output PWM/PPM/i-bus/S.BUS/i-bus2 in signals. It supports all AFHDS3 transmitter .

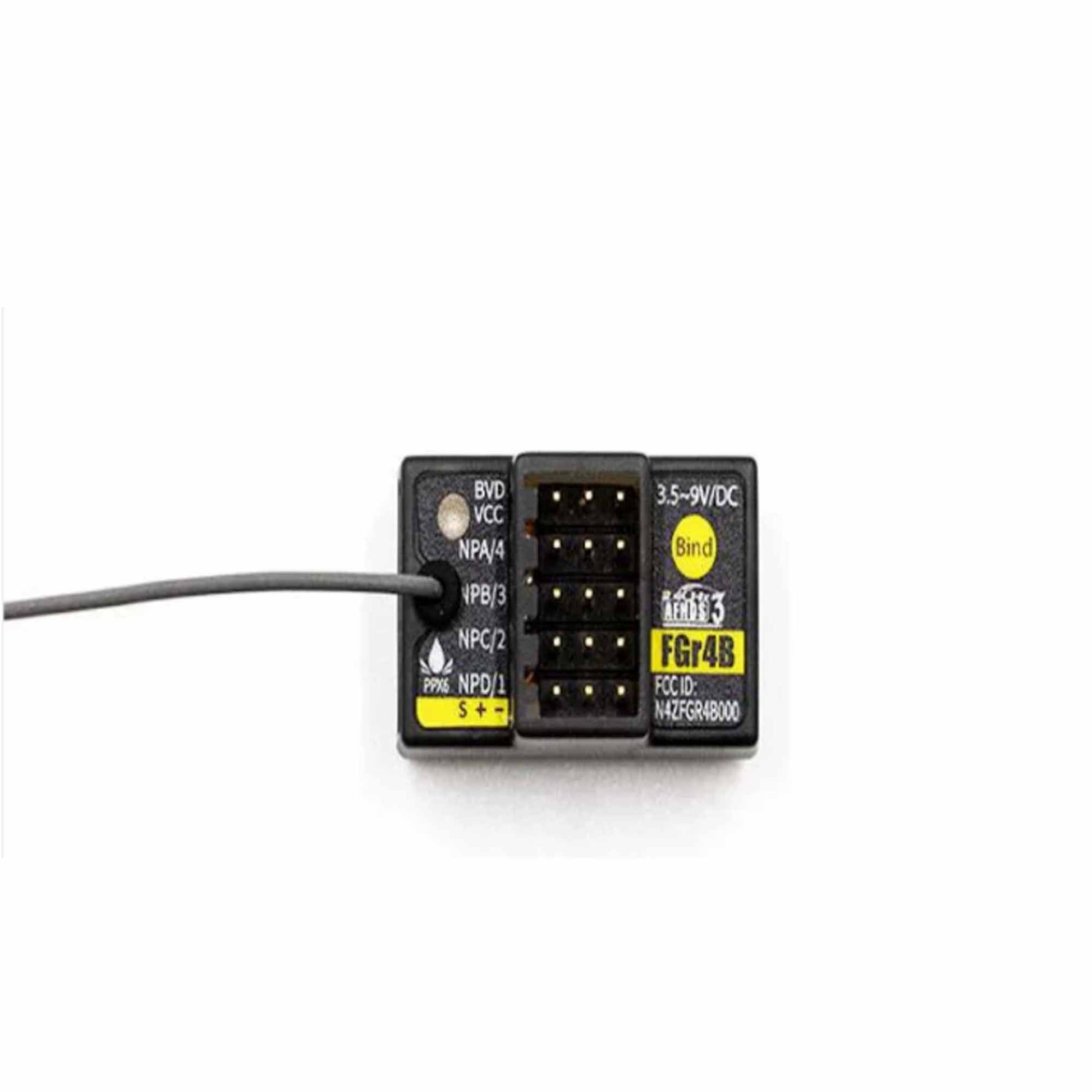

Product Designation: FGr4B

Compatible transmitters: all AFHDS 3 transmitters and RF Modules (PL18, Paladin EV, NB4, NB4 Lite, etc.)

Model Type: Car/boat etc

PWM Channels: 4

RF: 2.4GHz

Protocol: AFHDS 3

Antenna: Dual Antennas

Input Power: 3.5-9V

Data Output: PWM/PPM/i.BUS out/S.BUS

Temperature Range: -10℃ to +60℃

Humidity Limit: 20%-95%

Online Update: Yes

Dimensions: 17*29*16mm

Weight: 6.4g

Certification: CE，FCC ID:N4ZFGR4B

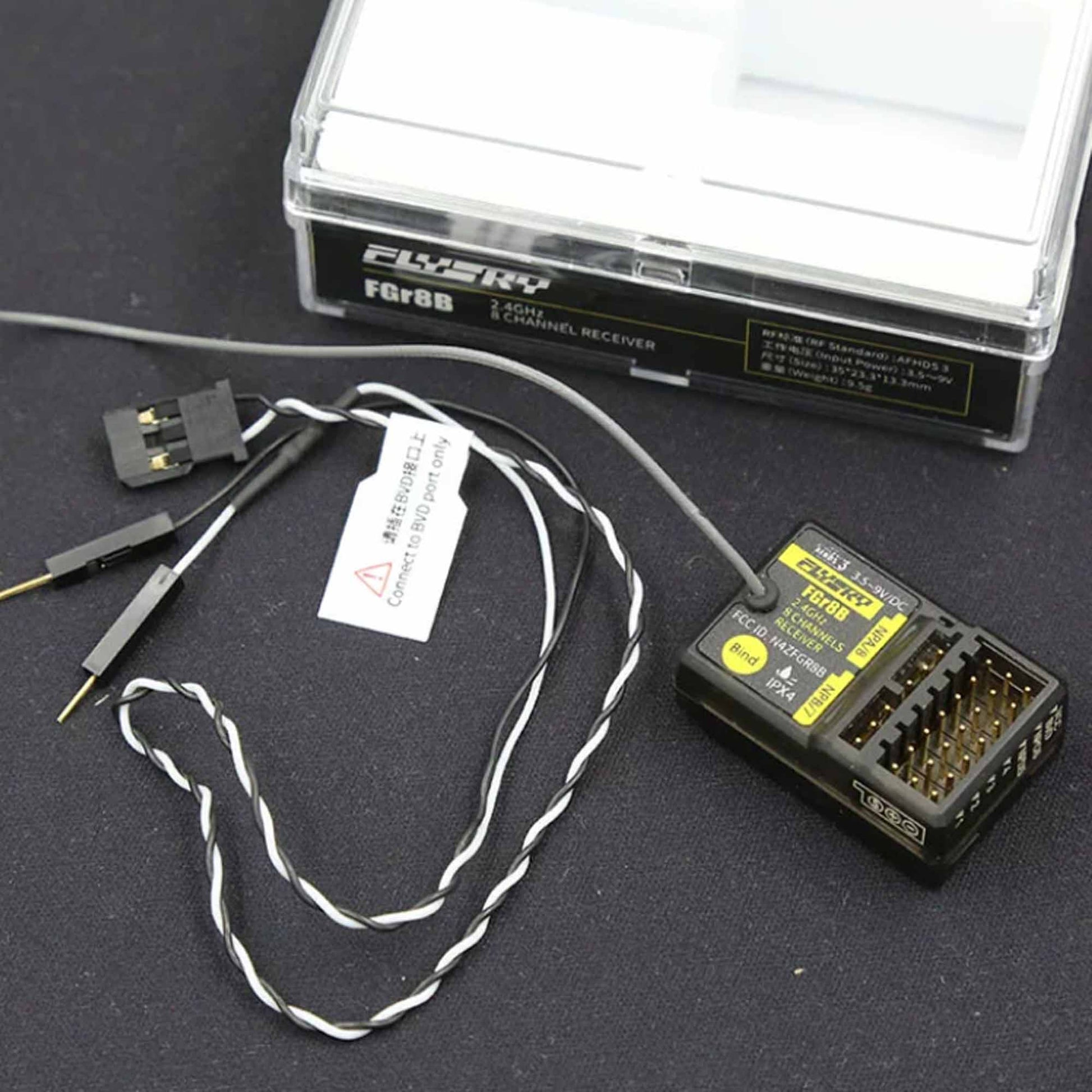

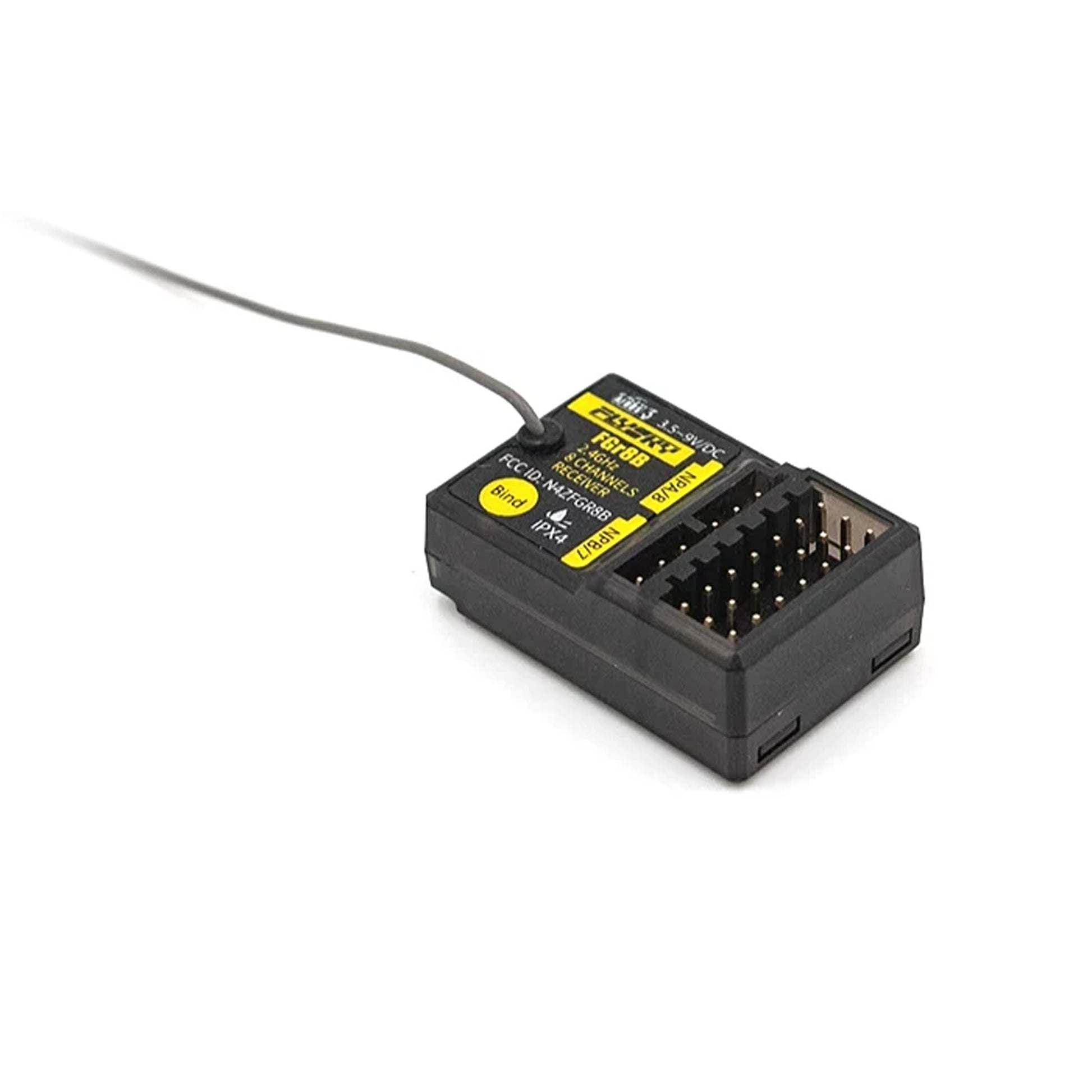

FGr8B Specification:

The FGr8B receiver adopts Flysky's third-generation automatic frequency hopping digital system (AFHDS 3).It uses a single-antenna bidirectional transmission system and is uniquely designed to install and output PWM/PPM/ i-bus in signals. It supports all AFHDS3 transmitter and RF modules.Brand Name: FlySky

Item Name: FGr8B Receiver

Model: FGr8B

Weight: 9.4g

Dimensions: 35*23.3*13.3mm

RF: 2.4GHz

2.4G Protocol: AFHDS 3

Antenna: Single Antenna

Input Power: 3.5-9V

RSSI: Support

Data Output: PWMPPMi-bus in

Temperature Range: -10℃—+60℃

Humidity Limit: 20%-95%

Online Update: Yes

PWM Channels: 7 (Version 2.0 will be upgraded to 8 channels)

Certification: CE，FCC ID:N4ZFGR8B

The FGr8B receiver is compatible with all AFHDS 3 transmitters and RF modules (including PL18, NB4, NB4 Lite, FRM302 etc.)

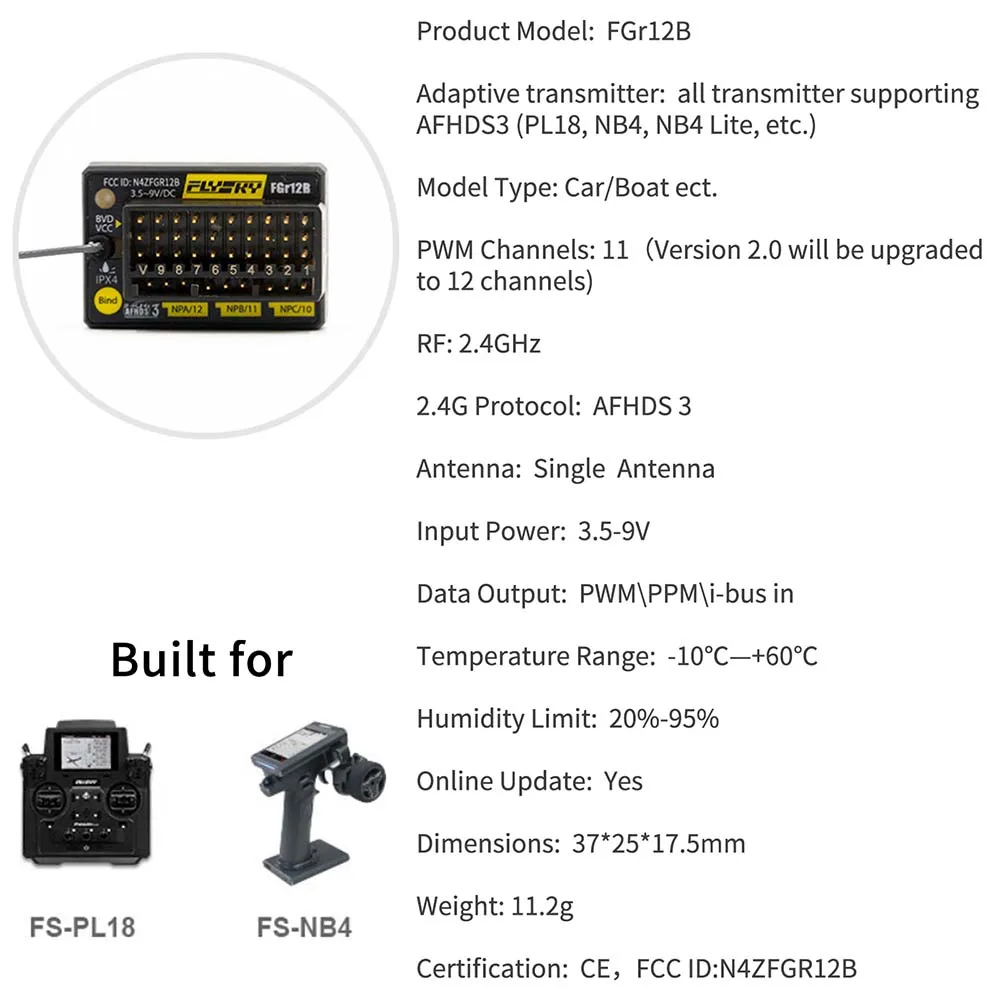

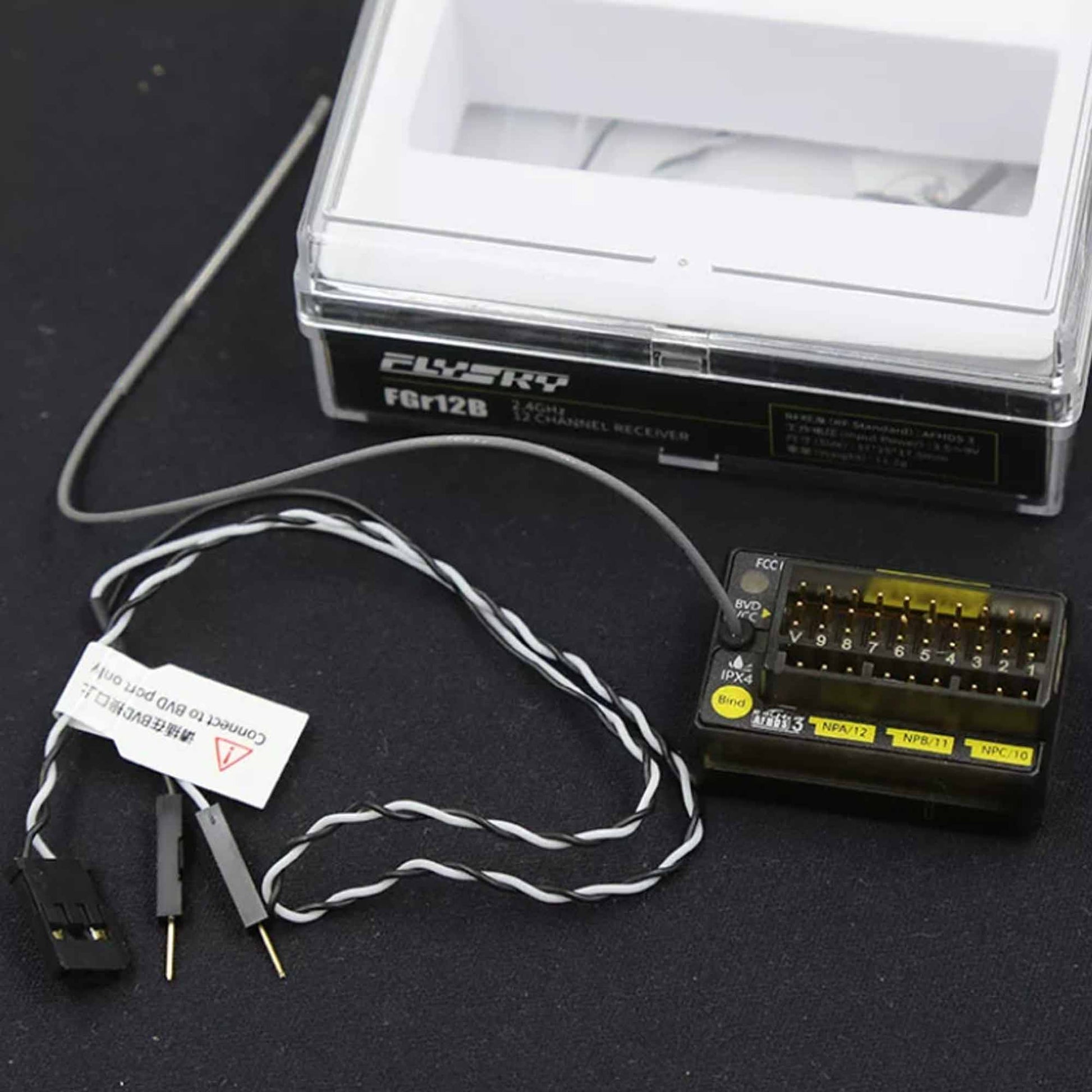

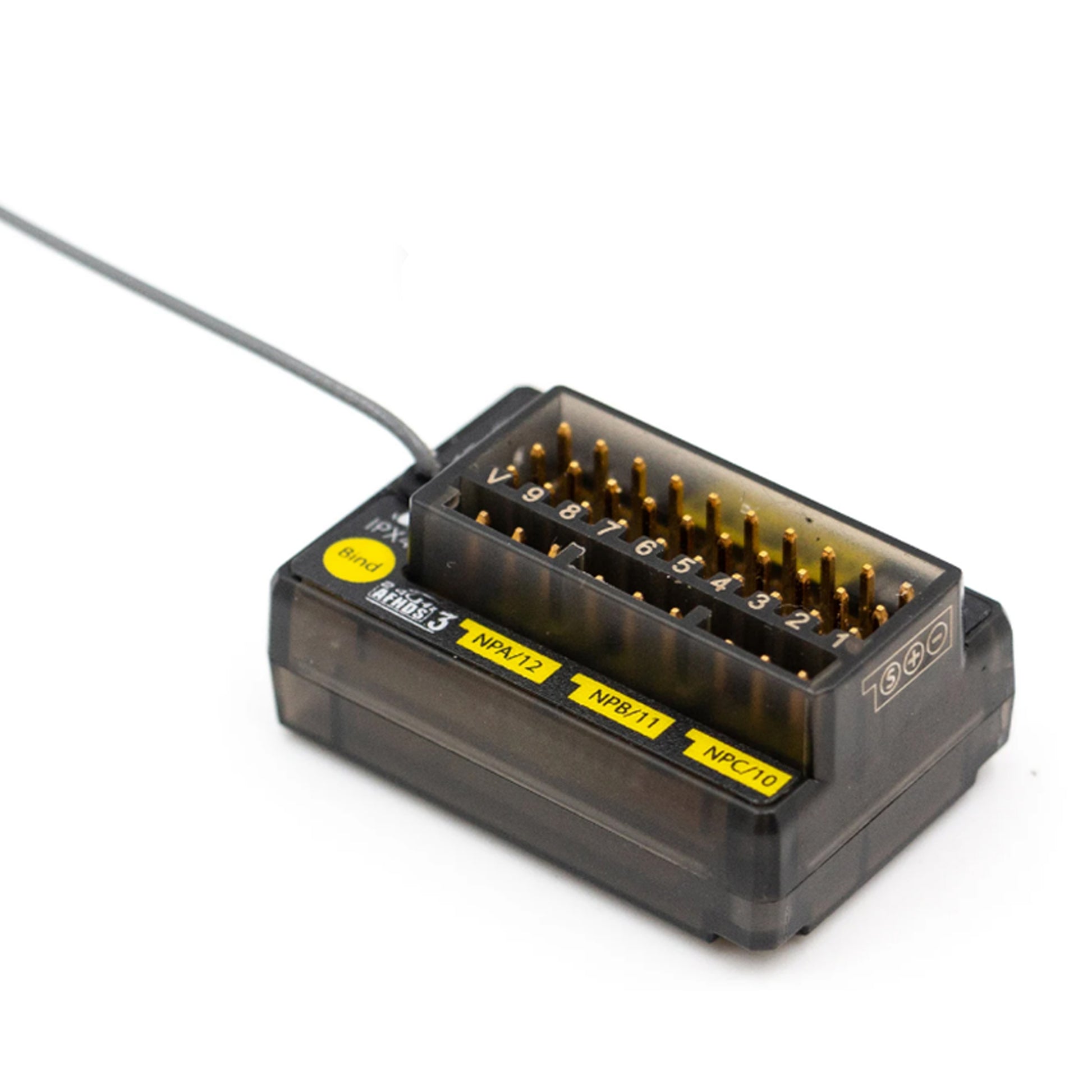

FGr12B Specification:

The FGr12B receiver adopts Flysky's third-generation automatic frequency hopping digital system (AFHDS 3).It uses a single-antenna bidirectional transmission system and output PWM/PPM/ i-bus in signals. It supports all AFHDS3 transmitter and RF modules.

Product Model: FGr12B

Adaptive transmitter: all transmitter supporting AFHDS3 (PL18, NB4, NB4 Lite, etc.)

Model Type: Car/Boat ect.

PWM Channels: 11（Version 2.0 will be upgraded to 12 channels)

RF: 2.4GHz

2.4G Protocol: AFHDS 3

Antenna: Single Antenna

Input Power: 3.5-9V

Data Output: PWMPPMi-bus in

Temperature Range: -10℃—+60℃

Humidity Limit: 20%-95%

Online Update: Yes

Dimensions: 37*25*17.5mm

Weight: 11.2g

Certification: CE，FCC ID:N4ZFGR12B
