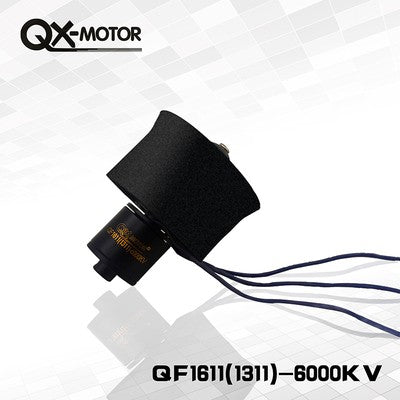

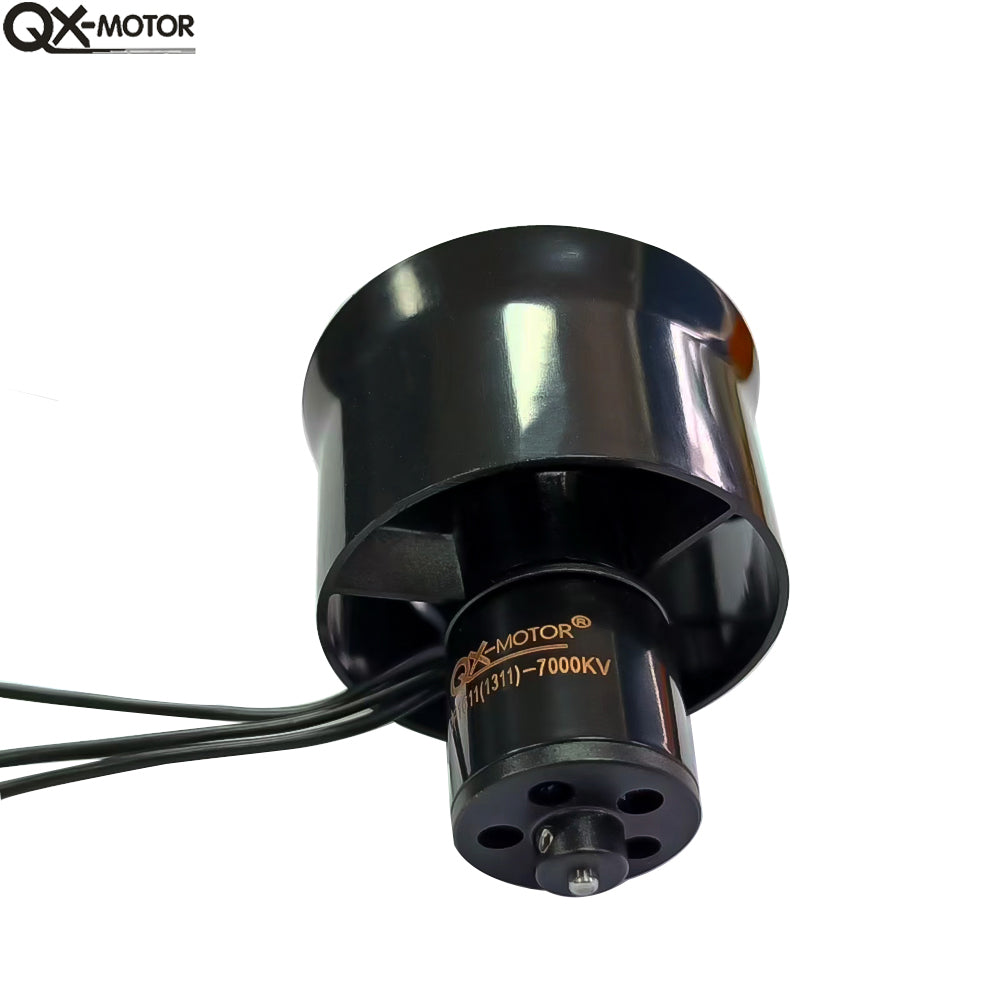

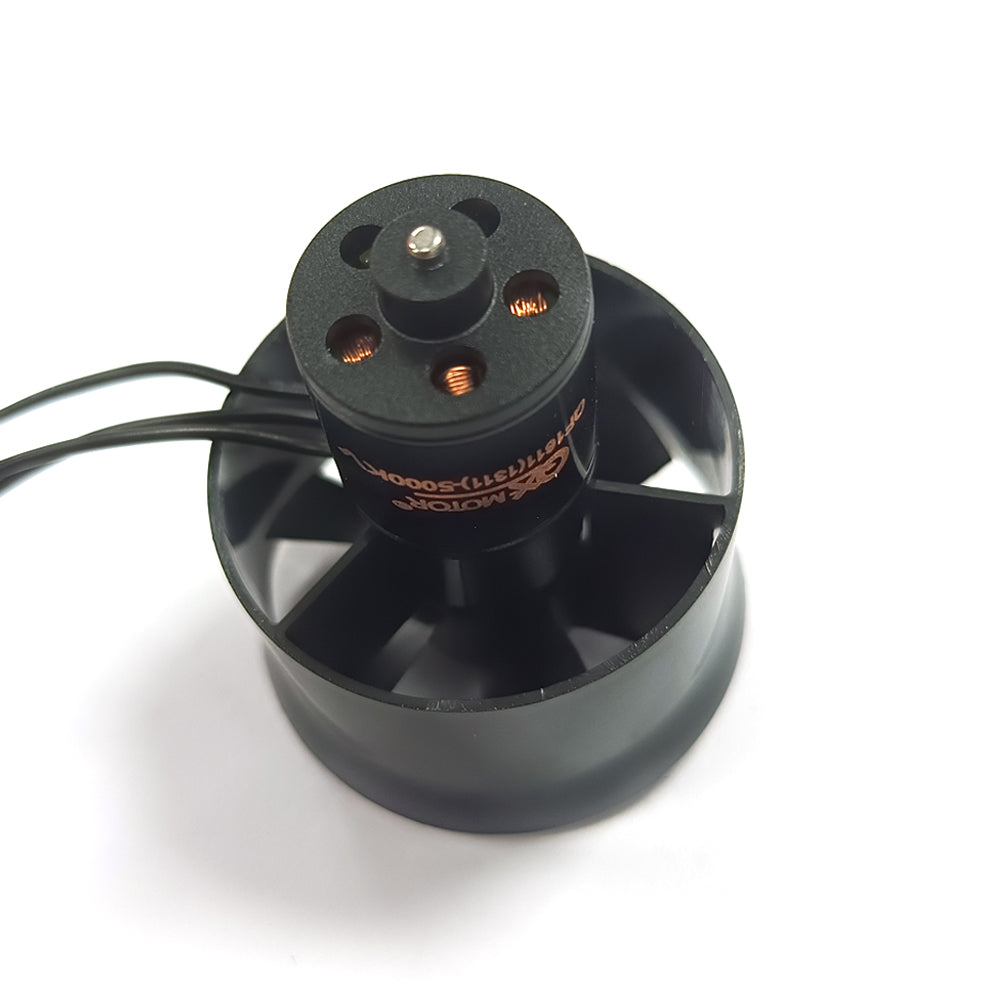

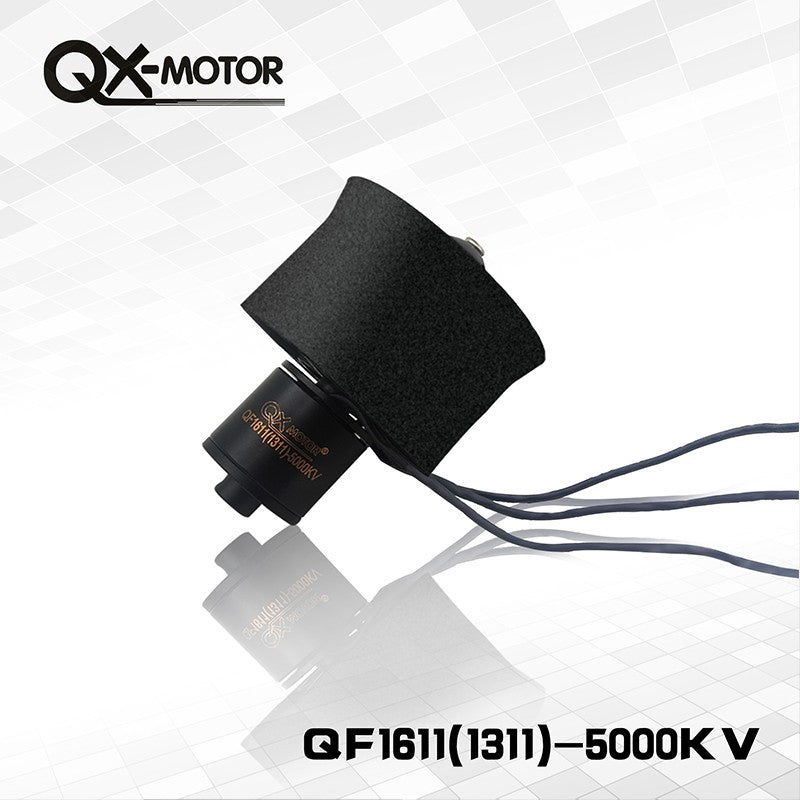

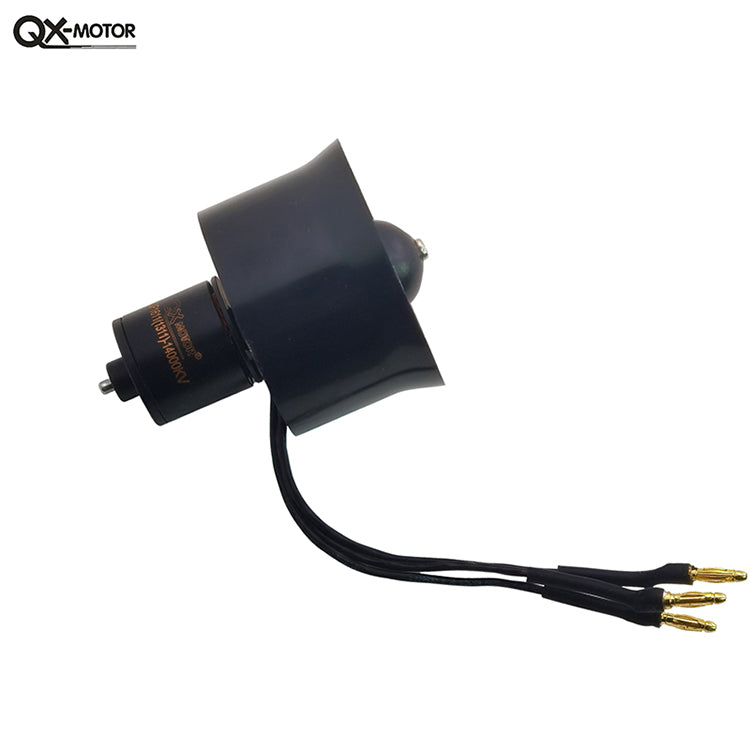

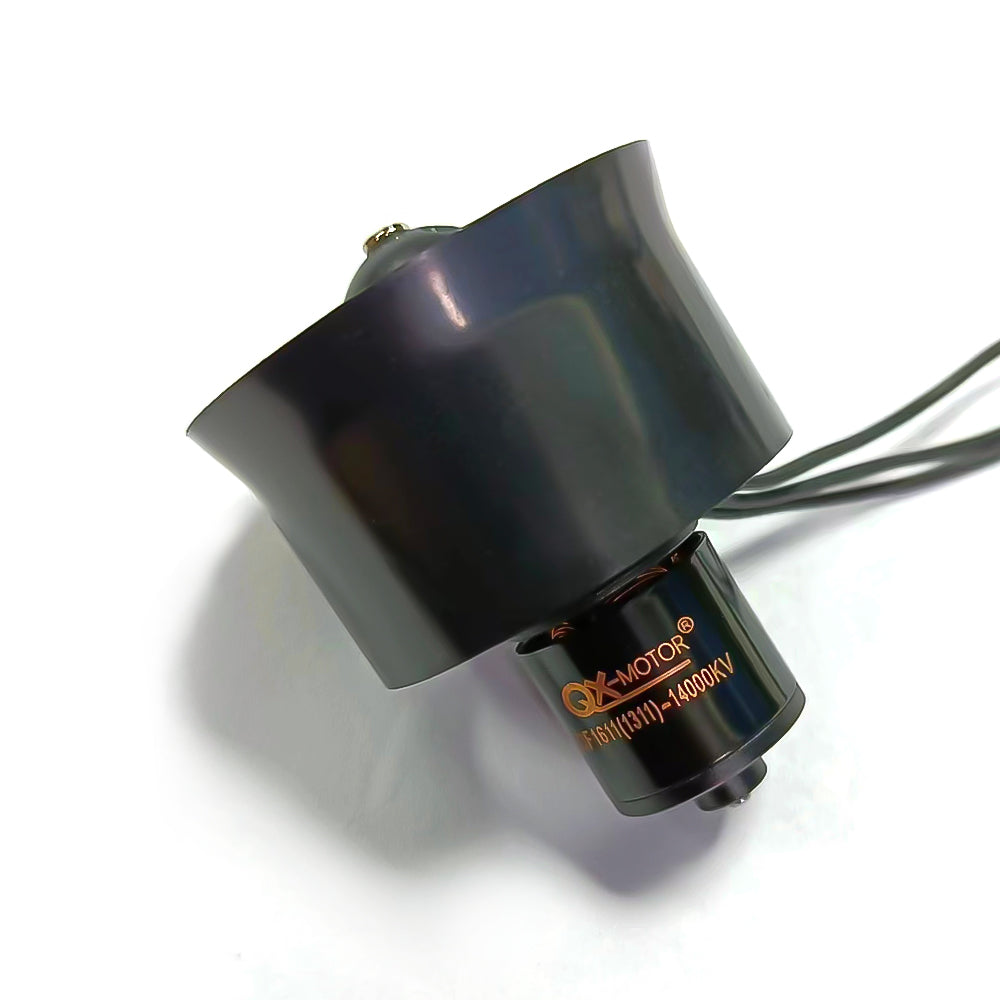

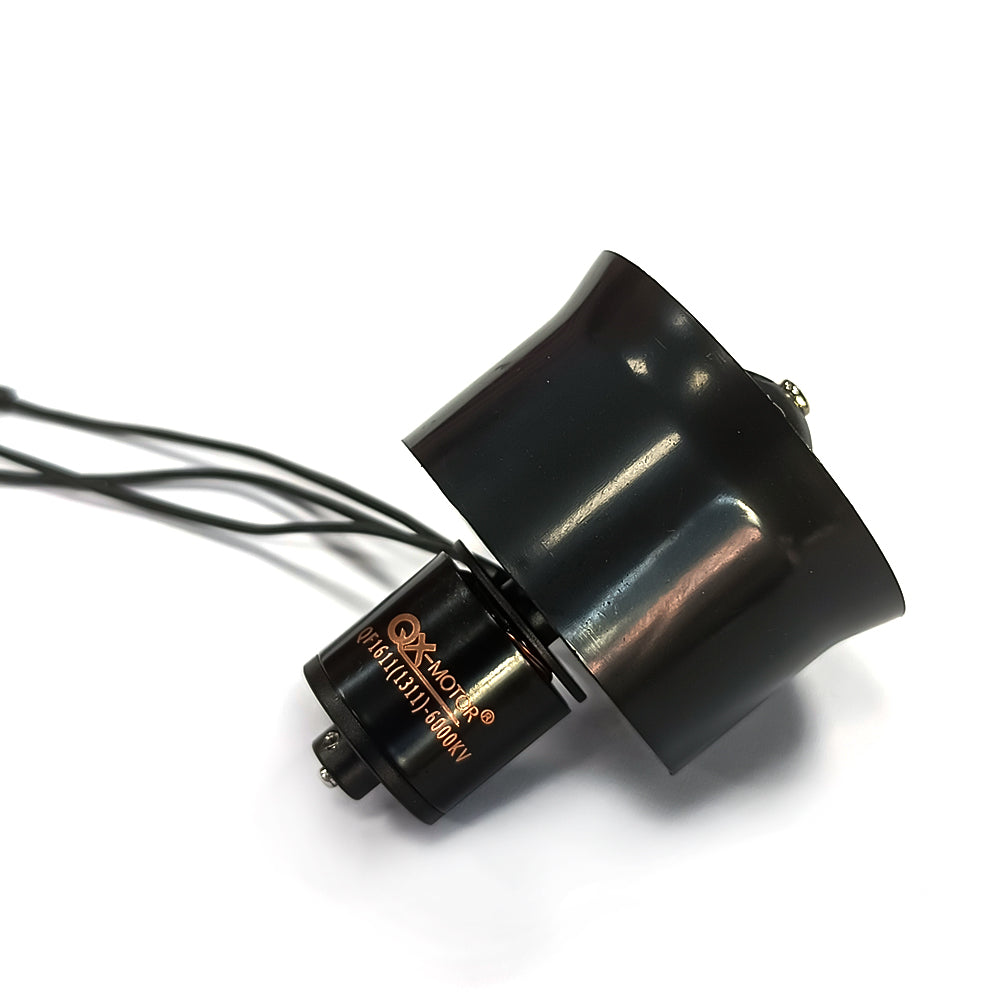

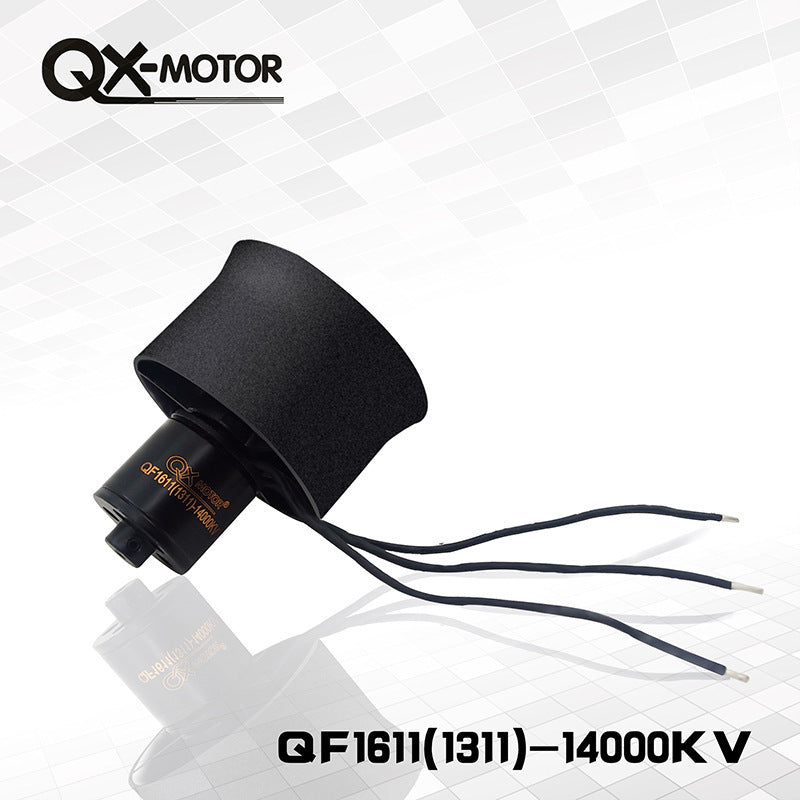

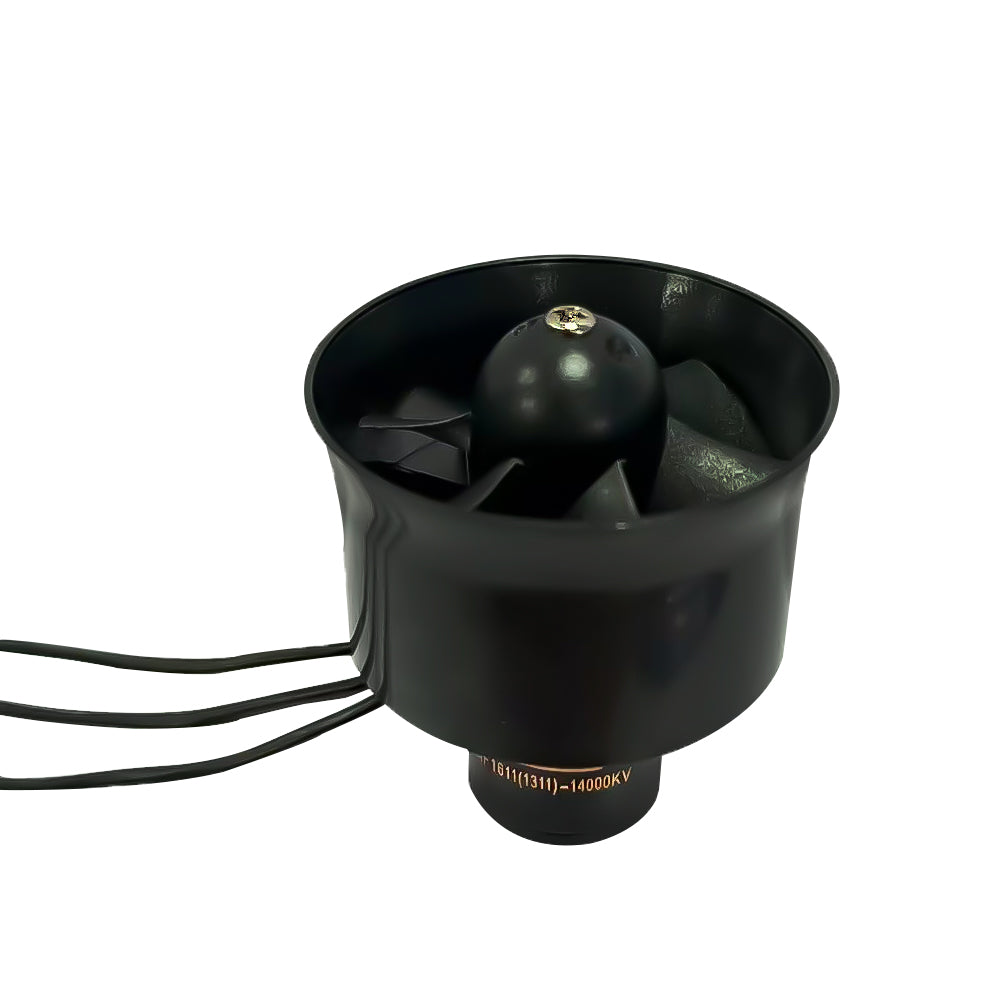

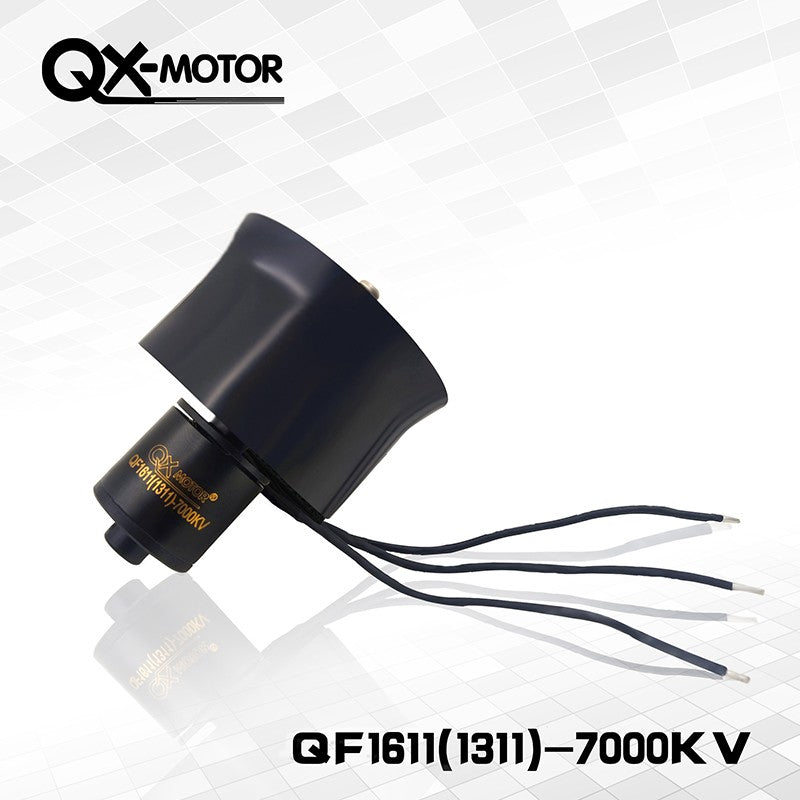

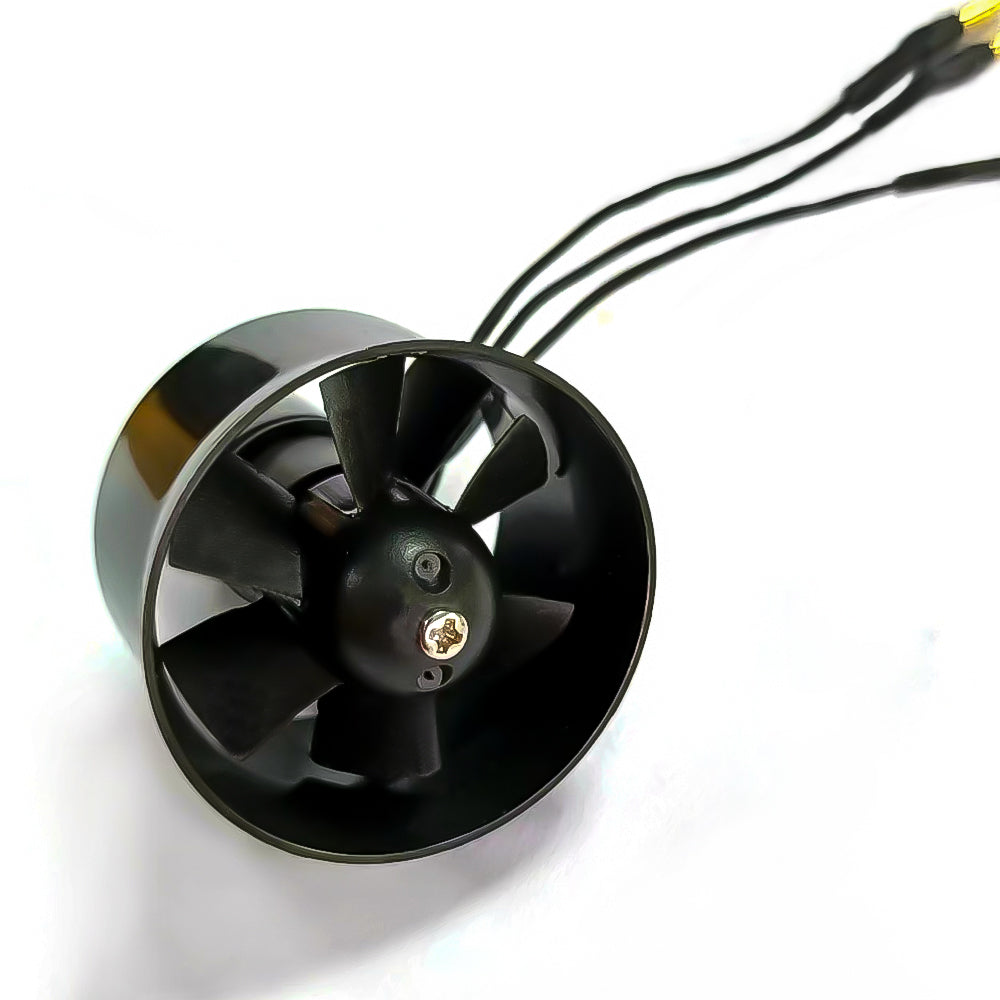

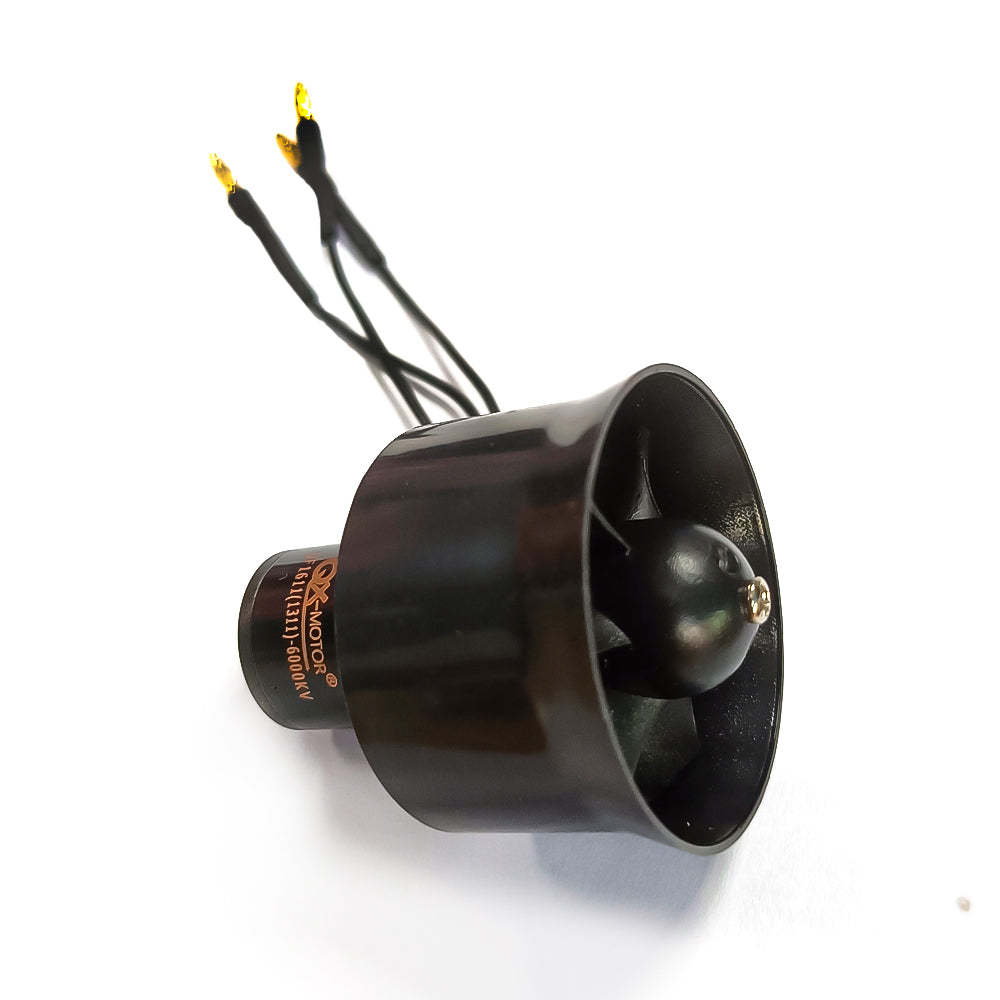

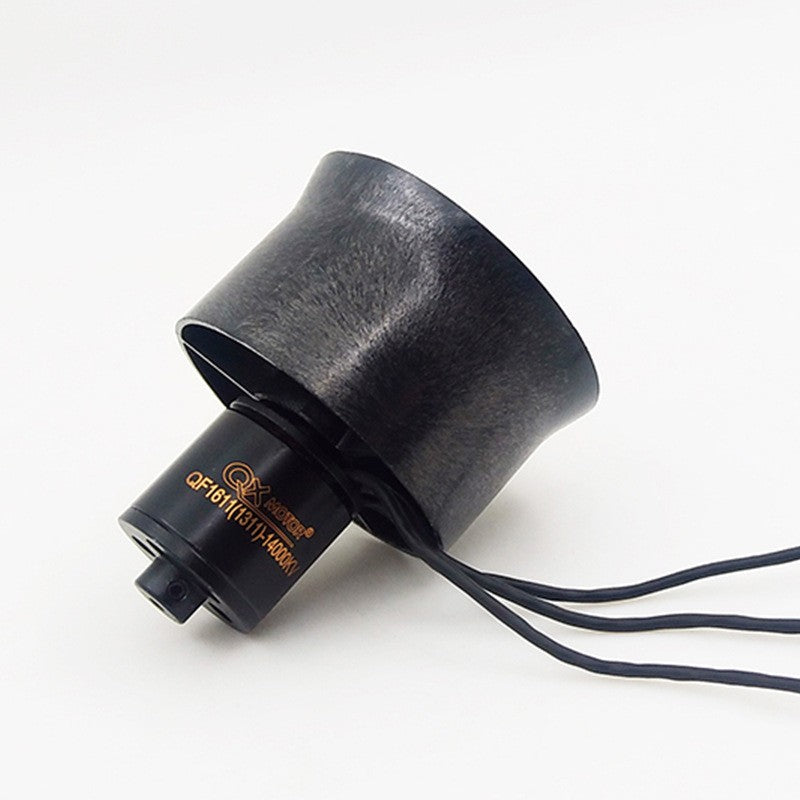

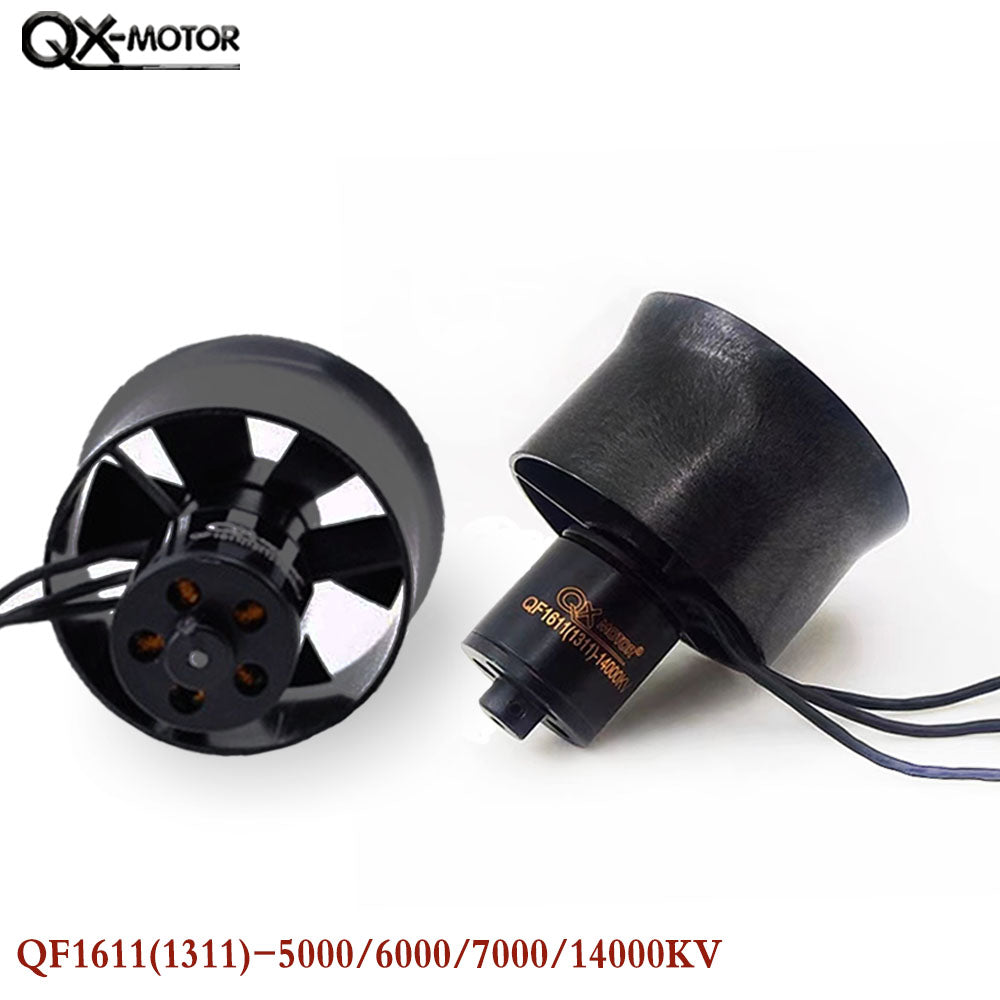

QX-Motor 30mm 6 Blades EDF Unit With QF1611 14000KV 7000KV 6000KV 5000KV 4000kv Brushless Motor

QX-Motor 30mm 6 Blades EDF Unit With QF1611 14000KV 7000KV 6000KV 5000KV 4000kv Brushless Motor

$19.90 USD
$19.90 USD
Sale Sold out
QF1611

Ducted fan with motor
The advanced PC material, which is striking resistance and also high-temperature resistance that can guarantee stiffness and toughness, greatly decreases the damage ratio.
The combination is made of aluminum, which makes it more stable.

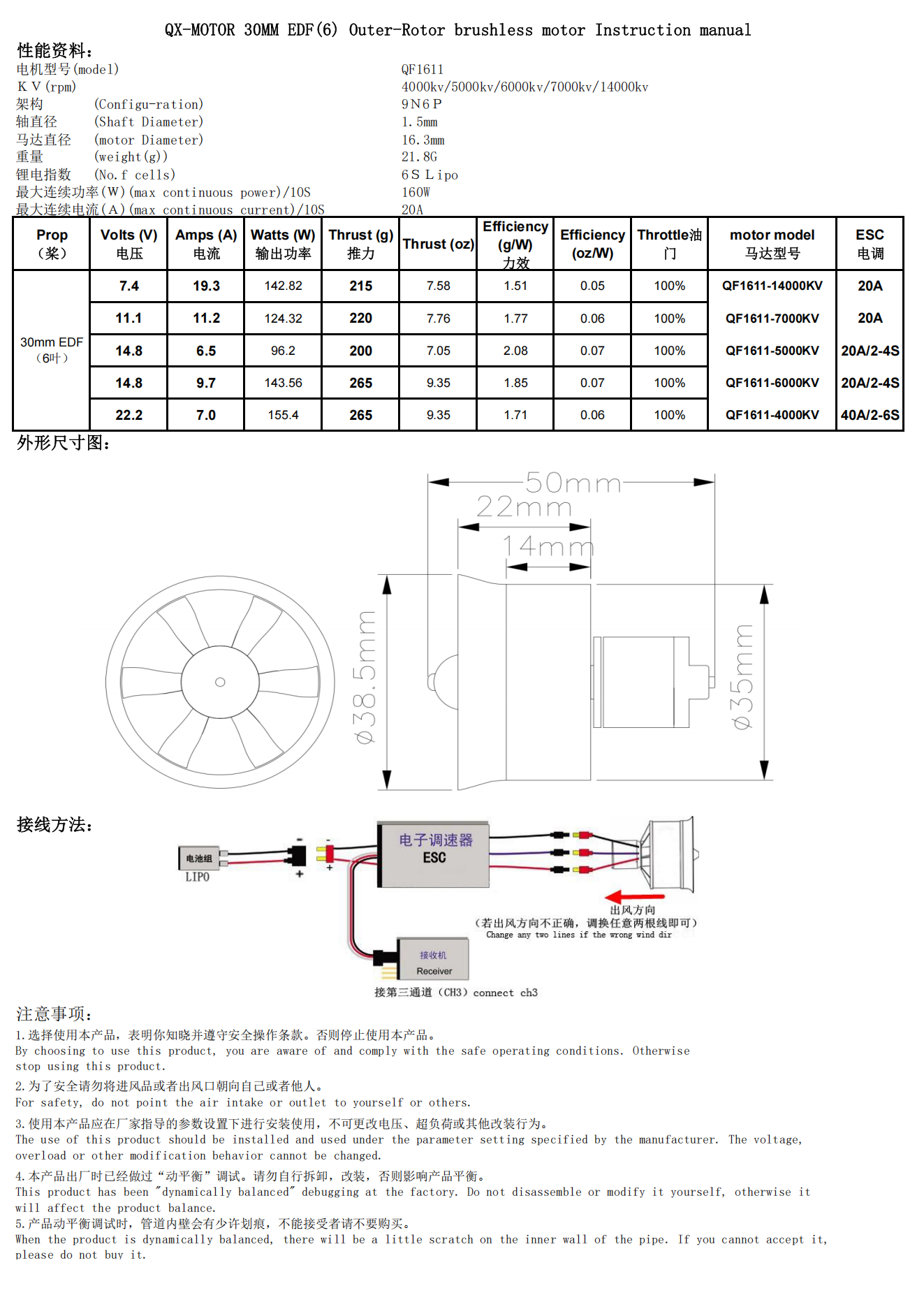

电机型号(model) QF1611
ＫＶ(rpm) 4000kv/5000kv/6000kv/7000kv/14000kv
架构 (Configu-ration) 9Ｎ6Ｐ
轴直径 (Shaft Diameter) 1.5mm

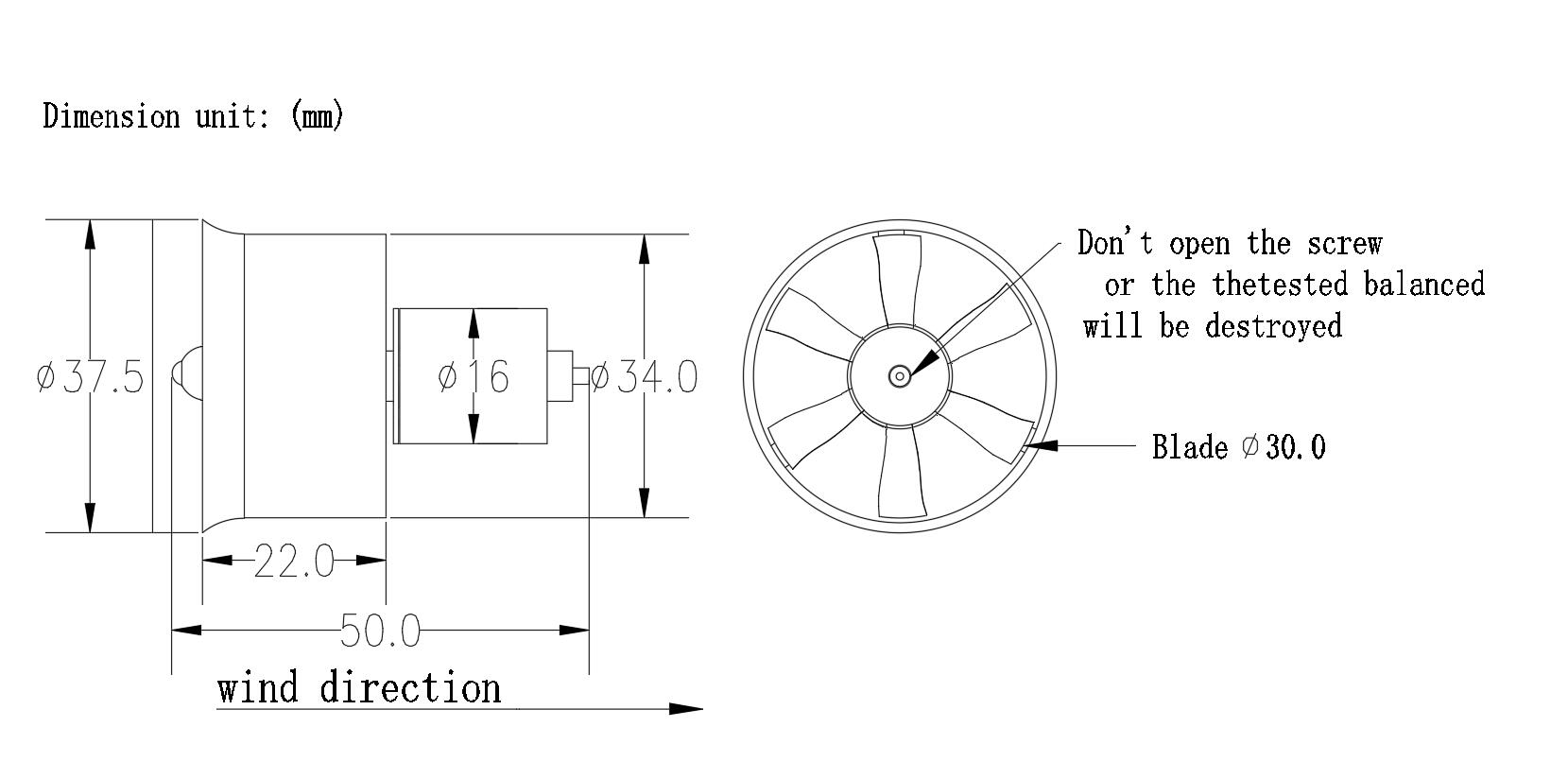

马达直径 (motor Diameter) 16.3mm
重量 (weight(g)) 21.8G
锂电指数 (No.f cells) 6ＳＬipo
最大连续功率(Ｗ)(max continuous power)/10S 160W
最大连续电流(Ａ)(max continuous current)/10S 20A
Prop（桨） Volts (V)
电压 		Amps (A)
电流 		Watts (W)输出功率 Thrust (g)推力 Thrust (oz) Efficiency
(g/W)
力效 		Efficiency
(oz/W)		 Throttle油门 motor model
马达型号　 		ESC
电调
30mm EDF

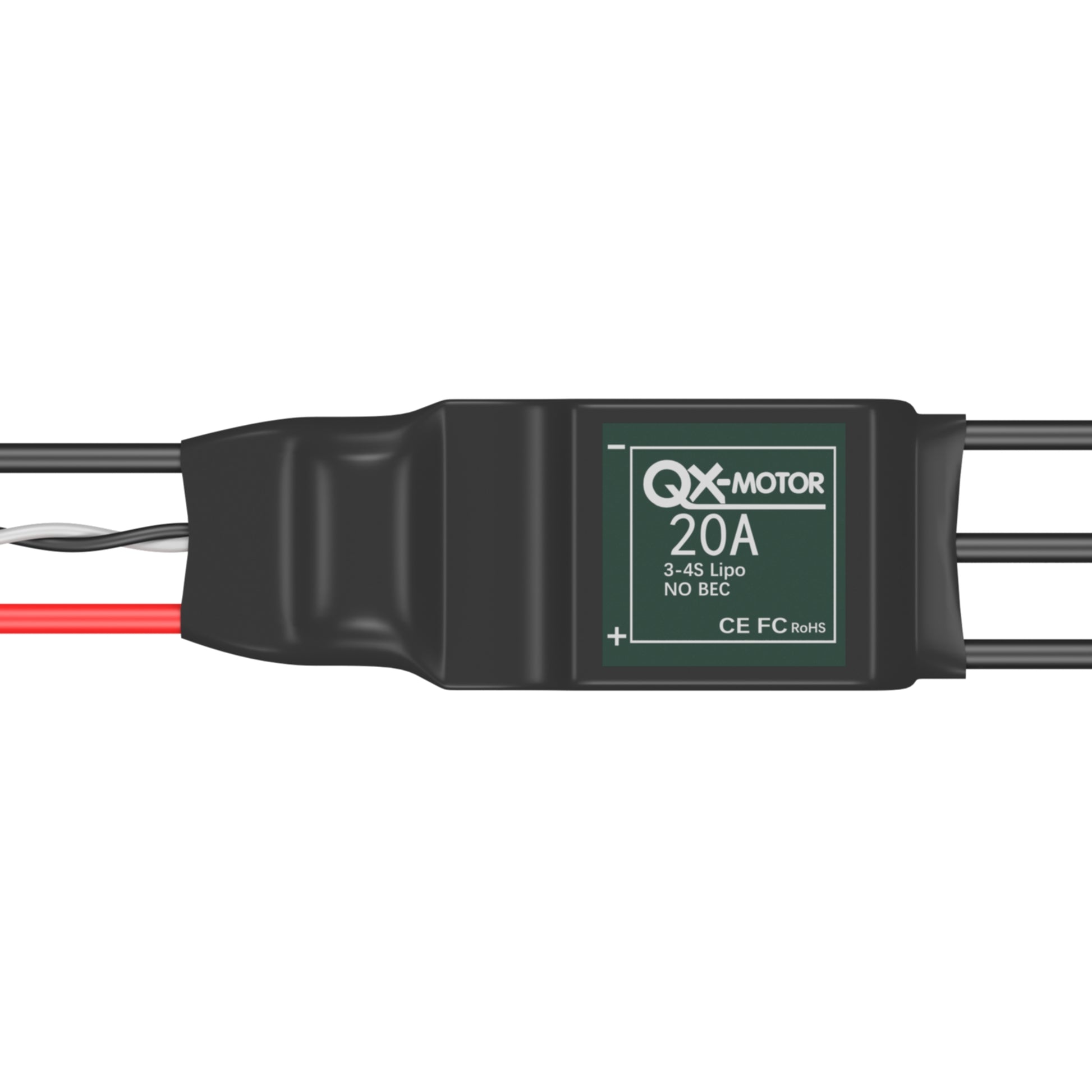

（6叶） 		7.4 19.3  142.82 215 7.58  1.51  0.05  100% QF1611-14000KV 20A
11.1 11.2  124.32 220 7.76  1.77  0.06  100% QF1611-7000KV 20A
14.8 6.5  96.2 200 7.05  2.08  0.07  100% QF1611-5000KV 20A/2-4S
14.8 9.7  143.56 265 9.35  1.85  0.07  100% QF1611-6000KV 20A/2-4S

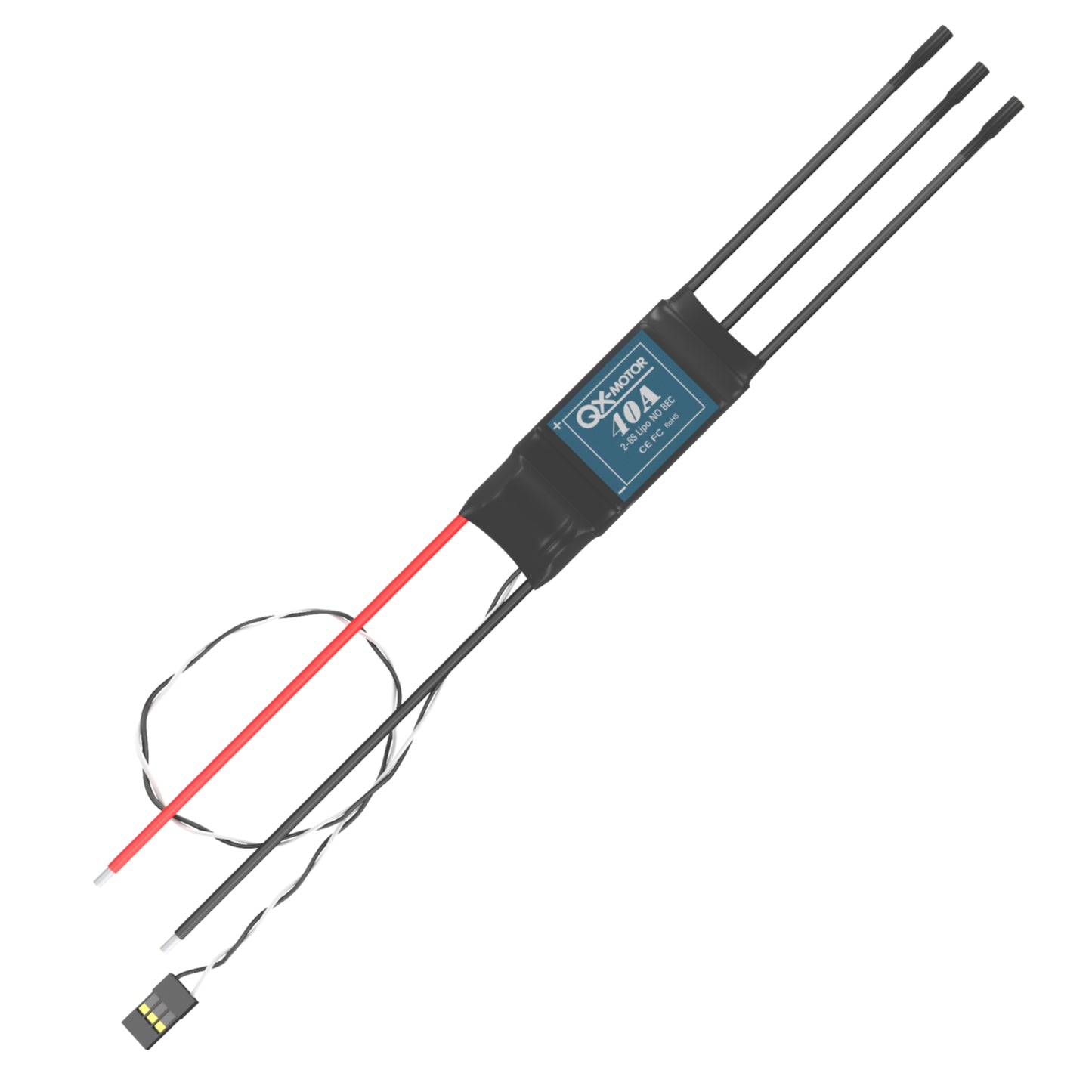

22.2 7.0  155.4 265 9.35  1.71  0.06  100% QF1611-4000KV 40A/2-6S
