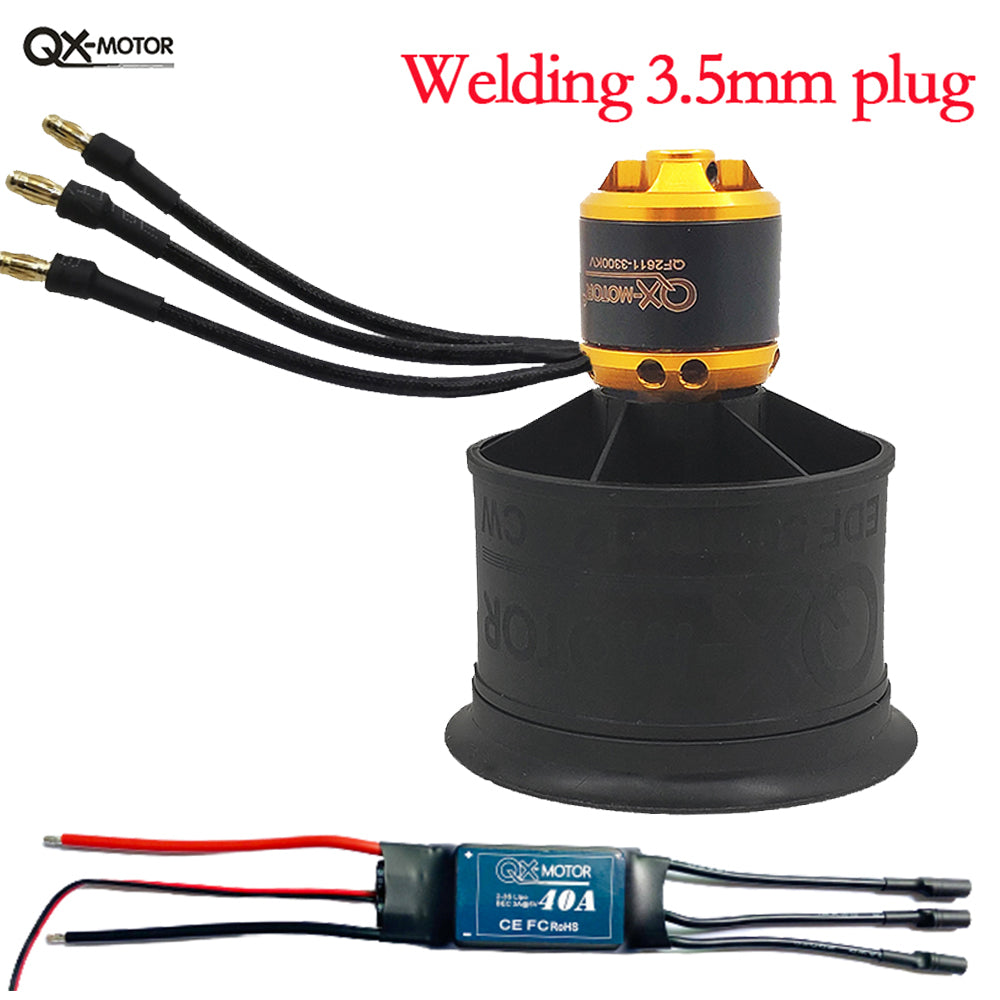

QX-MOTOR 50mm EDF 12 Blades Ducted Fan CW CCW with 40A 50A ESC 3S 4S Brushless Motor
QX-MOTOR 50mm EDF 12 Blades Ducted Fan CW CCW with 40A 50A ESC 3S 4S Brushless Motor
Regular price
$46.00 USD
Regular price
Sale price
$46.00 USD
Unit price
per
Couldn't load pickup availability
| 电机型号(model) | QF2611 | ||||||||
| ＫＶ(rpm) | 3300KV/4000KV/4600KV/5000KV | ||||||||
| 架构 | (Configu-ration) | 9Ｎ6Ｐ | |||||||
| (Shaft Diameter) | 3.0mm | ||||||||
| (motor Diameter) | 25.8mm | ||||||||
| (weight(g)) | 76G | ||||||||
| (No.f cells) | 3-4ＳＬipo | ||||||||
| (Ｗ)(max continuous power)/10S | 550w | ||||||||
| (Ａ)(max continuous current)/10S | 45Ａ | ||||||||
| Prop | Volts (V) |
Amps (A) |
Watts (W) | Thrust (g) | Thrust (oz) | Efficiency (g/W) |
Efficiency (oz/W) |
motor model |
ESC |
| 50mm EDF （12叶） |

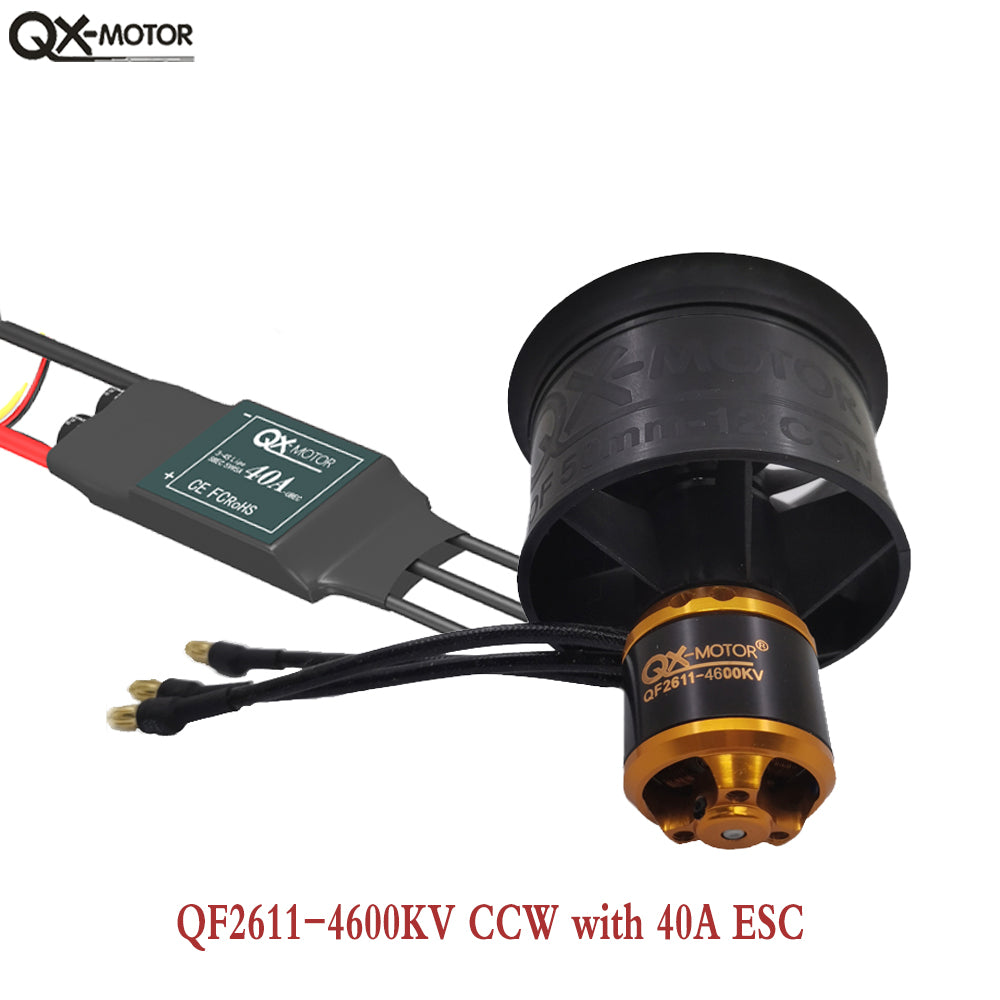

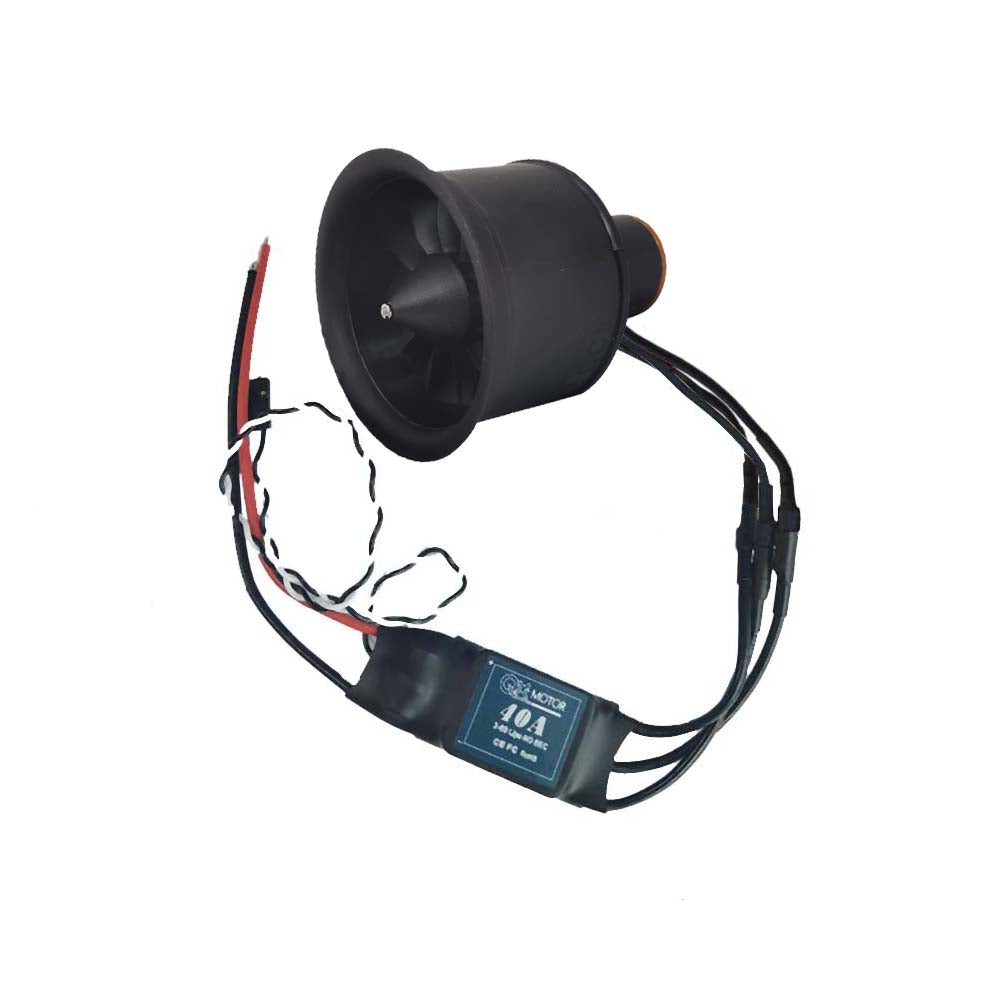

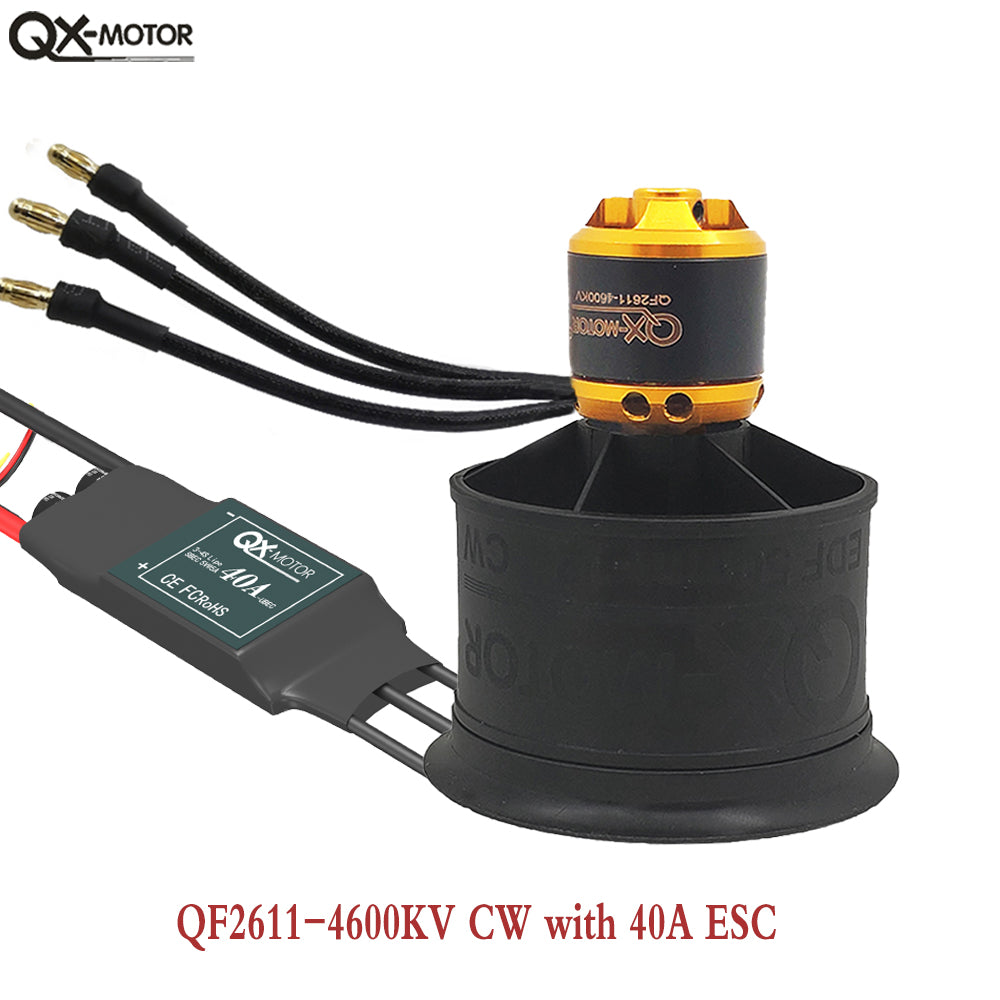

12.6 | 32.0 | 403.2 | 780 | 27.51 | 1.93 | 0.07 | QF2611 4600kv | 40A |

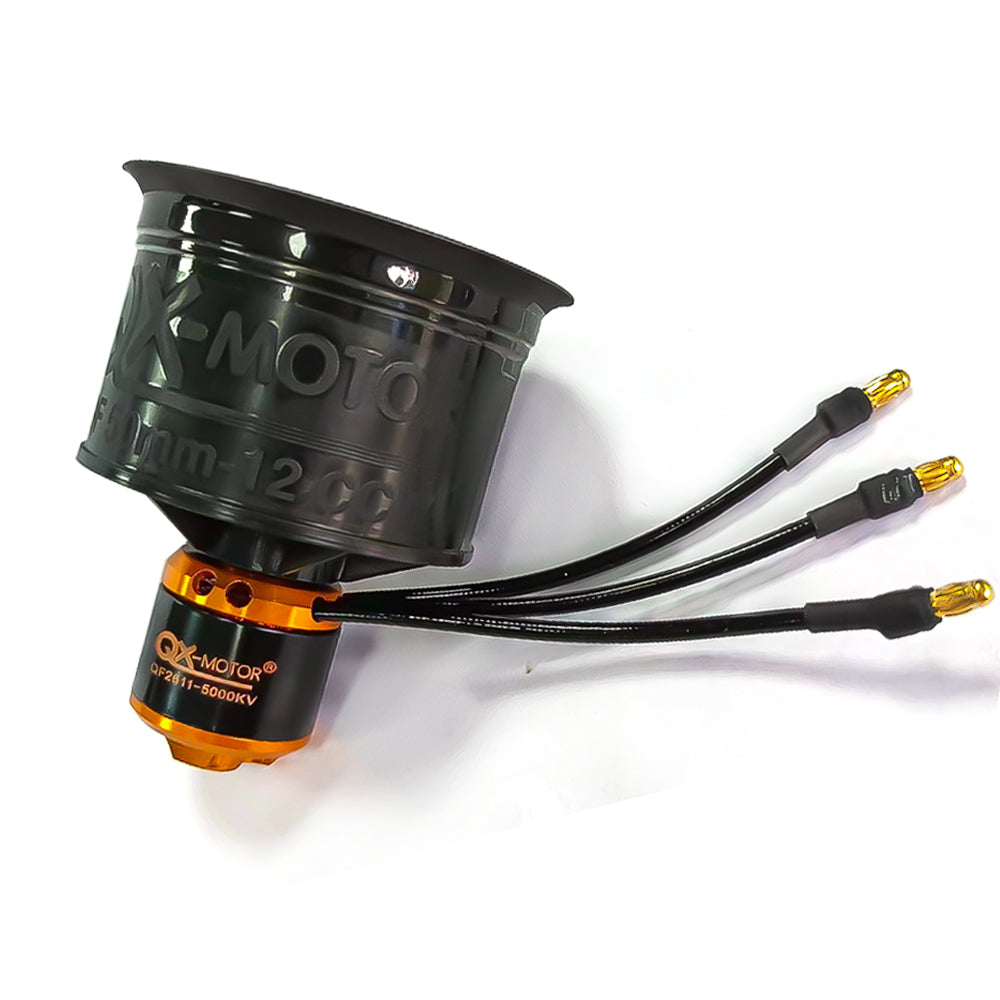

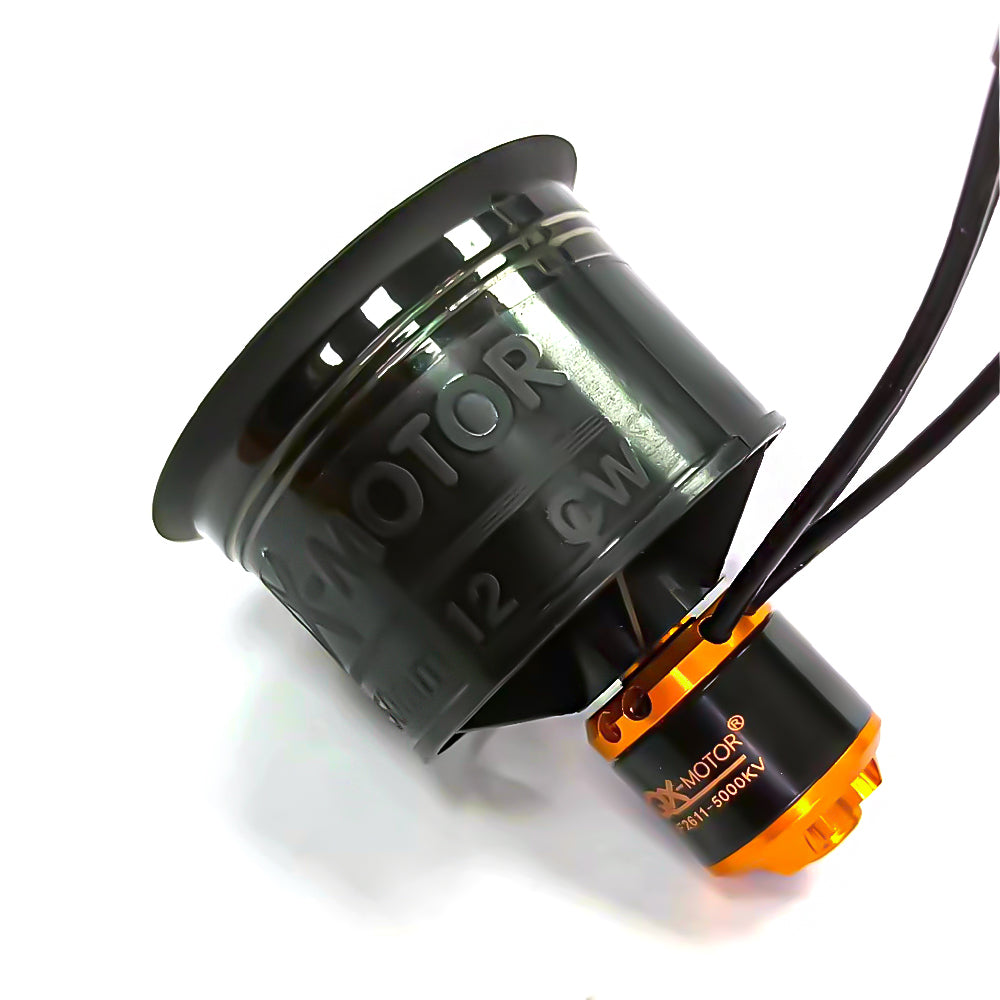

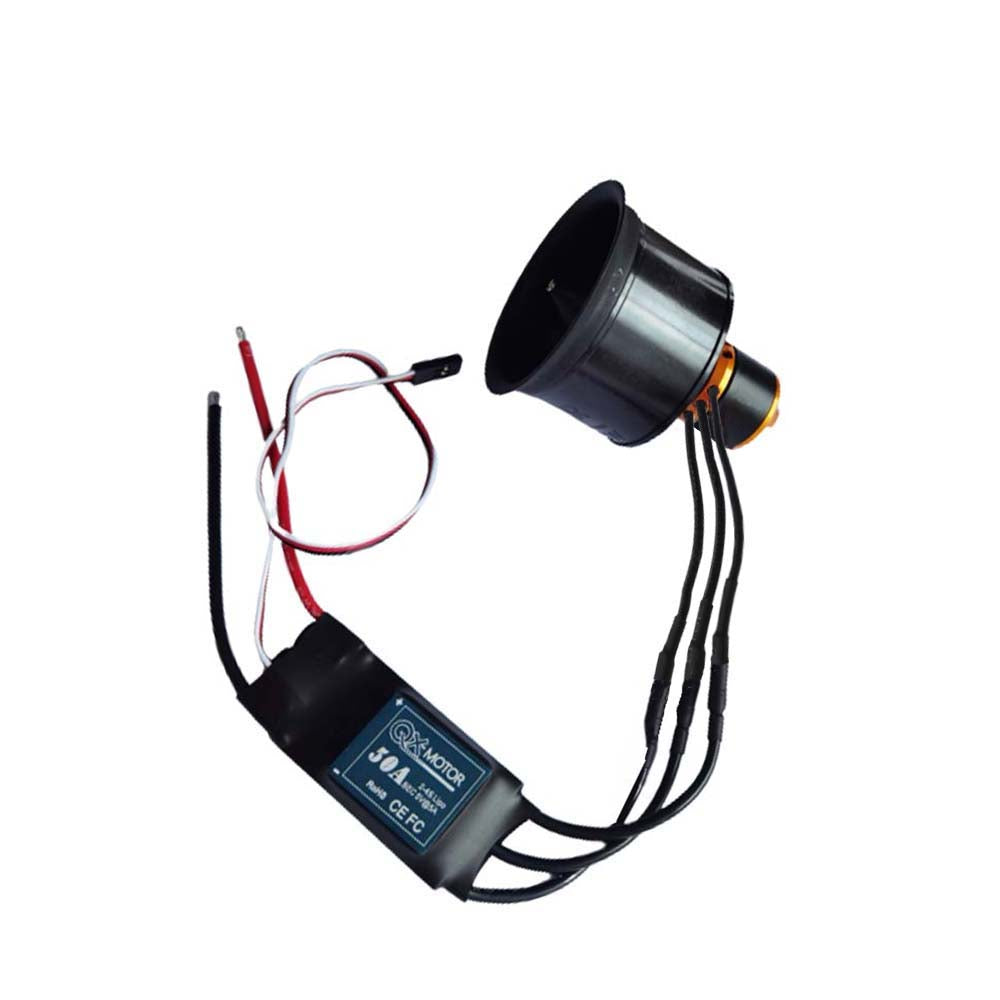

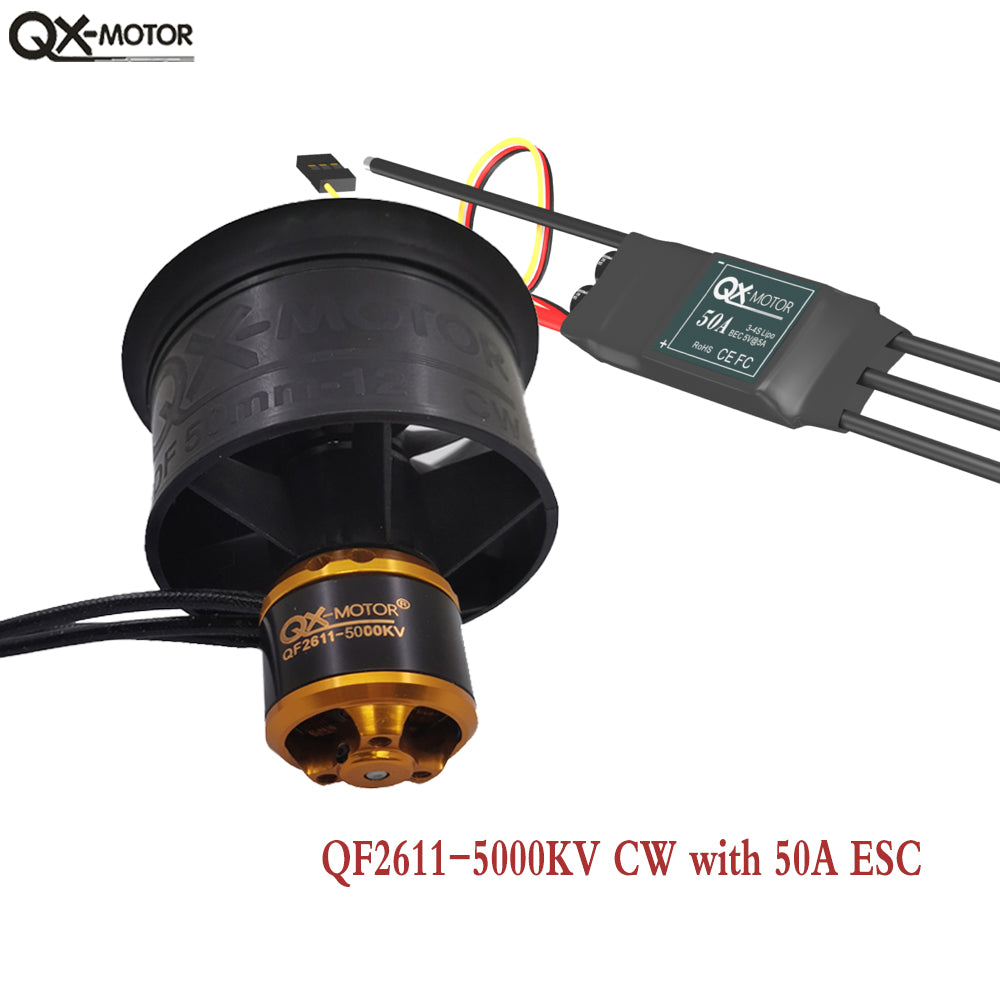

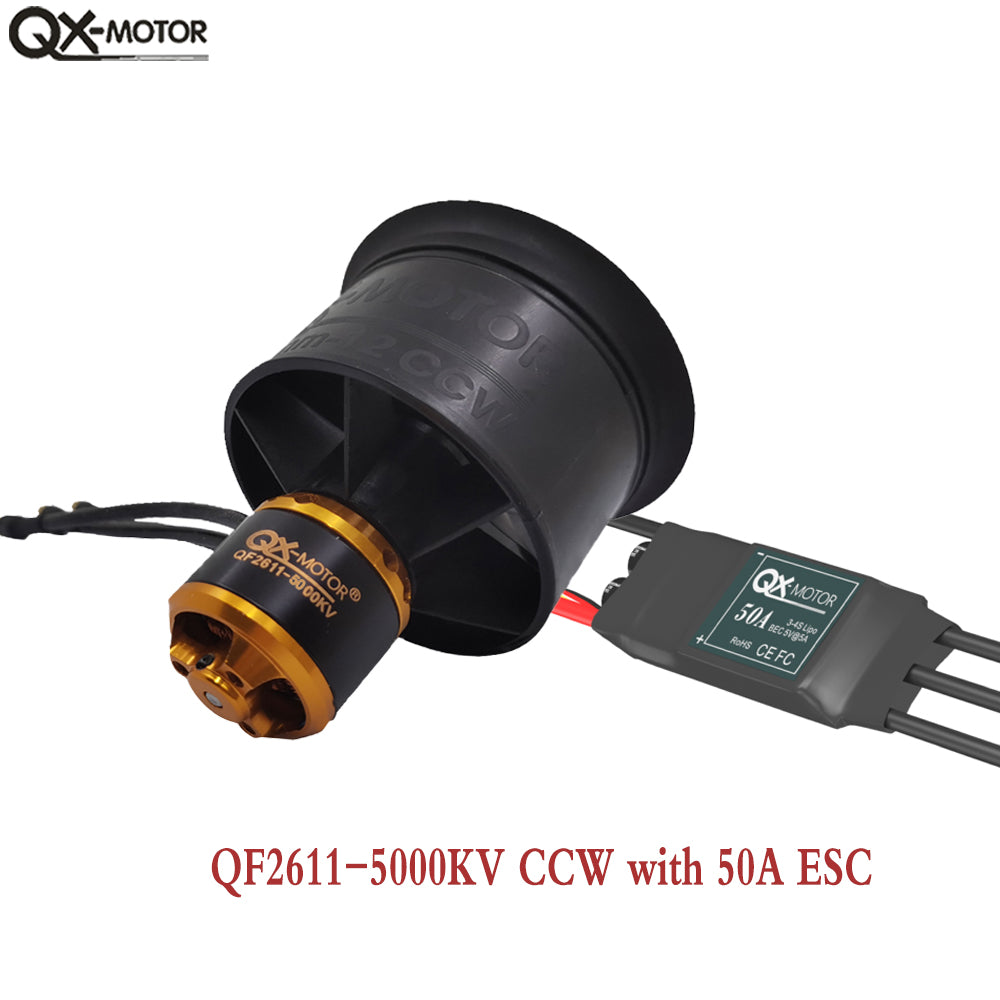

| 12.6 | 45.0 | 567 | 950 | 33.51 | 1.68 | 0.06 | QF2611 5000kv | 50A | |

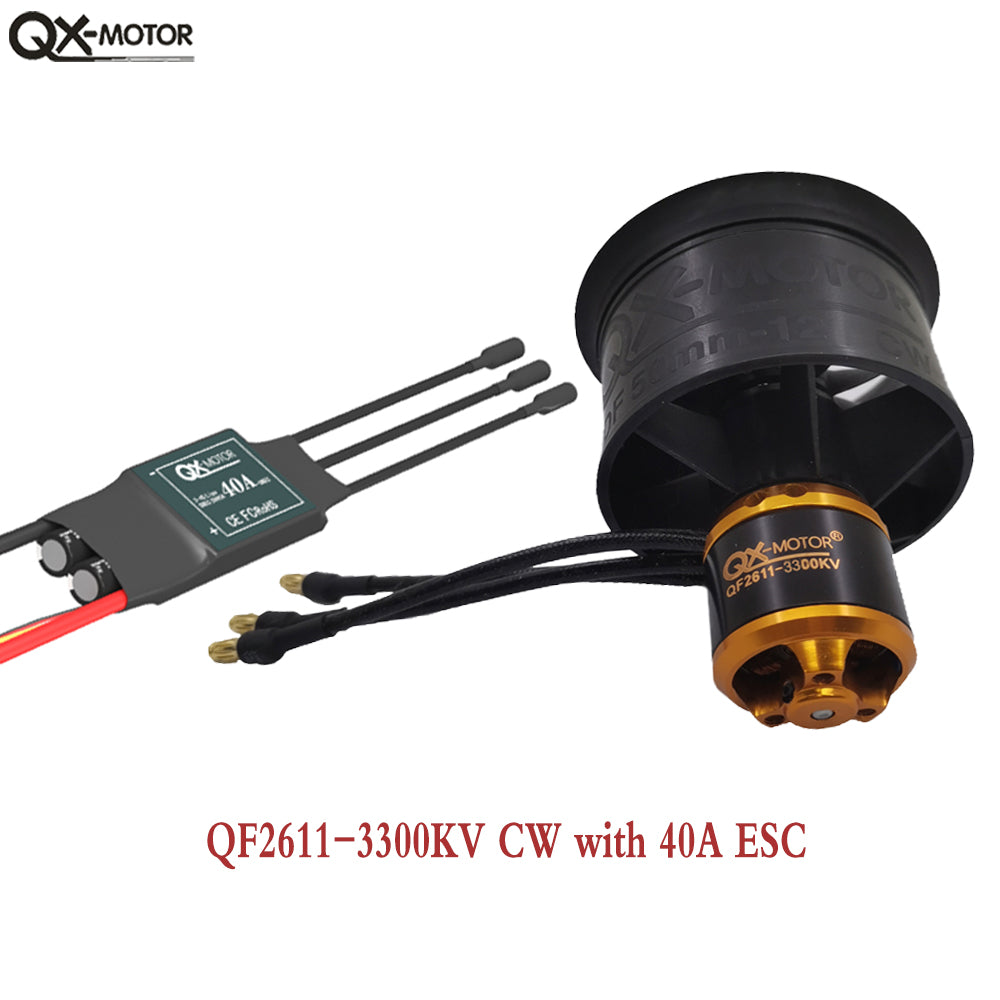

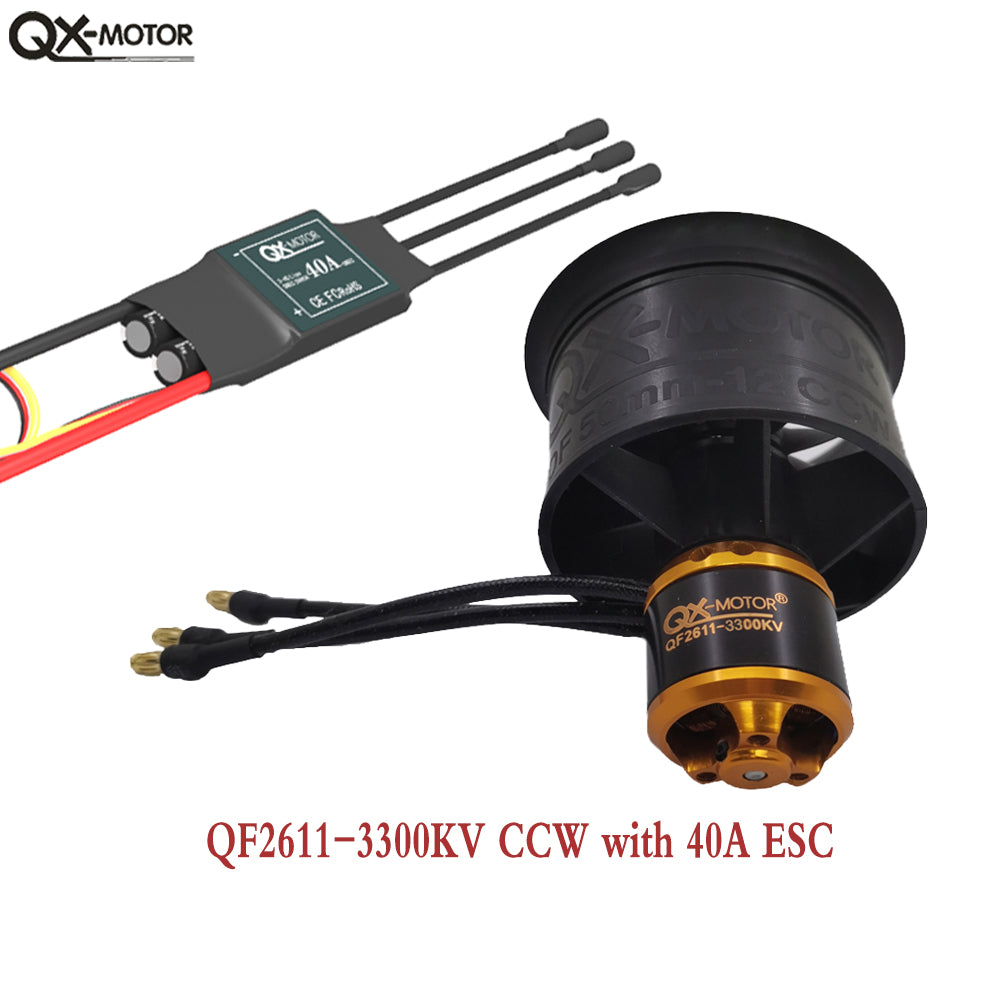

| 16.2 | 22.0 | 356.4 | 750 | 26.46 | 2.10 | 0.07 | QF2611 3300kv | 40A | |

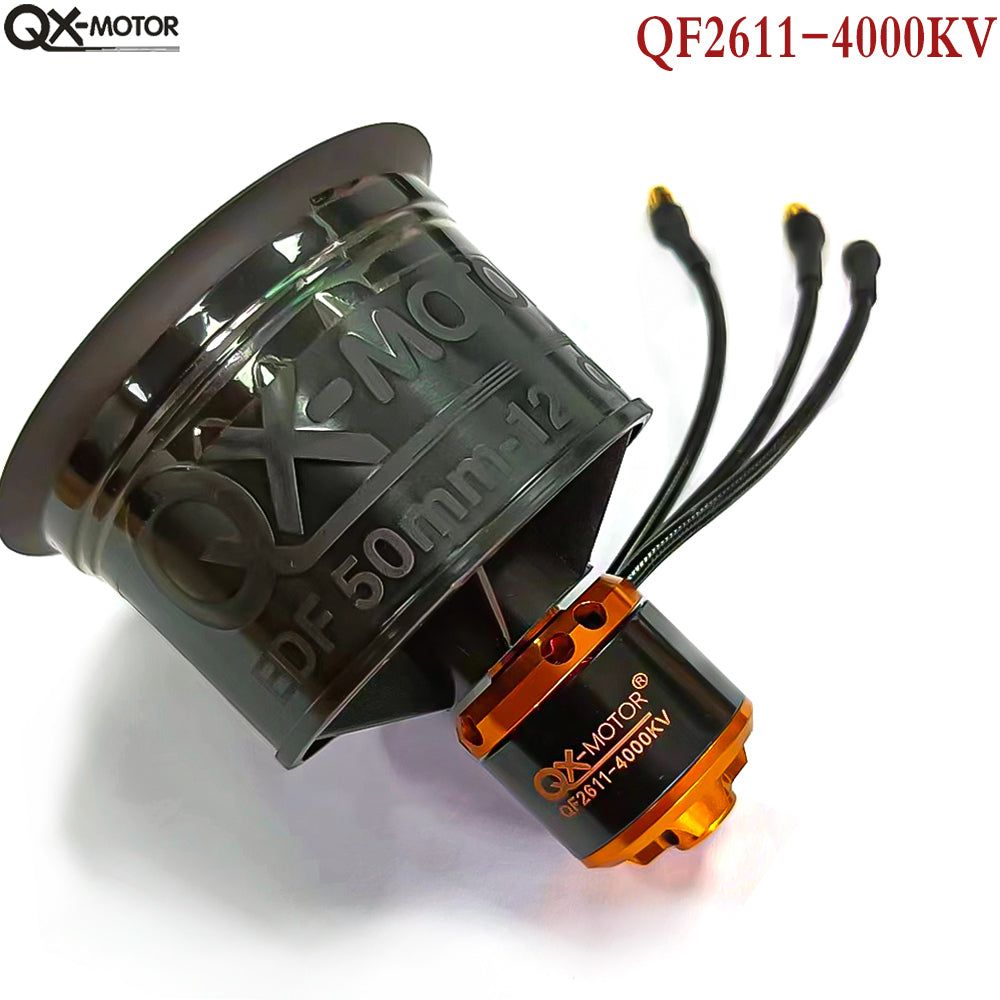

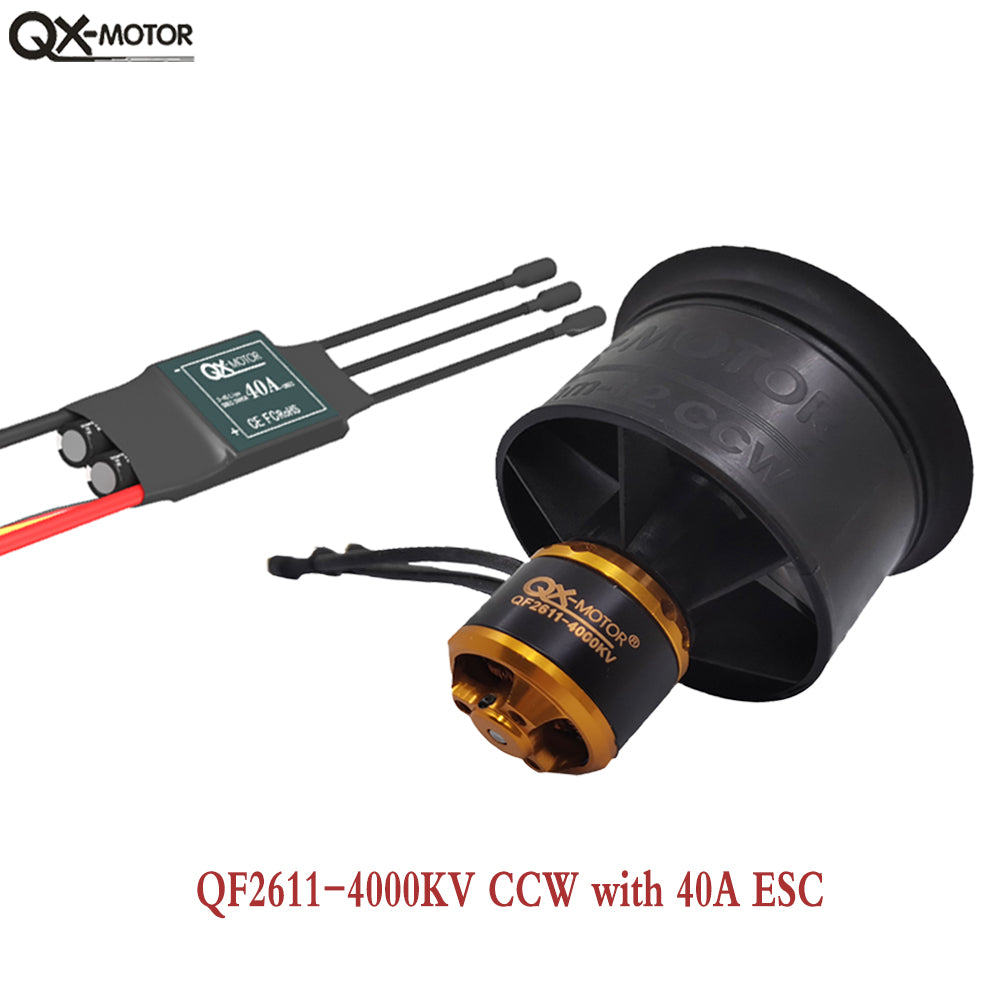

| 16.2 | 34.0 | 550.8 | 950 | 33.51 | 1.72 | 0.06 | QF2611 4000kv | 40A | |
