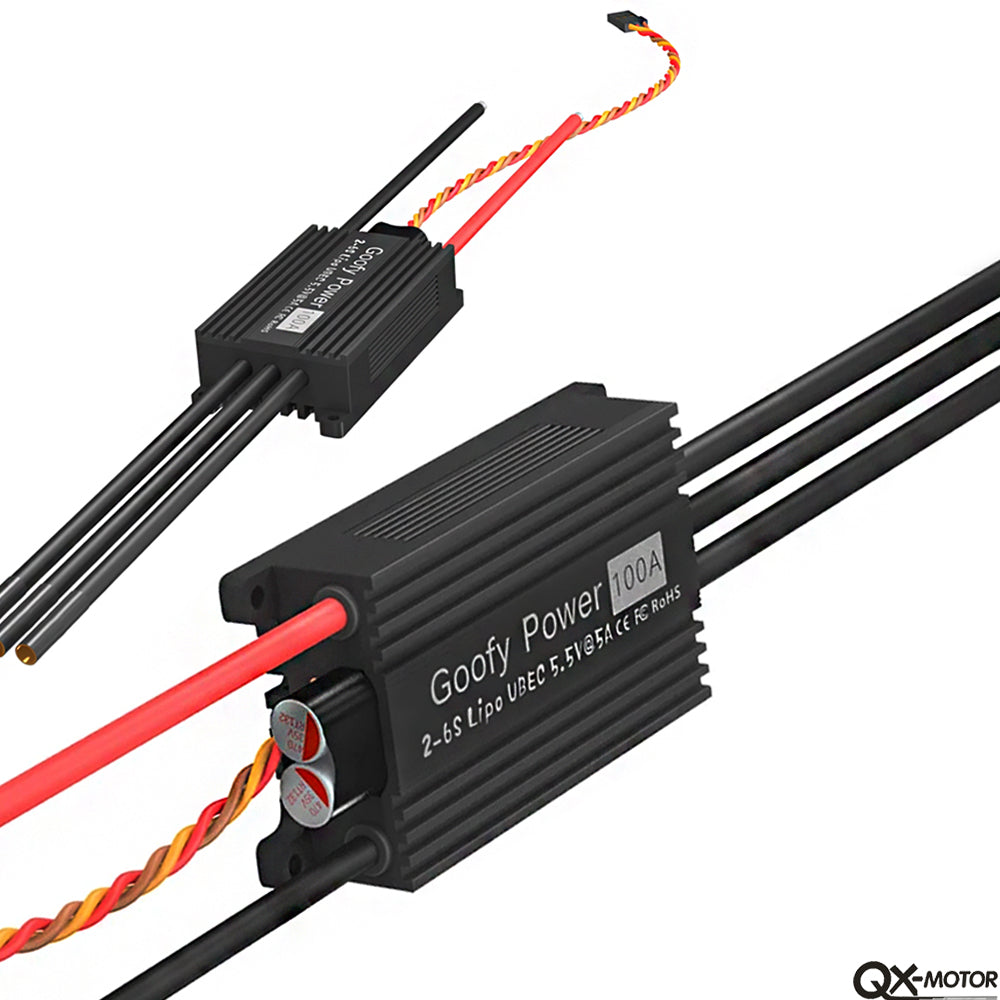

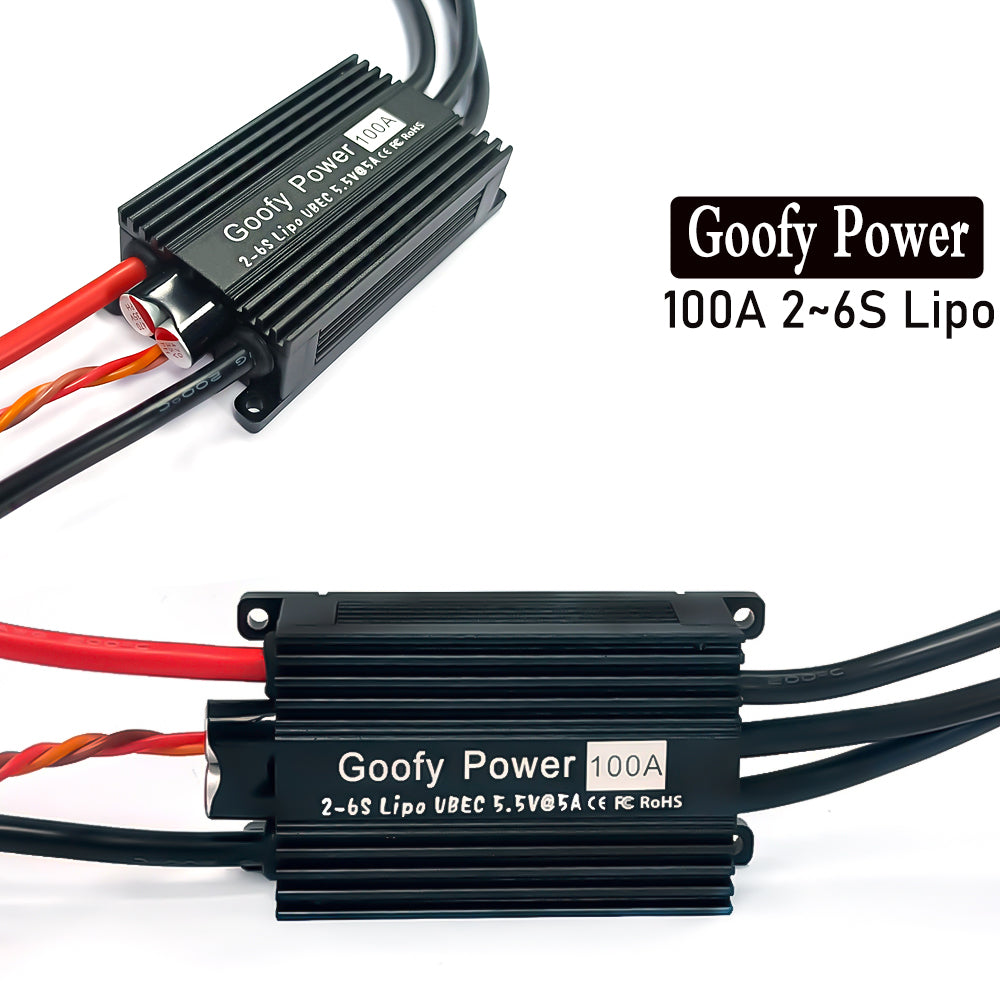

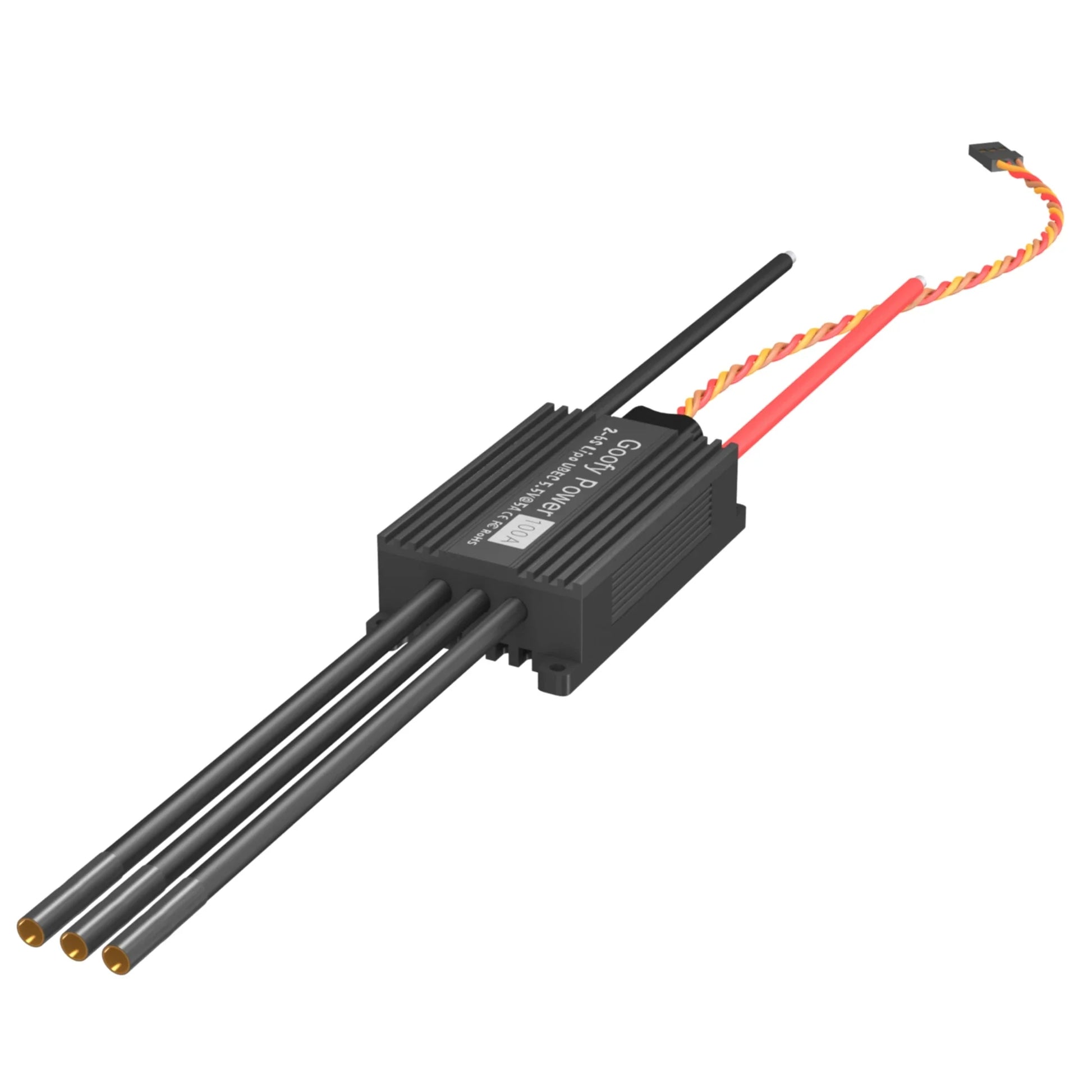

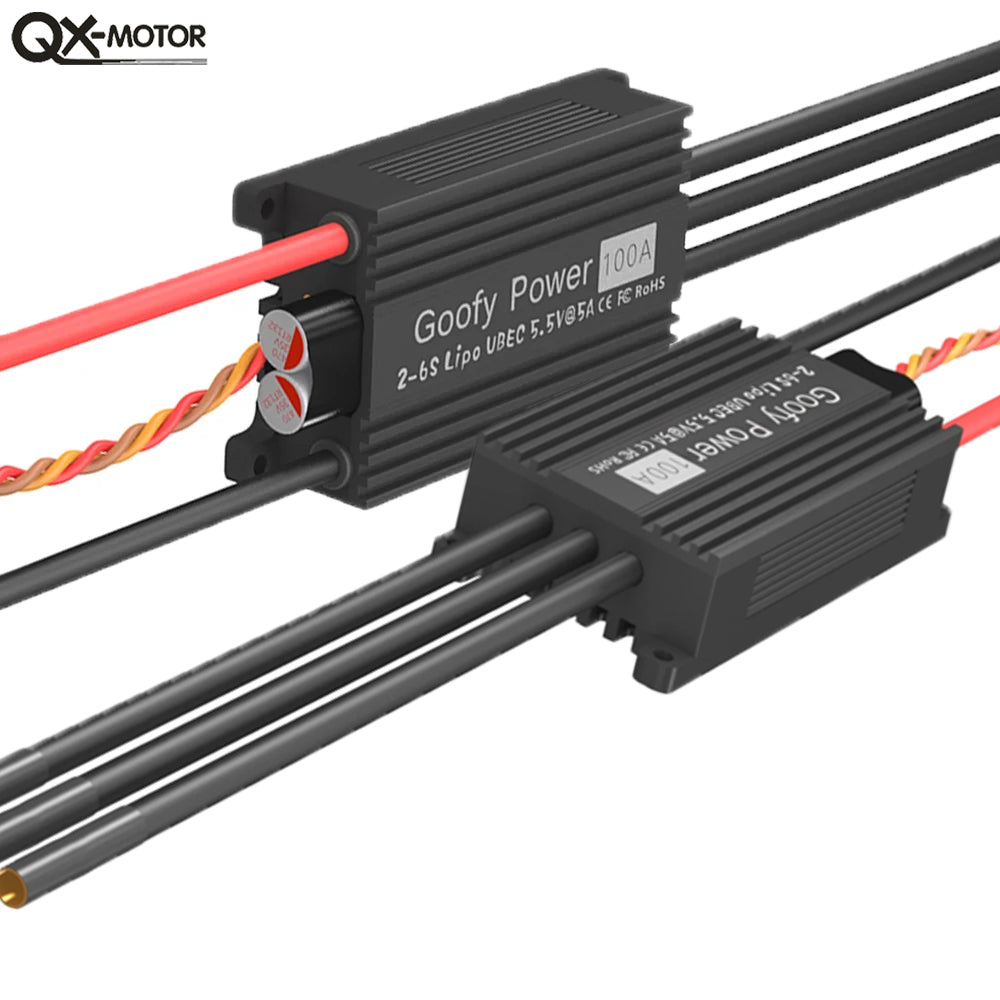

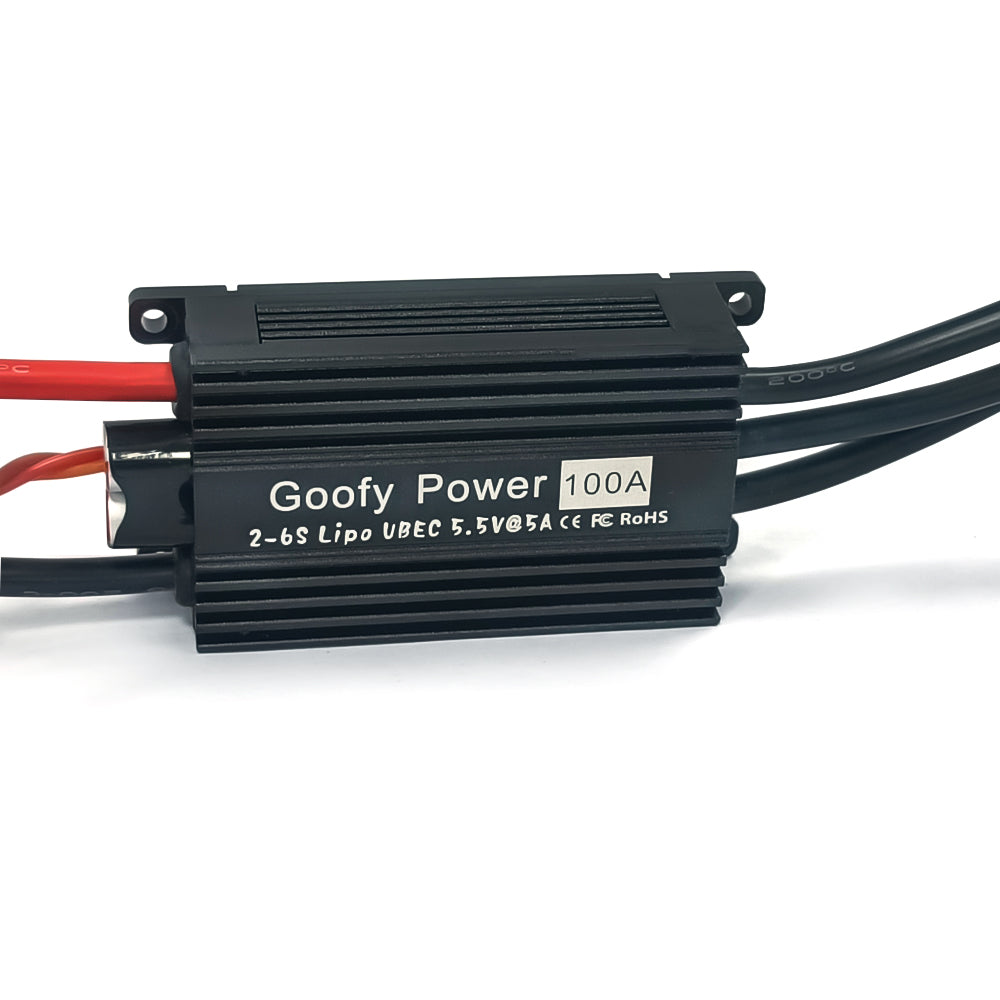

QX-MOTOR brushless speed regulator 100A ESC, high flying power supply with built-in UBEC, suitable for EDF/drone toys/remote control toys

QX-MOTOR brushless speed regulator 100A ESC, high flying power supply with built-in UBEC, suitable for EDF/drone toys/remote control toys

Product Features:

1.32 bit ARM MCU, small size, light weight and rapid running speed.

2.High resolution, smooth and responsive throttle linear. Throttle signal loss protect implemented.

3. Synchronous rectification, regenerative braking, more energy-efficient compared with the other regular ESCs.

4. Automatically detect input signal. Throttle is available for setting to compatible with varies controllers.

5. Good compatibility to motors, it can work well for most motors in the market.

6. Easy to program with programming-card, specially designed for fixed wing, complete independent intellectual property rights with software and can keep on upgrading.

Specification:

1. Continuous Power: 100A

2. Max Power: 120A.

3. Input Lipo: 2~6S

4. BEC Output: 5-8V/10A , programable by programming card

5. PWM Output:8-32KHZ, programable by programming card

6. Throttle width:900us~2400us

7. Max RPM: 300,000 rolls (2poles), 100,000 rolls (6poles), 50,000 rolls (12poles)

8. Weight:116g

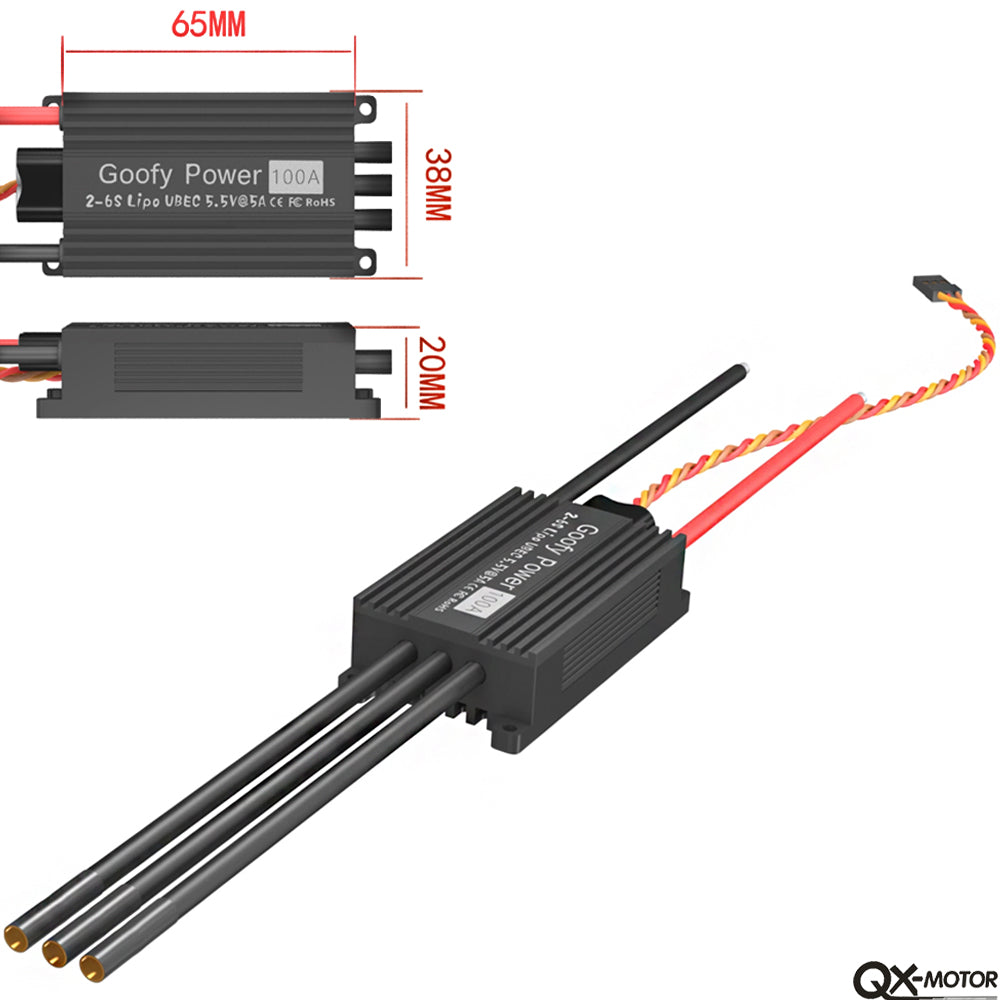

9. Size:65*38*20mm。
